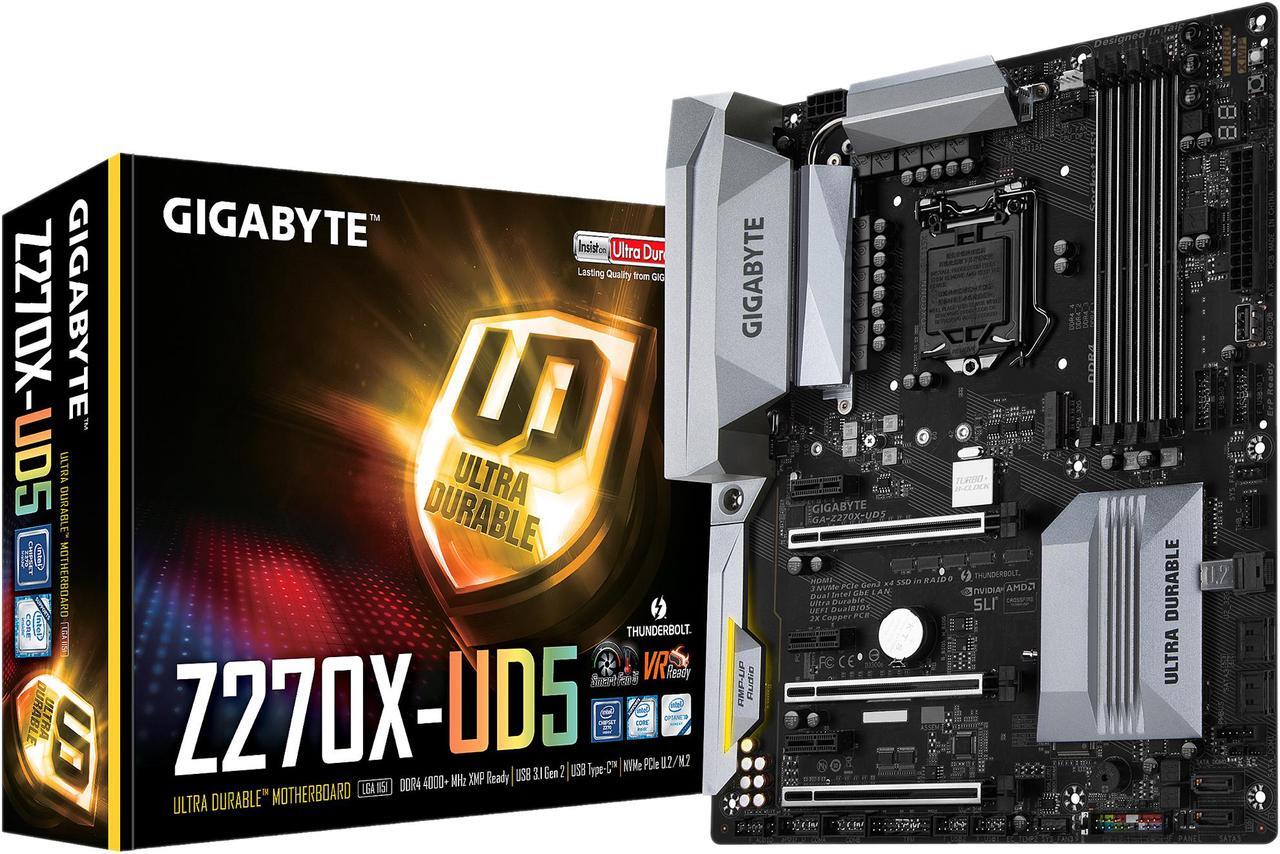

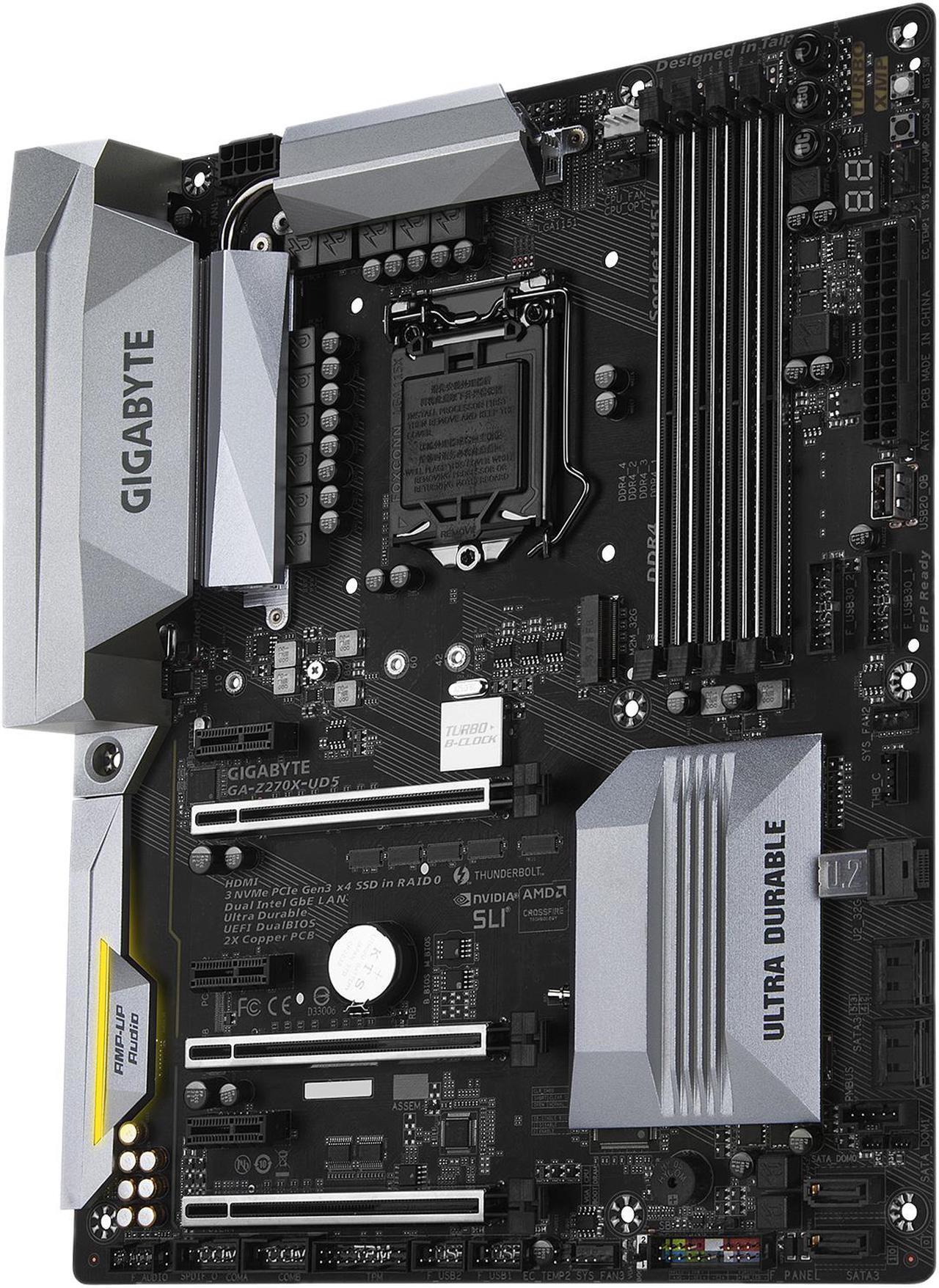

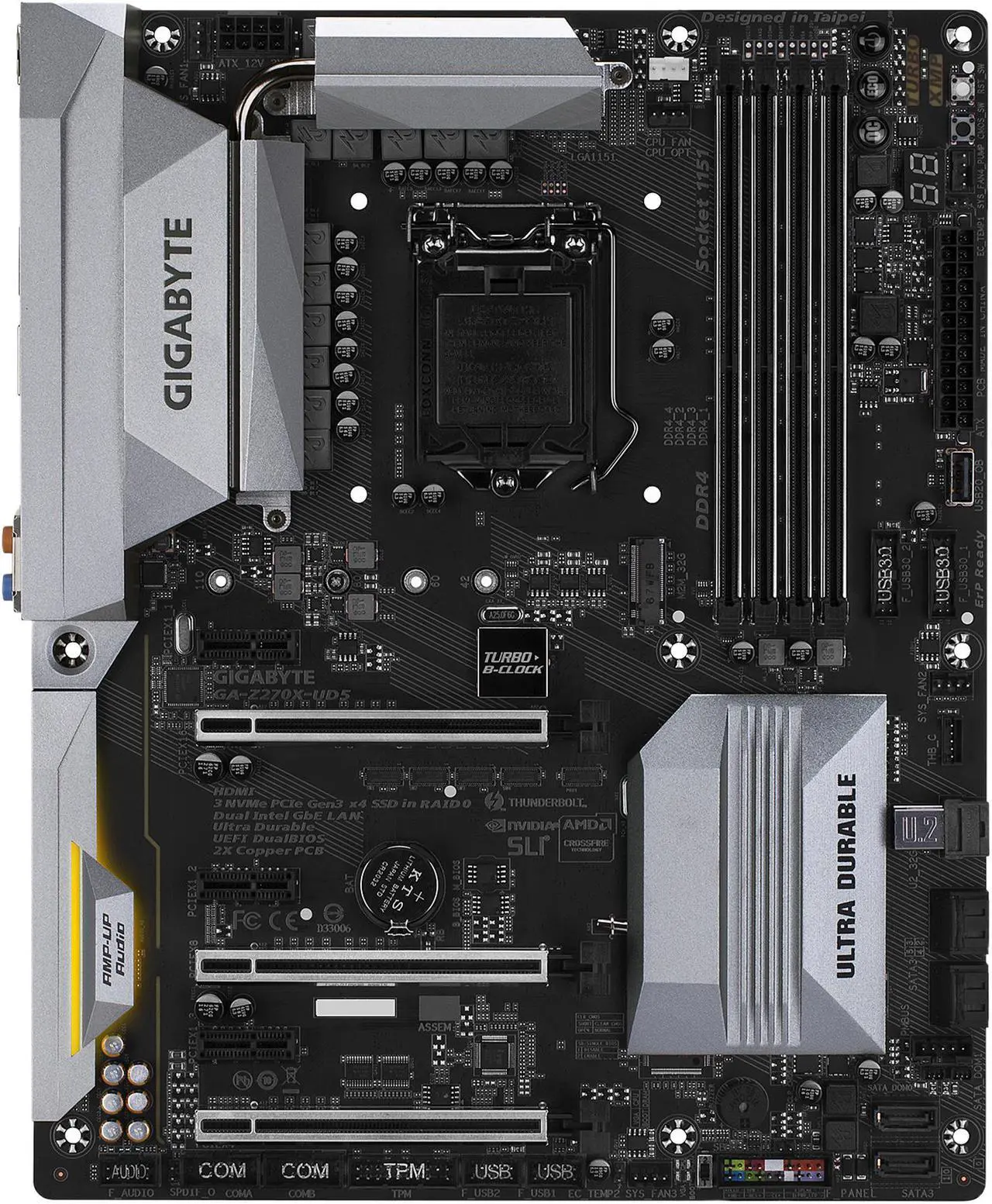

    GIGABYTE GA-Z270X-UD5 (rev. 1.0) LGA 1151 Intel Z270 HDMI SATA 6Gb/s USB 3.1 ATX Motherboards - Intel

    Used - Like New Product Type
    • GA-Z270-HD3
    • GA-Z270-HD3P
    • GA-Z270M-D3H
    • GA-Z270N-WIFI
    • GA-Z270P-D3
    • GA-Z270X-UD3
    • GA-Z270X-UD5
    • Intel Z270
    • Supports 7th/6th Generation Intel Core Processors
    • DDR4 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs

    Learn more about the GIGABYTE GA-Z270X-UD5 (rev. 1.0)

    Model
    Brand GIGABYTE
    Model GA-Z270X-UD5 (rev. 1.0)
    Supported CPU
    CPU Socket Type LGA 1151
    CPU Type Supports 7th/6th Generation Intel Core Processors
    Chipsets
    Chipset Intel Z270
    Onboard Video
    Onboard Video Chipset Integrated Graphics Processor + Intel Thunderbolt 3 Controller:
    1 x Intel Thunderbolt 3 connector, supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 4096x2304@60 Hz
    * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)

    Integrated Graphics Processor - Intel HD Graphics support:
    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version.
    1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
    * Support for HDMI 1.4 version.

    Maximum shared memory of 1GB
    Memory
    Number of Memory Slots 4x288pin (DDR4)
    Memory Standard DDR4 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133
    Maximum Memory Supported 64GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
    1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. When the PCIEX1_2 or PCIEX1_3 slot is populated, the PCIEX4 slot operates at up to x1 mode.
    PCI Express x1 3 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
    Storage Devices
    SATA 6Gb/s 6 x SATA 6Gb/s
    M.2 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
    1 x U.2 connector
    SATA RAID 0/1/5/10
    Onboard Audio
    Audio Chipset Realtek ALC1220
    Audio Channels 2/4/5.1/7.1-channel
    Onboard LAN
    LAN Chipset Intel GbE LAN chips
    Second LAN Chipset Intel GbE LAN chips
    Max LAN Speed 2 x 1Gbps

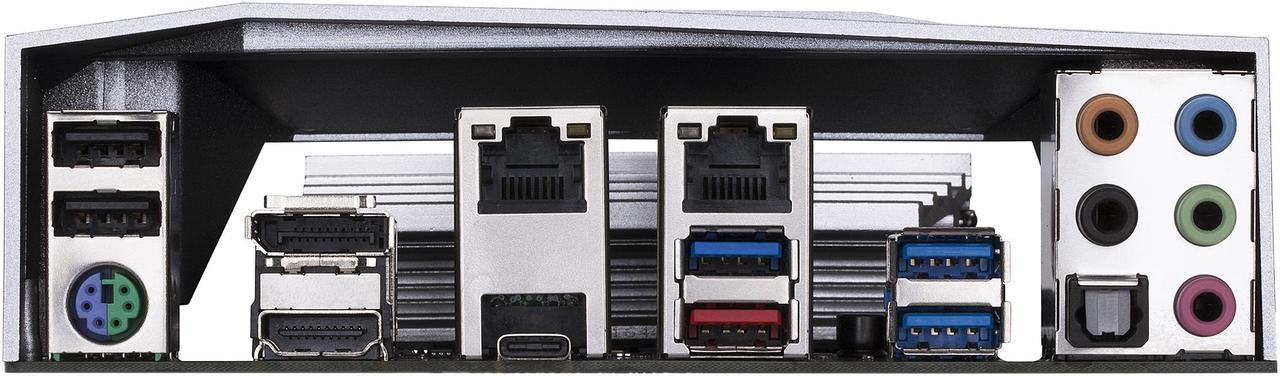

    Rear Panel Ports
    PS/2 1 x PS/2 keyboard/mouse port
    HDMI 1 x HDMI
    RJ45 2 x RJ45
    DisplayPort 1 x DisplayPort
    USB 3.1 1 x Thunderbolt 3 connector (USB Type-C port, with USB 3.1 Gen 2 support)
    3 x USB 3.1 Gen 1 ports
    1 x USB 3.1 Gen 2 Type-A port (red)
    USB 1.1/2.0 2 x USB 2.0
    S/PDIF Out 1 x Optical
    Audio Ports 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
    Internal I/O Connectors
    Onboard USB 2 x USB 3.1 Gen 1 headers
    2 x USB 2.0/1.1 headers
    1 x USB 2.0/1.1 port
    Other Connectors 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x power information detection header
    2 x SATA DOM power connectors
    1 x CPU fan header
    1 x water cooling CPU fan header
    3 x system fan headers
    1 x system fan/water cooling pump header
    2 x temperature sensor headers
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x Trusted Platform Module (TPM) header
    1 x Thunderbolt add-in card connector
    2 x serial port headers
    1 x Clear CMOS jumper
    1 x power button
    1 x reset button
    1 x Clear CMOS button
    1 x DualBIOS switch
    1 x ECO button
    1 x OC button
    Voltage Measurement Points
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 24 Pin
    Features
    Features Multi-Graphics Technology
    - Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
    - Support for AMD Quad-GPU CrossFireX and 3-Way/2-Way AMD CrossFire technologies

    I/O Controller:
    - iTE I/O Controller Chip

    H/W Monitoring:
    - Voltage detection
    - Temperature detection
    - Fan speed detection
    - Overheating warning
    - Fan fail warning
    - Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

    BIOS:
    - 2 x 128 Mbit flash
    - Use of licensed AMI UEFI BIOS
    - Support for DualBIOS
    - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Unique Features:
    - Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    Ambient LED
    AutoGreen
    BIOS Setup
    Color Temperature
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Game Boost
    ON/OFF Charge
    Platform Power Management
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    System Information Viewer
    USB Blocker
    V-Tuner
    - Support for 3TB+ Unlock
    - Support for Q-Flash
    - Support for Xpress Install

    Bundle Software:
    - Norton Internet Security (OEM version)
    - Intel Optane Memory Ready
    - cFosSpeed

    Operating System:
    - Support for Windows 10/8.1 64-bit
    - Support for Windows 7 32-bit/64-bit
    * Operating systems supported may vary depending on your processor model.
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
