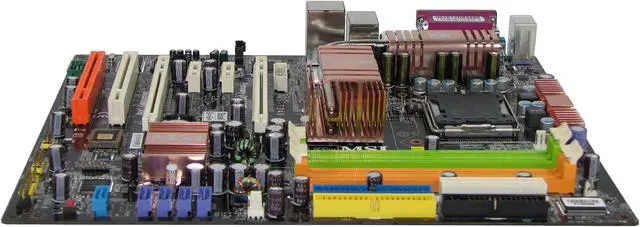

Brand | MSI |
---|---|
Model | 975X Platinum V.2 |
CPU Socket Type | LGA 775 |
---|---|
CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
FSB | 1066/800 MHz |
Supported CPU Technologies | Hyper-Threading Technology |
Chipset | Intel 975X |
---|---|
South Bridge | Intel ICH7 DH |
Onboard Video Chipset | None |
---|
Number of Memory Slots | 4x240pin |
---|---|
Memory Standard | DDR2 533/667/800 |
Maximum Memory Supported | 8GB |
Channel Supported | Dual Channel |
PCI Express x16 | 2 x PCI Express x16 |
---|---|
PCI Express x1 | 2 x PCI Express x1 |
PCI Slots | 2 x PCI Slots |
PATA | 2 x ATA100 up to 3 Devices |
---|---|
SATA RAID | 0/1/0+1 |
Additional RAID Controller | JMB361 |
Audio Chipset | Realtek ALC882M |
---|---|
Audio Channels | 8 Channels |
LAN Chipset | Intel 82573 |
---|---|
Max LAN Speed | 1Gbps |
Back I/O Ports | 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 |
---|---|
PS/2 | 2 |
COM | 1 |
LPT | 1 |
USB 1.1/2.0 | 4 x USB 2.0 |
IEEE 1394 | 1 x IEEE 1394a |
S/PDIF Out | 1 x Coaxial |
Audio Ports | 6 Ports |
Onboard USB | 2 x USB 2.0 connectors support 4 ports |
---|---|
Onboard 1394 | 1 x 1394a connector supports 1 port |
Form Factor | ATX |
---|---|
Dimensions (W x L) | 12.0" x 9.6" |
Power Pin | 24 Pin |
Features | Because of the limitations of chipset, this MB does not support Win98/ME |
---|
Package Contents | 975X Platinum V.2 User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable 4 x SATA Cable 2 x 4-pin to SATA Power Cable USB Bracket IEEE 1394 Bracket CPU Cooler Backplate |
---|
Date First Available | August 03, 2006 |
---|
