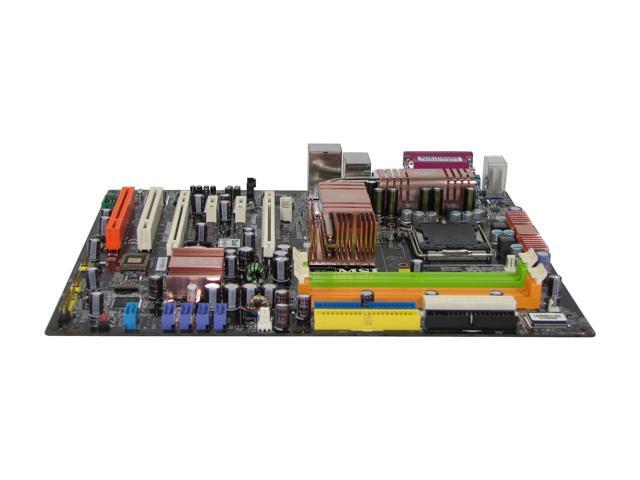

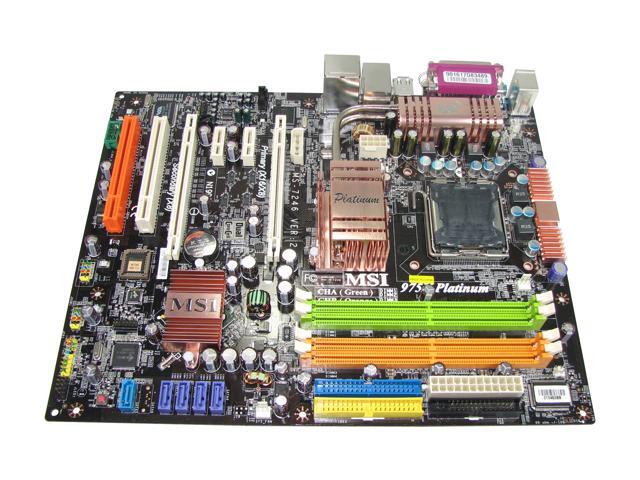

MSI 975X Platinum V.2 LGA 775 Intel 975X ATX Intel Motherboard

OPEN BOX Product Type
OUT OF STOCK.
  • LGA 775
  • Intel 975X
  • 4×240pin DDR2 533/667/800
Specs

Learn more about the MSI 975X Platinum V.2

Model
Brand MSI
Model 975X Platinum V.2
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB 1066/800 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset Intel 975X
South Bridge Intel ICH7 DH
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 533/667/800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 2 x PCI Express x16
PCI Express x1 2 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 2 x ATA100 up to 3 Devices
SATA 3Gb/s 5 x SATA 3Gb/s
SATA RAID 0/1/0+1
Additional RAID Controller JMB361
Onboard Audio
Audio Chipset Realtek ALC882M
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Intel 82573
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 2
COM 1
LPT 1
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
S/PDIF Out 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors support 4 ports
Onboard 1394 1 x 1394a connector supports 1 port
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features Because of the limitations of chipset, this MB does not support Win98/ME
Additional Information
Date First Available September 05, 2006
