Brand | MSI |
---|---|
Model | P6N Diamond |
CPU Socket Type | LGA 775 |
---|---|
CPU Type | Quad-core / Core 2 Extreme / Core 2 Duo / Pentium 4 / Pentium D / Pentium XE / Celeron D |
FSB | 1333/1066 MHz |
Supported CPU Technologies | Hyper-Threading Technology |
Chipset | NVIDIA nForce 680i SLI |
---|---|
South Bridge | nForce 430i |
Onboard Video Chipset | None |
---|
Number of Memory Slots | 4x240pin |
---|---|
Memory Standard | DDR2 800 |
Maximum Memory Supported | 8GB |
Channel Supported | Dual Channel |
PCI Express x16 | 4 (The 4 PCI Express interface will operate at either x8+x8+x16+x8 or x16+x16+x8 mode) |
---|---|
PCI Express x1 | 1 x PCI Express x1 |
PCI Slots | 2 x PCI Slots |
PATA | 1 x ATA100 2 Dev. Max |
---|---|
SATA 3Gb/s | 5 x SATA 3Gb/s |
SATA RAID | NV RAID 0/1/0+1/5 JBOD |
Audio Chipset | Creative Sound Blaster X-Fi Xtreme HD Audio |
---|---|
Audio Channels | 8 Channels |
Max LAN Speed | Dual 10/100/1000Mbps |
---|
PS/2 | 2 |
---|---|
USB 1.1/2.0 | 4 x USB 2.0 |
IEEE 1394 | 1 x IEEE 1394a |
eSATA | 1 x eSATA 3Gb/s |
S/PDIF Out | 1 x Optical, 1 x Coaxial |
Audio Ports | 5 Ports |
Onboard USB | 6 x USB 2.0 |
---|
Form Factor | ATX |
---|---|
Dimensions (W x L) | 12.0" x 9.6" |
Power Pin | 24 Pin |
Features | Supports FSB 533/800/1066/1333 MHz (FSB 1333 requires FSB 1333 CPU and manual FSB adjustment in the BIOS) |
---|

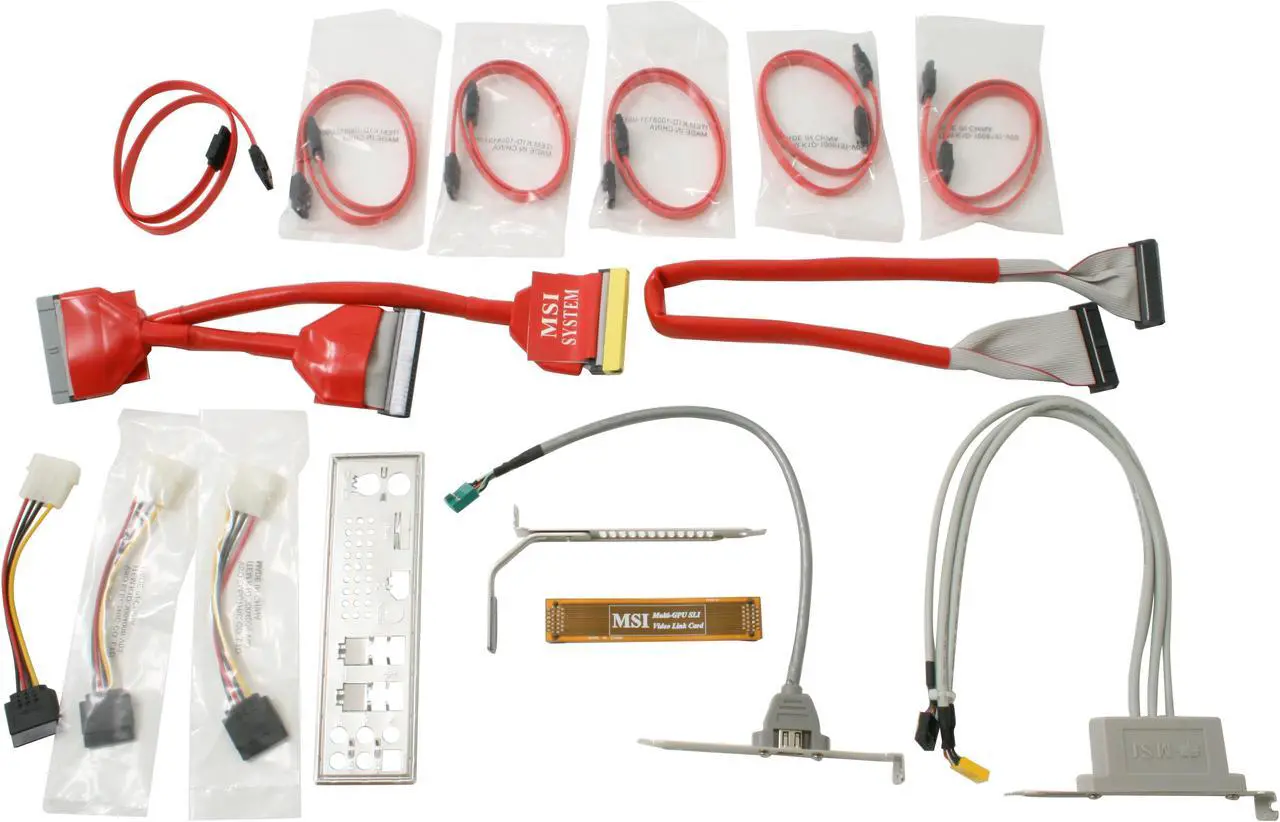

Package Contents | P6N Diamond Driver Disk User Manual 2 x Software Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cables 4-pin to SATA Power Cables SLI Bridge SLI Retention Bracket Brackets |
---|
Date First Available | May 10, 2007 |
---|
Pros: Every setting I could ever want for overclocking in the bios. Solid, everything works as it should. No problems clocking my Q6600 1066fsb up to a 1333fsb and getting the equivalent of a QX6850 (price difference, about 1k :D). Allows changing voltages on things It didn't even occur to me to change before, and in nice small increments. Supports 1000Mhz HT. Does support 1333 CPUs even with bios 1.1 (set the fsb manually), but upgrading to 1.2 wasn't a problem with a bootable thumb drive. The onboard X-Fi works beatifully. It's true, if you try to install a driver from creative for it, it reports that no supported hardware is found. But the driver disk that comes with it supports everything including Vista x64 and XP x64. It beats the heck out of any other onboard sound card. It's even black to match everything else :). Comes with enough cables to use up every plug in it. Nice bonus feature. The reset jumper has been replaced with a button! very nice when experiment
Cons: Posts so fast I have to hit delete when it beeps before anything comes up on screen to get into the bios. No chance to see anything but a flicker of the nice post graphic :).
Overall Review: I used to go with only ASUS, then ASUS went down hill. I've been trying other brands to find a new favorite. This is my first MSI but if they keep this up, they're going to become my new favorite.
