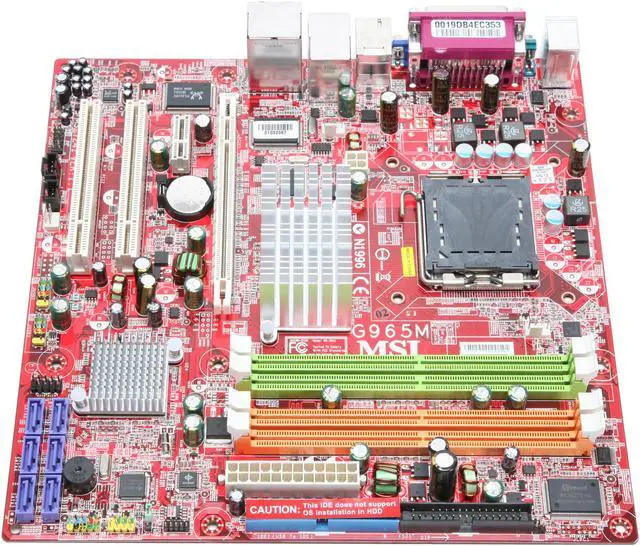

Main image of MSI G965M-FIR LGA 775 Intel G965 Express Micro ATX Intel Motherboard

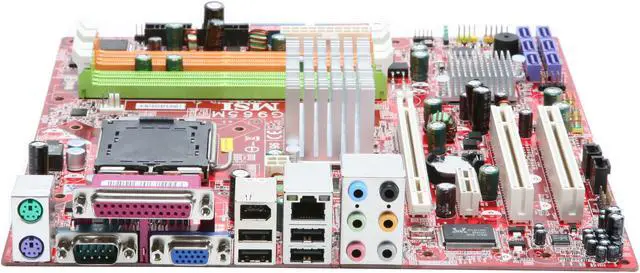

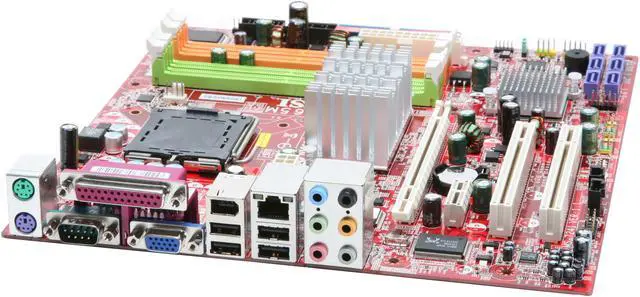

Alt view image 2 of 6 - MSI G965M-FIR LGA 775 Intel G965 Express Micro ATX Intel Motherboard

Alt view image 3 of 6 - MSI G965M-FIR LGA 775 Intel G965 Express Micro ATX Intel Motherboard

Alt view image 4 of 6 - MSI G965M-FIR LGA 775 Intel G965 Express Micro ATX Intel Motherboard

Alt view image 5 of 6 - MSI G965M-FIR LGA 775 Intel G965 Express Micro ATX Intel Motherboard

Alt view image 6 of 6 - MSI G965M-FIR LGA 775 Intel G965 Express Micro ATX Intel Motherboard

Shop All MSI Products

MSI G965M-FIR LGA 775 Intel G965 Express Micro ATX Intel Motherboard

(3) Write a Review

Intel G965 Express
Core 2 Duo / Pentium D / Pentium 4 / Pentium XE / Celeron D
DDR2 800

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (3)

Any questions? Our AI beta will help you find out quickly.

Try me now

The G965M-FIR Desktop Board is based on Intel G965 chipset for optimal system efficiency. Designed to fit the advanced Intel Core 2 Duo, Pentium 4, Pentium D and Celeron D processor, the G965 deliver a high performance and professional desktop platform solution.

Model
Brand	MSI
Model	G965M-FIR

Supported CPU
CPU Socket Type	LGA 775
CPU Type	Core 2 Duo / Pentium D / Pentium 4 / Pentium XE / Celeron D
FSB	1066/800 MHz
Supported CPU Technologies	Hyper-Threading Technology

Chipsets
Chipset	Intel G965 Express
South Bridge	Intel ICH8R

Onboard Video
Onboard Video Chipset	Intel GMA X3000

Memory
Number of Memory Slots	4x240pin
Memory Standard	DDR2 800
Maximum Memory Supported	Supports up to 8GB memory size (with DDR2 800, memory only up to 4GB)
Channel Supported	Dual Channel

Expansion Slots
PCI Express x16	1 x PCI Express x16
PCI Express x1	1 x PCI Express x1
PCI Slots	2 x PCI Slots

Storage Devices
PATA	1 x ATA100 2 Dev. Max
SATA RAID	0/1/0+1/5

Onboard Audio
Audio Chipset	Realtek ALC883
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek 8110SC
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	2 x PS/2 / 4 x USB 2.0/1.1
PS/2	2
COM	1
LPT	1
Video Ports	D-Sub
USB 1.1/2.0	4 x USB 2.0
IEEE 1394	1 x IEEE 1394a
Audio Ports	6 Ports

Internal I/O Connectors
Onboard USB	4 x USB 2.0

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.5" x 9.5"
Power Pin	24 Pin

Features
Features	Notice: Only DDR2-800 memory supporting JEDEC approved 1.8V operation with timings of 5-5-5 or 6-6-6 is supported on Intel Desktop Boards based on Intel 965 Express Chipsets.

Packaging

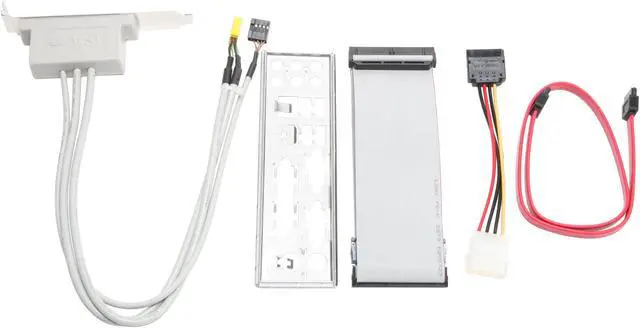

Package Contents	G965M-FIR Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable 4-pin to SATA Power Cable USB Bracket

Details
Windows Vista	Certified for Windows Vista

Additional Information
First Listed on Newegg	March 14, 2007
