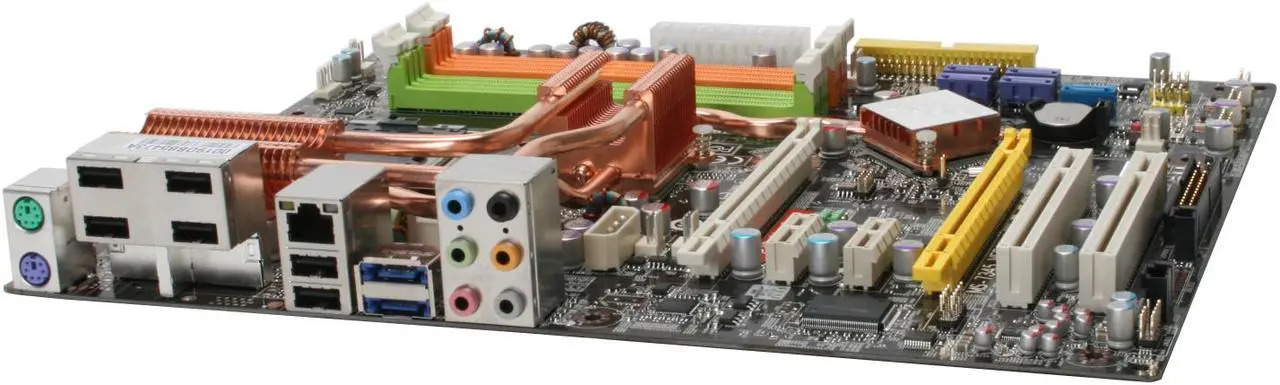

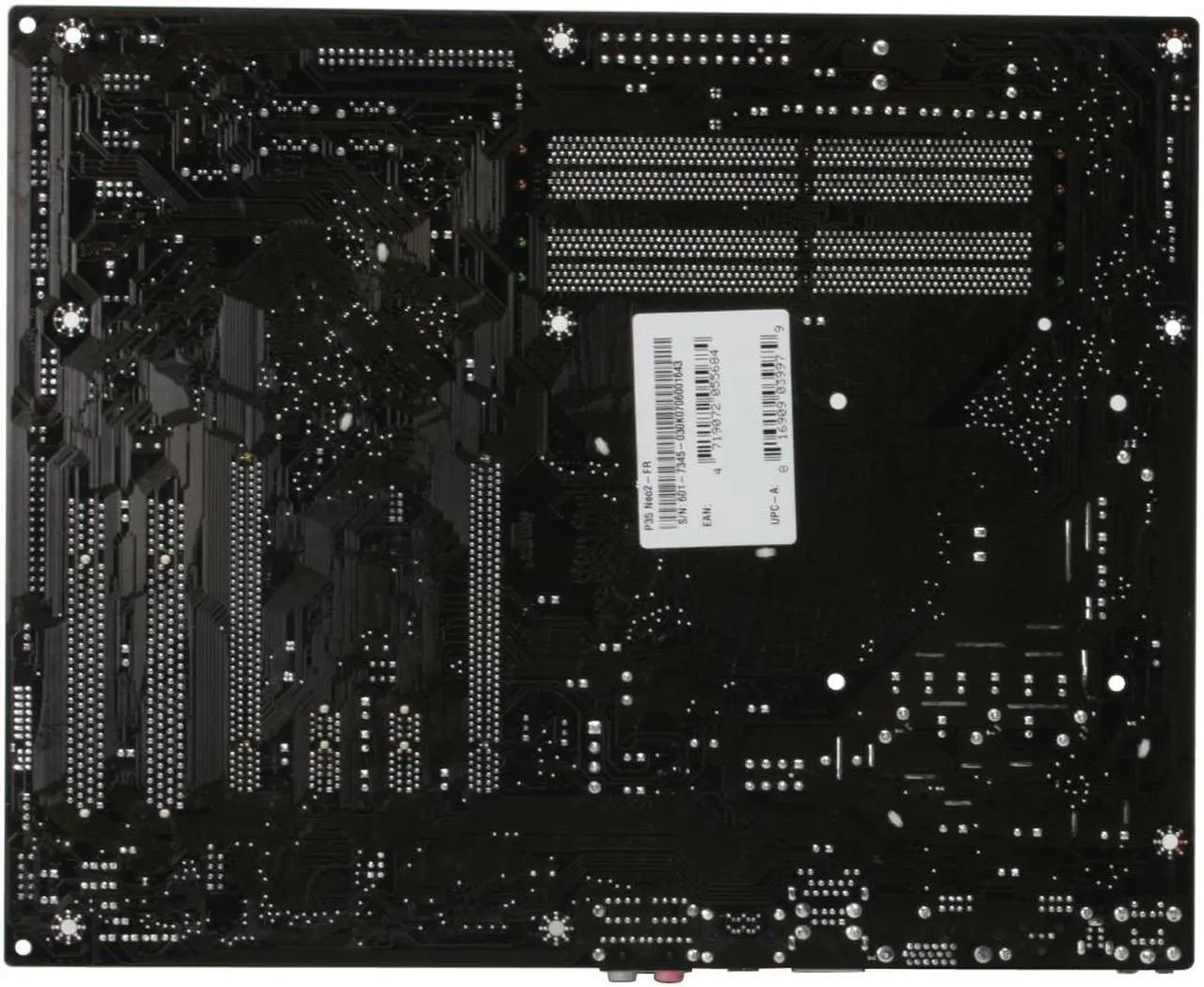

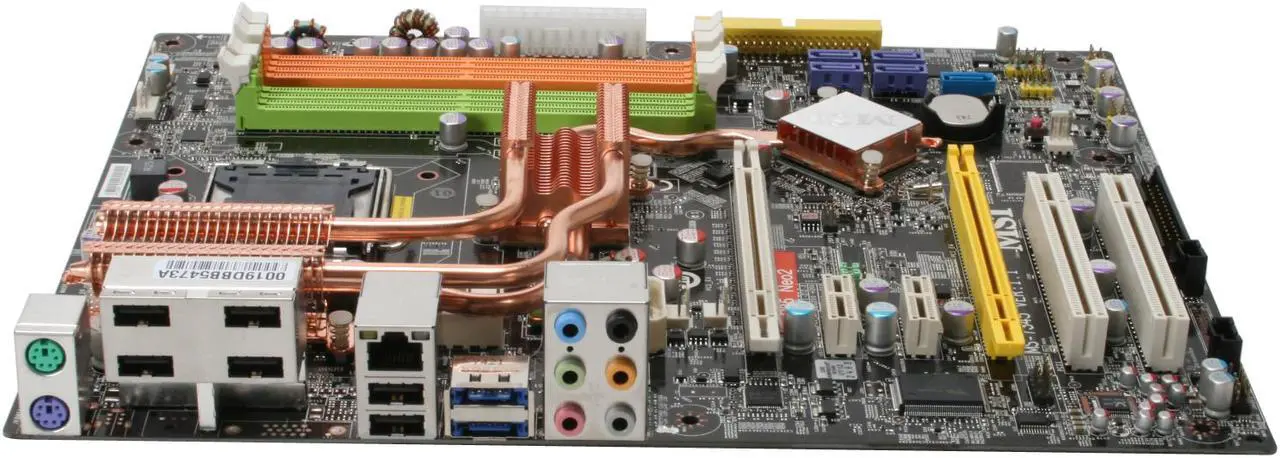

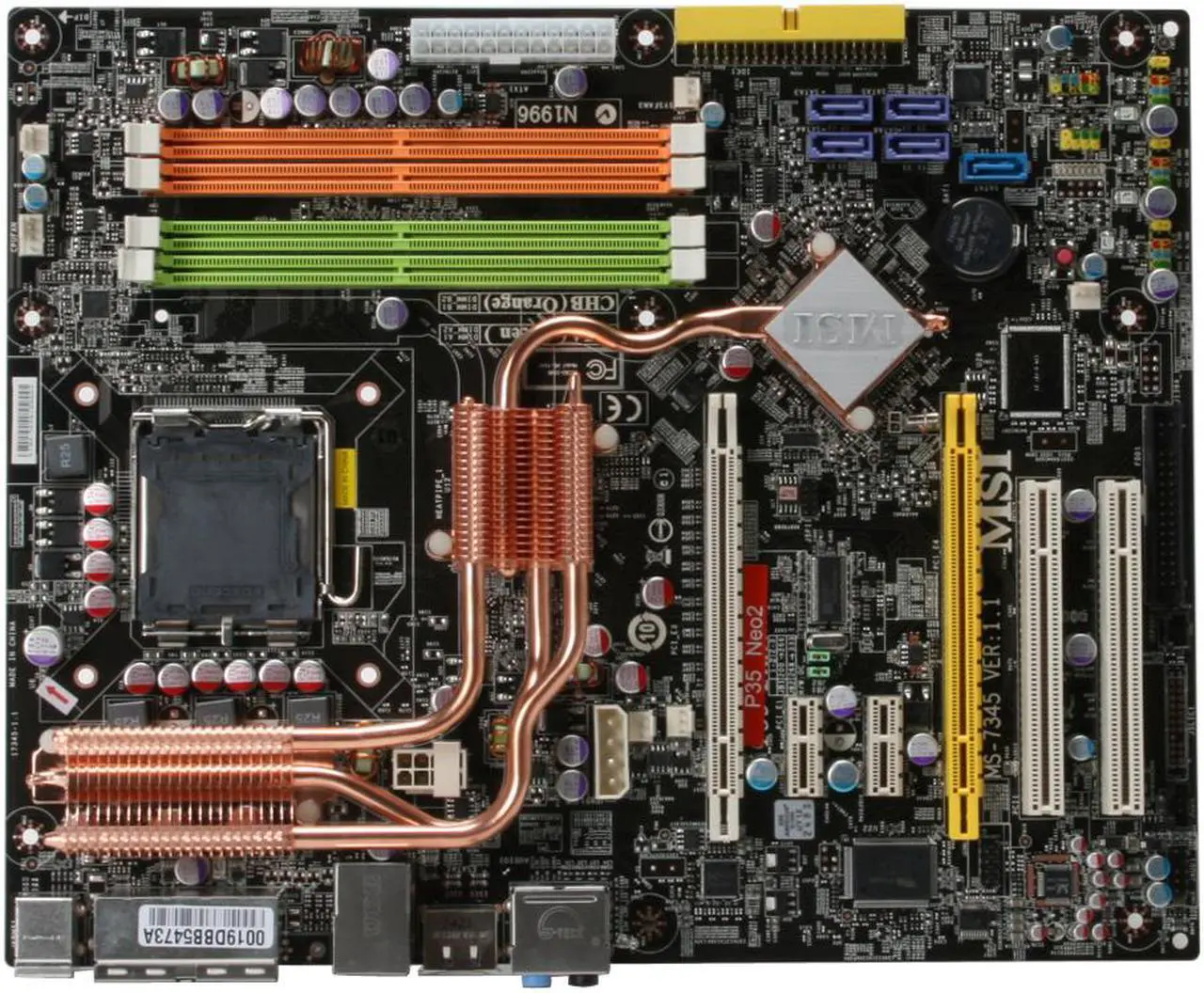

MSI P35 Neo2-FR LGA 775 Intel P35 ATX Intel Motherboard

(148) Write a Review
  • Intel P35
  • Core 2 Duo / Core 2 Extreme / Core 2 Quad
  • DDR2 1066
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (148)

Learn more about the MSI P35 Neo2-FR

Model
Brand MSI
Model P35 Neo2-FR
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Duo / Core 2 Extreme / Core 2 Quad
FSB 1333/1066 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset Intel P35
South Bridge Intel ICH9R
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 1066
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 2 x PCI Express x16 slots with 1x16 and 1x4 operations
PCI Express x1 2 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC888T
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111B
Max LAN Speed 1Gbps
Rear Panel Ports
PS/2 2
USB 1.1/2.0 6 x USB 2.0
eSATA 2 x eSATA 3Gb/s
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging
Package Contents P35 Neo2-FR
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
2 x SATA Cable
2 x 4-pin to SATA Power Cable
USB Bracket
Details
Windows Vista Certified for Windows Vista
Additional Information
Date First Available June 20, 2007
