MSI K9N Neo-F V.3 AM2 NVIDIA nForce 560 MCP ATX AMD Motherboard
- NVIDIA nForce 560 MCP
- Athlon 64 X2 / Athlon 64 FX / Athlon 64
- DDR2 800
Specs
Reviews (46)
Learn more about the MSI K9N Neo-F V.3
| Brand | MSI |
|---|---|
| Model | K9N Neo-F V.3 |
| CPU Socket Type | AM2 |
|---|---|
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| FSB | 1000 MHz |
| Chipset | NVIDIA nForce 560 MCP |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/0+1/5 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| Max LAN Speed | 1Gbps |
|---|

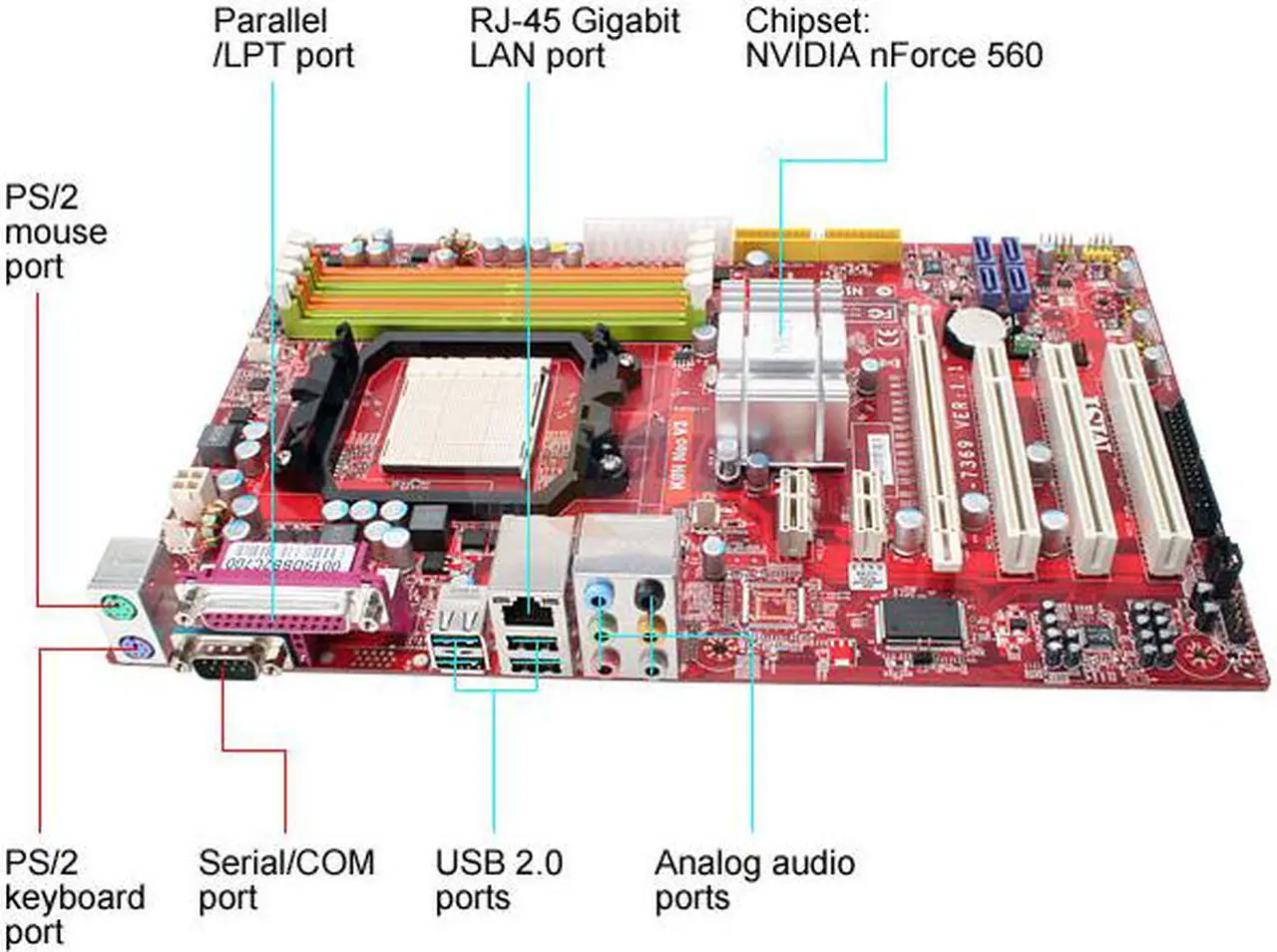

| Back I/O Ports | 1 x COM (Serial Port) / 1 x LPT (Parallel Port) / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 6 Ports |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 7.8" |

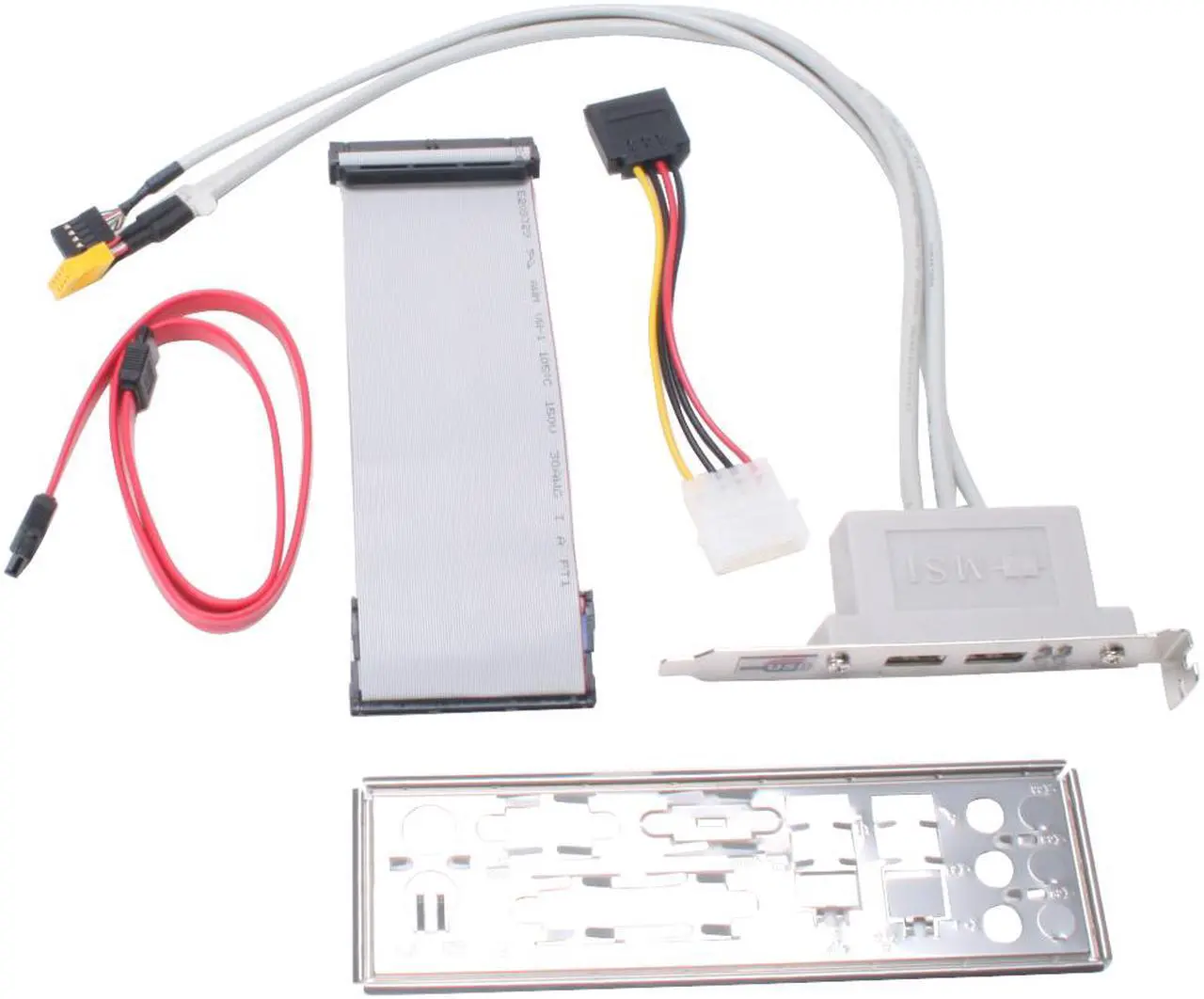

| Package Contents | K9N Neo-F V.3 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable 4-pin to SATA Power Cable USB Bracket |
|---|
| Windows Vista | Certified for Windows Vista |
|---|
| Date First Available | July 18, 2007 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-626-913-0828
- Support Website
- View other products from MSI
