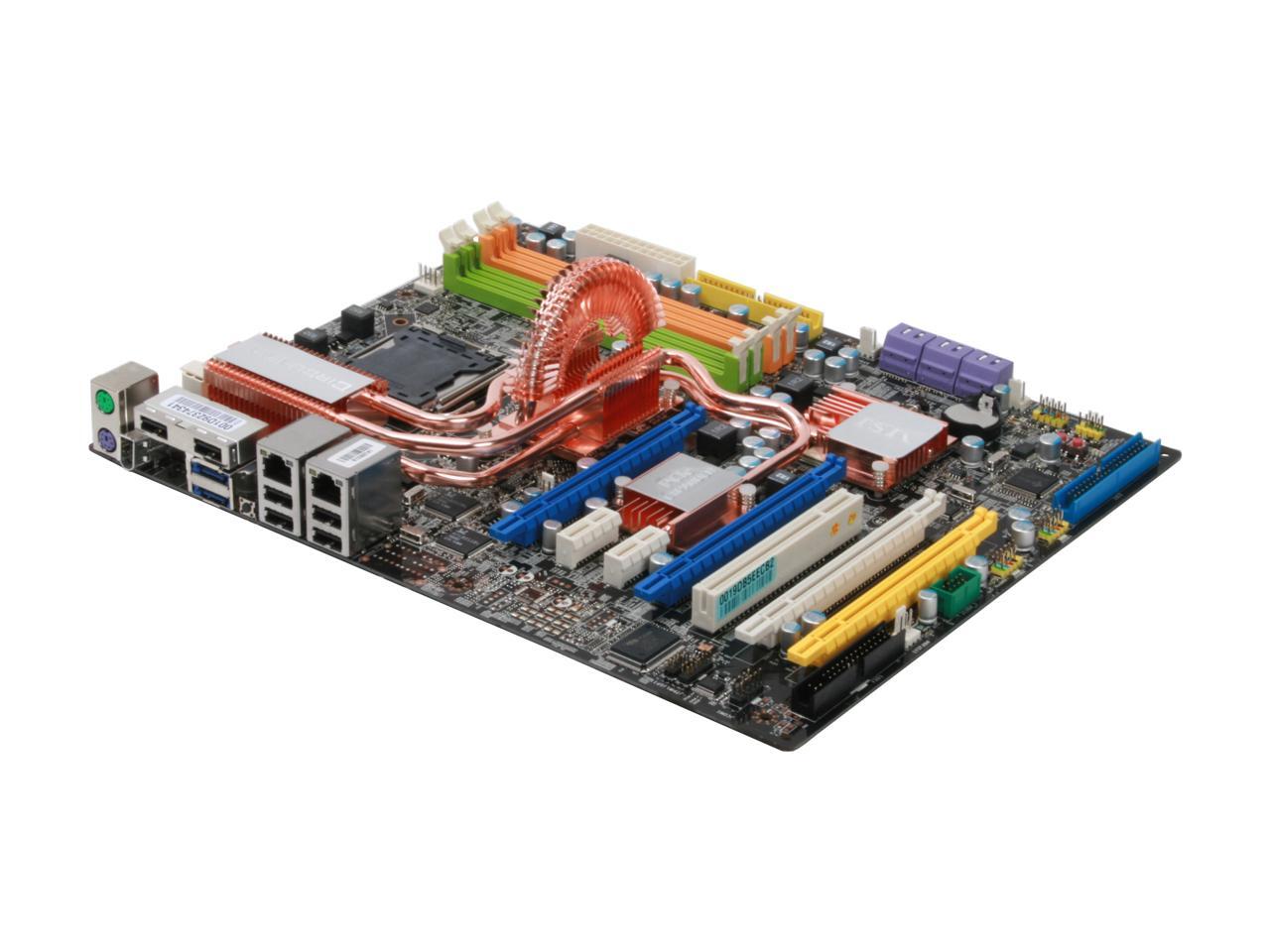

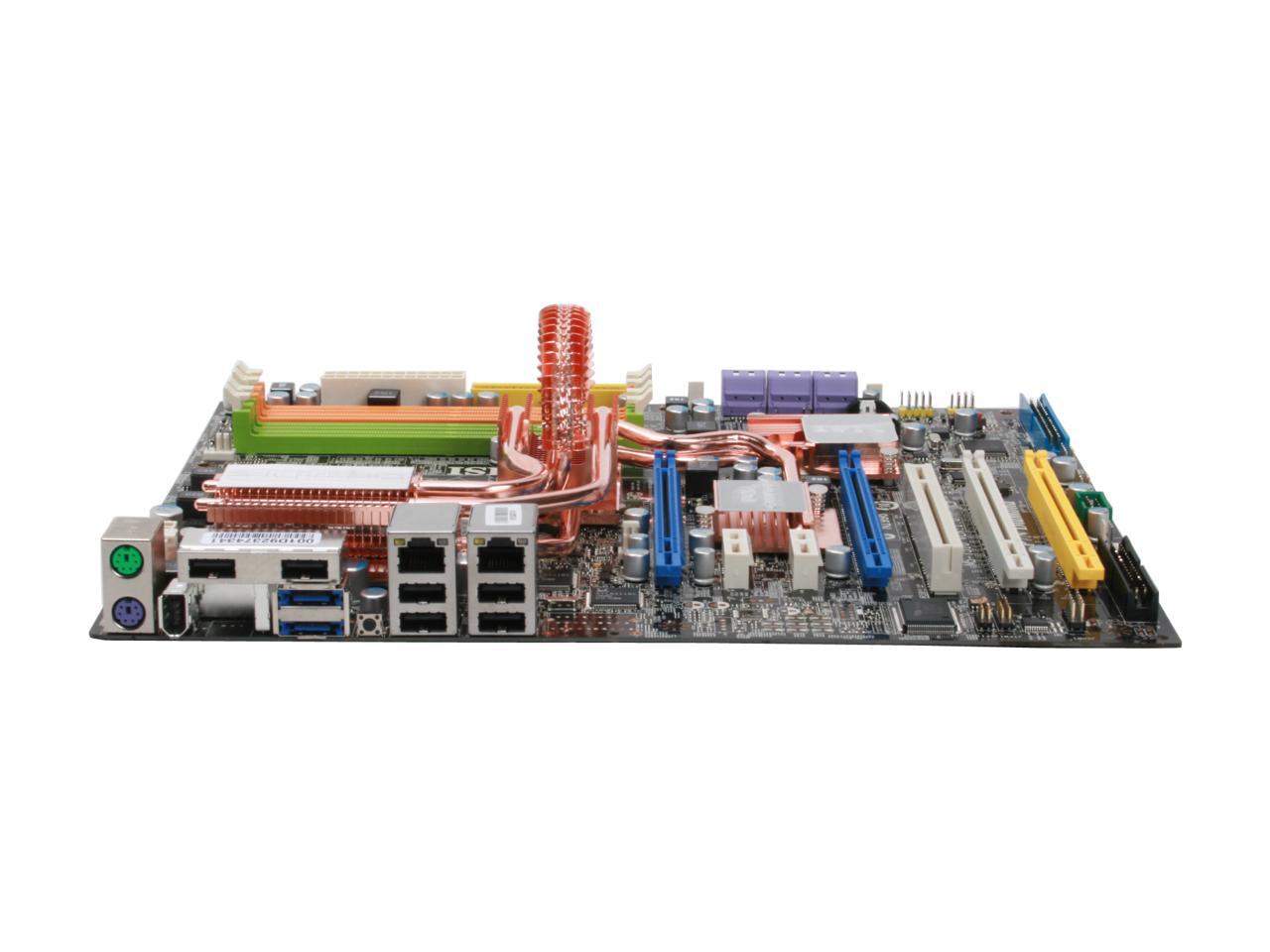

The P7N Diamond Desktop Board delivers a high performance and professional desktop platform solution.
Learn more about the MSI P7N Diamond
Model
Brand
MSI
Model
P7N Diamond
Supported CPU
CPU Socket Type
LGA 775
CPU Type
Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB
1333/1066 MHz
Chipsets
Chipset
NVIDIA nForce 780i SLI
Onboard Video
Onboard Video Chipset
None
Memory
Number of Memory Slots
4x240pin
Memory Standard
DDR2 1066
Maximum Memory Supported
8GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 2.0 x16
2 (1x16+1x8)
PCI Express x16
2 x PCI Express x16
PCI Express x1
2 x PCI Express x1
PCI Slots
1 x PCI Slot
Storage Devices
PATA
2 x ATA100 4 Dev. Max
SATA RAID
NV RAID 0/1/0+1/5 JBOD
Onboard Audio
Audio Chipset

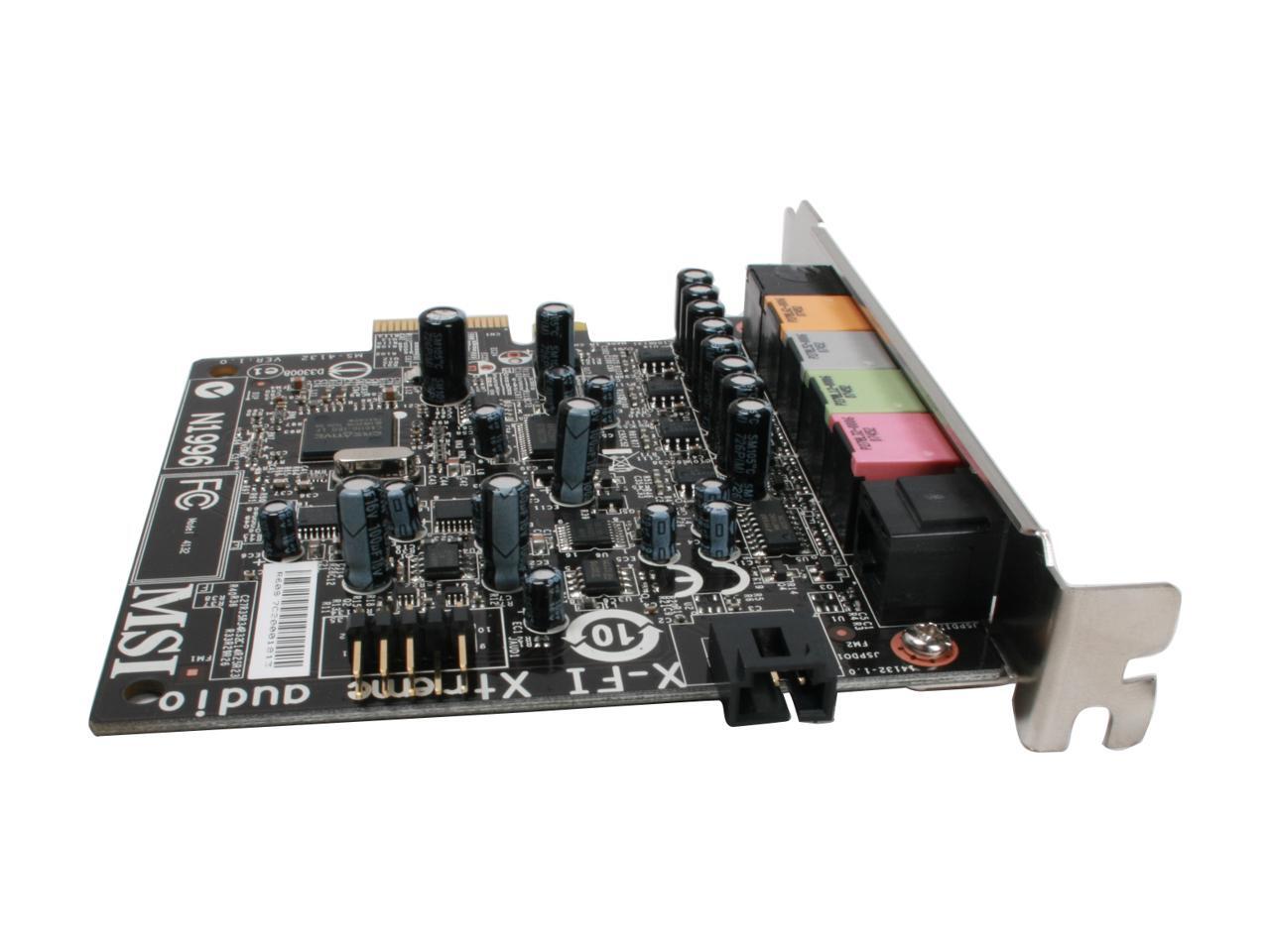

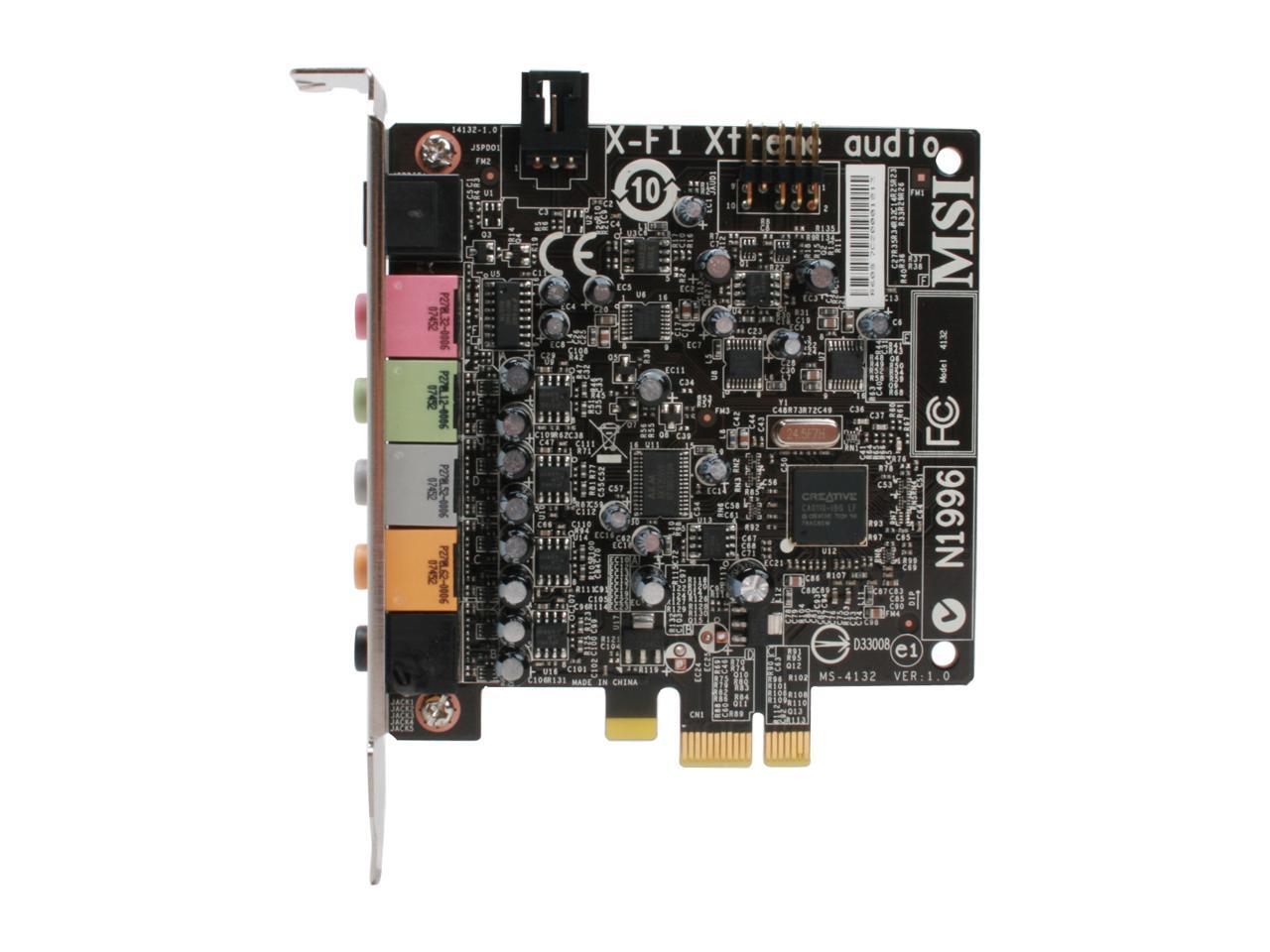

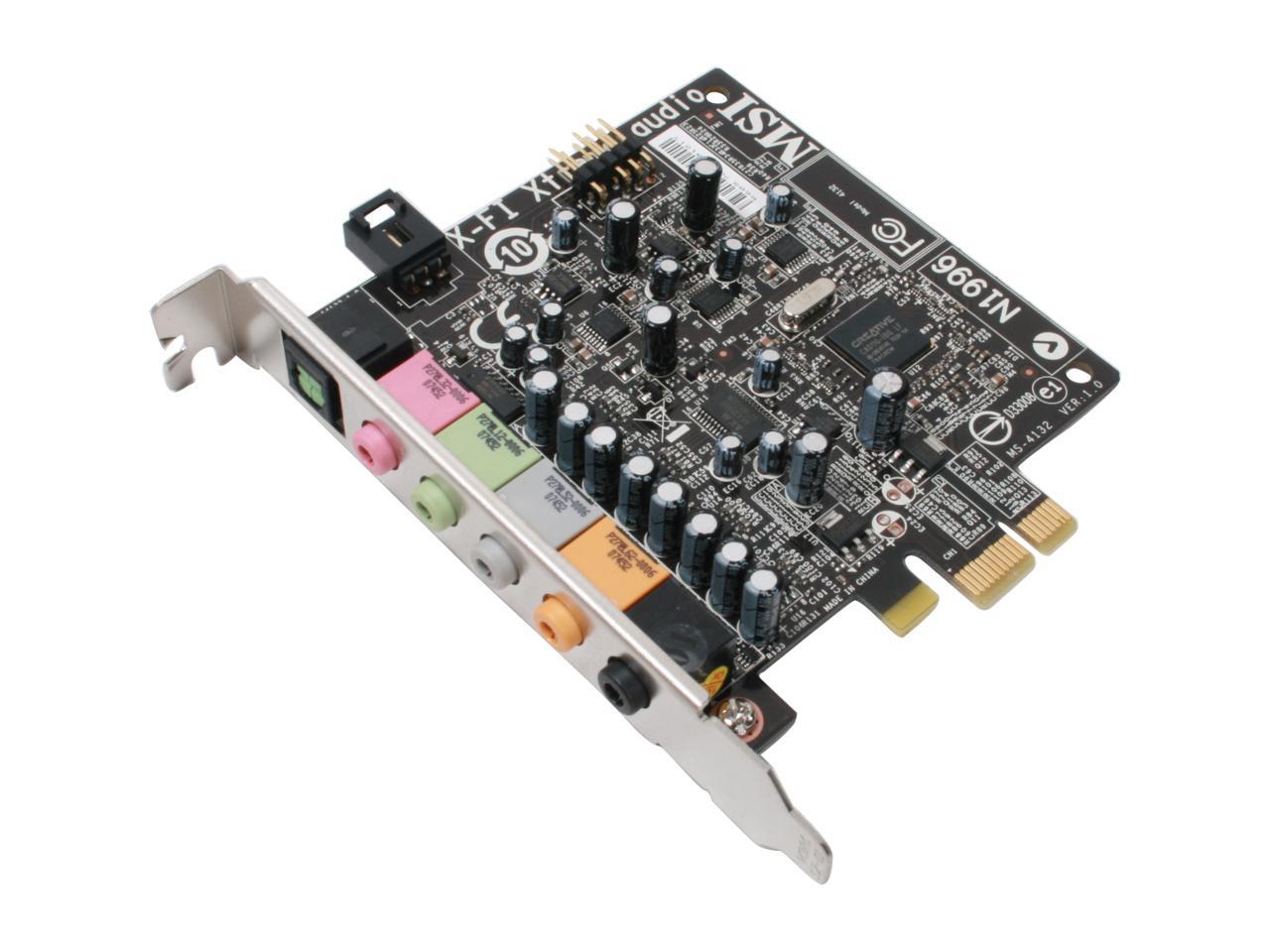

Creative X-Fi CA0110-IBG
Audio Channels

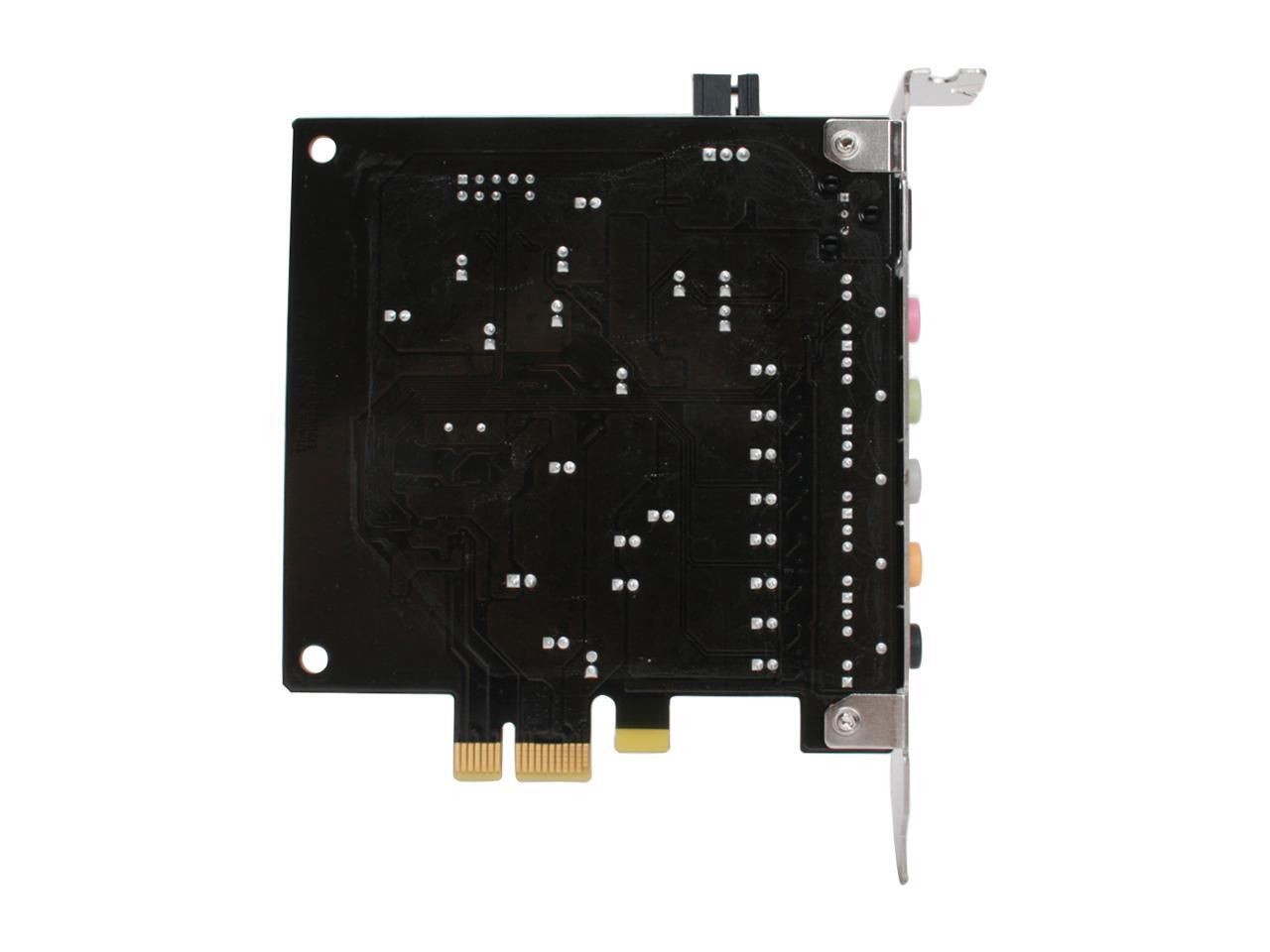

Creative SoundBlaster X-Fi Xtreme Audio Card (8 Channel HD Audio)
Onboard LAN
Max LAN Speed
2 x 1Gbps
Rear Panel Ports
PS/2
2
USB 1.1/2.0
6 x USB 2.0
IEEE 1394
1 x IEEE 1394a
eSATA
2 x eSATA 3Gb/s
S/PDIF Out
1 x Optical

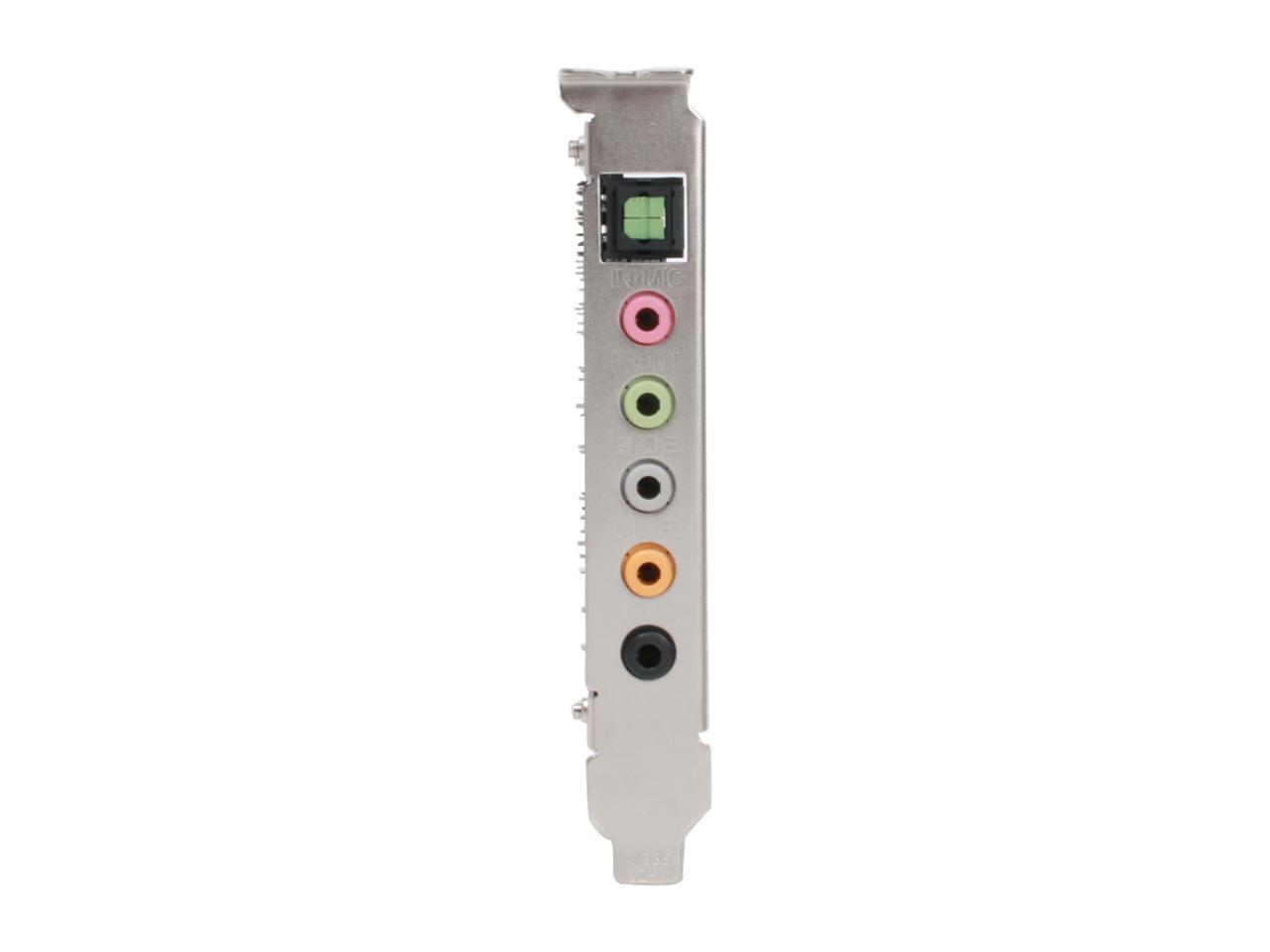

Audio Ports
5 Ports
Internal I/O Connectors
Onboard USB
4 x USB 2.0
Onboard 1394
1 x 1394a
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
24 Pin
Features
Features
Supports Intel 45nm multi-core processors Dual Channel PWM High Efficiency Power Design MSI Circu-Pipe Thermal Module Hi-Conductive Polymerized Capacitor 3-Way SLI Ready TPM (Trust Platform Module) Capable Green Power Design MSI DOT (Dynamic Overclocking Technology) MSI Dual Core Center Monitoring System
Packaging
Package Contents

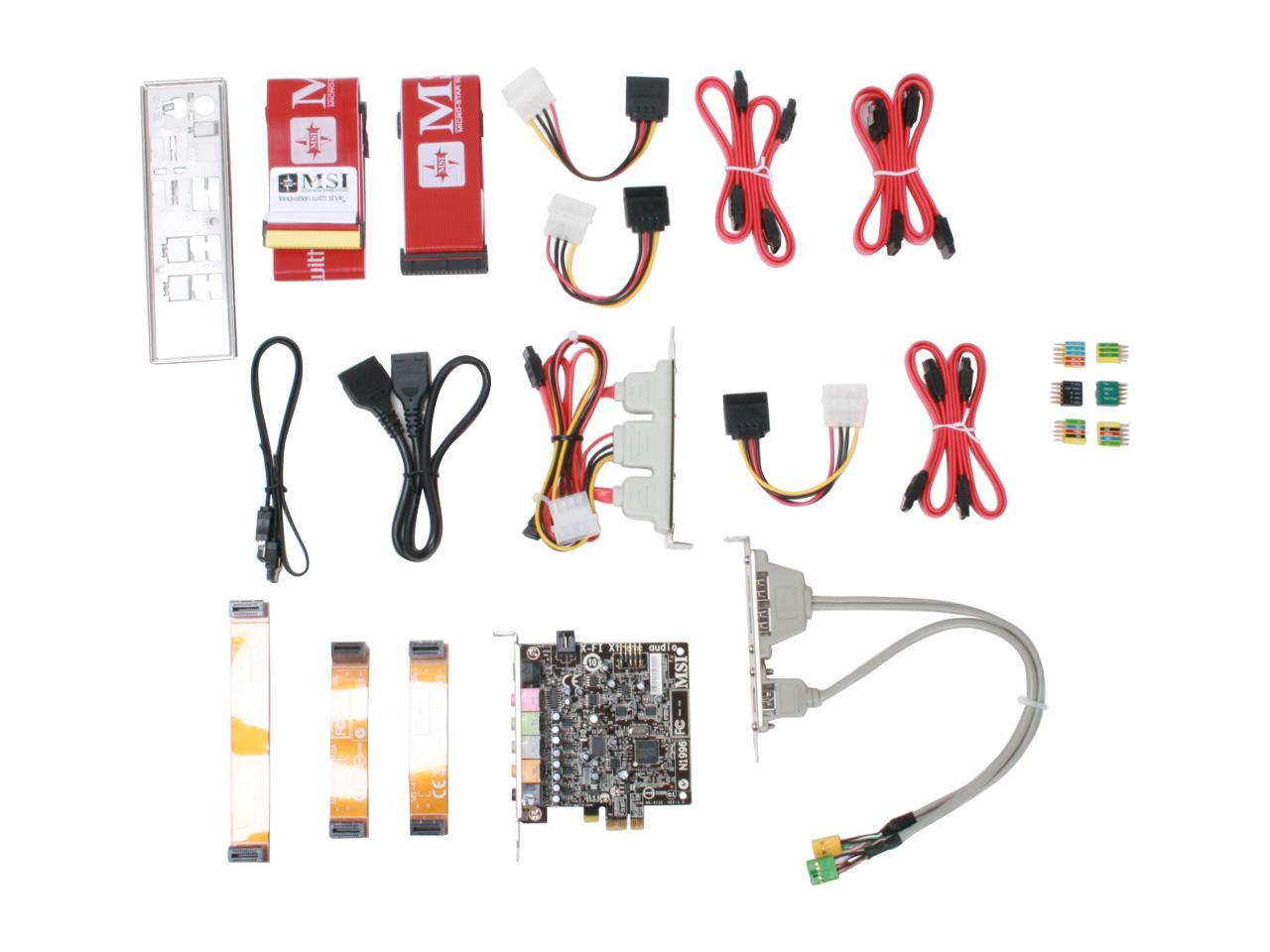

P7N Diamond 3 x Driver Disk User Manual 3-way SLI Bridge and SLI bridges Rear I/O Panel Shield IDE/PATA Cables FDD Cable 6 x SATA Cables 3 x 4-pin to SATA Power Cables IEEE 1394 and USB Bracket eSATA Cable eSATA Bracket MSI M-Connector MS-4132, SB X-fi Xtreme Audio Card MSI Product Registration Card
