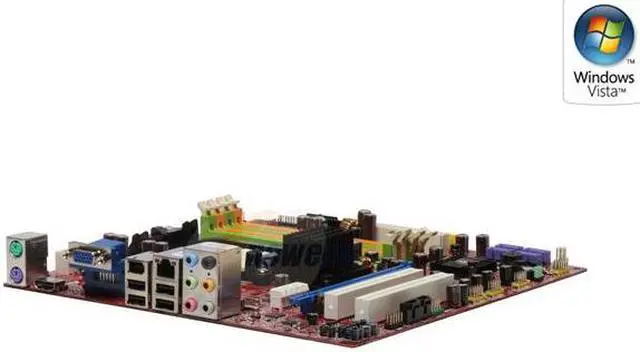

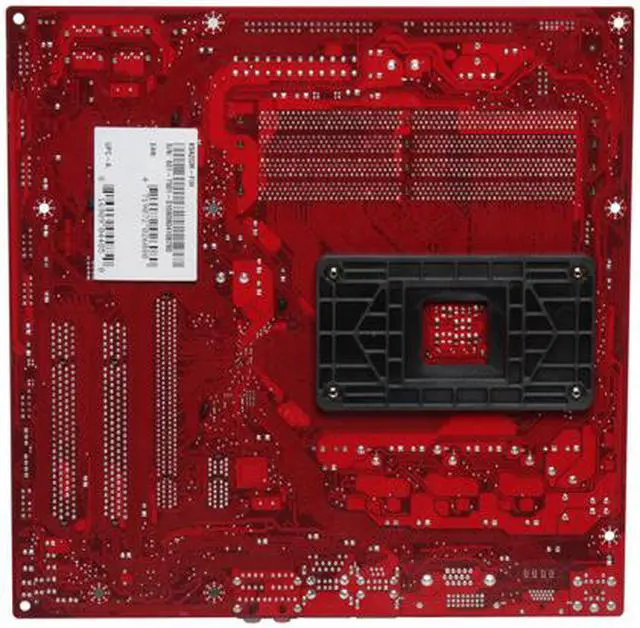

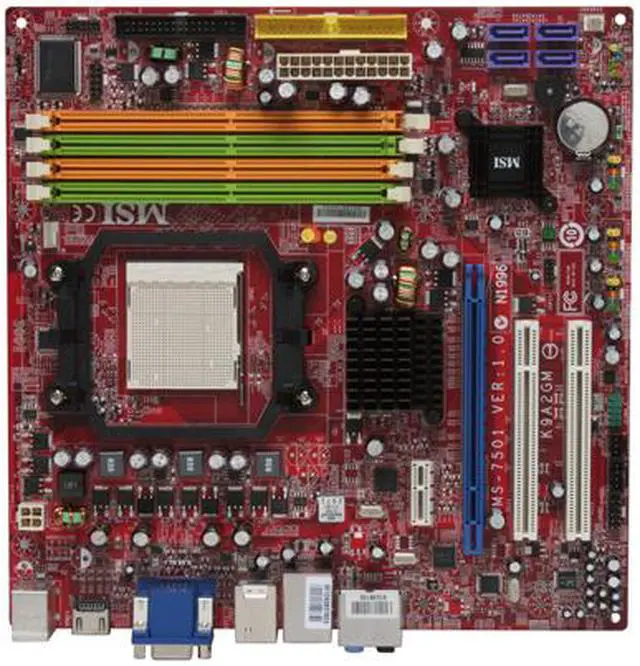

MSI K9A2GM-FIH AM2+/AM2 AMD 780G HDMI Micro ATX AMD Motherboard

(18) Write a Review

AMD 780G
Phenom / Athlon 64 X2 / Athlon 64 / Sempron
DDR2 1066

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (18)

Any questions? Our AI beta will help you find out quickly.

Try me now

The K9A2GM is based on AMD 780G/780V & SB700 chipsets for optimal system efficiency. Designed to fit the advanced AMD Phenom / Athlon 64 / Sempron processors in Socket AM2 / AM2+, the K9A2GM delivers a high performance and professional desktop platform solution.

Model
Brand	MSI
Model	K9A2GM-FIH

Supported CPU
CPU Socket Type	AM2+/AM2
CPU Type	Phenom / Athlon 64 X2 / Athlon 64 / Sempron

Chipsets
Chipset	AMD 780G
South Bridge	AMD SB700

Memory
Number of Memory Slots	4x240pin
Memory Standard	DDR2 1066
Maximum Memory Supported	8GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 2.0 x16	1 x PCI Express 2.0 x16
PCI Express x1	1 x PCI Express x1
PCI Slots	2 x PCI Slots

Storage Devices
SATA RAID	0/1/0+1

Onboard Video
Onboard Video Chipset	ATI Radeon HD 3200

Onboard Audio
Audio Chipset	Realtek ALC888
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek 8111C
Max LAN Speed	1Gbps

Rear Panel Ports

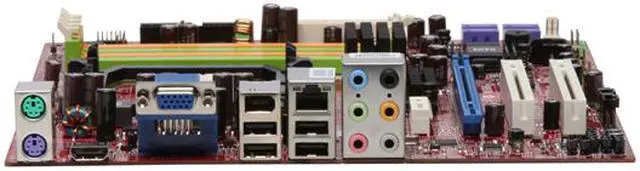

Back I/O Ports	1 x D-Sub / 1 x HDMI / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2	2
Video Ports	D-Sub
HDMI	1 x HDMI
USB 1.1/2.0	4 x USB 2.0
IEEE 1394	1 x IEEE 1394a
Audio Ports	6 Ports

Internal I/O Connectors
Onboard USB	3 x USB 2.0 connector support additional 6 ports
Onboard 1394	1 x 1394a

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.0"
Power Pin	24 Pin

Packaging

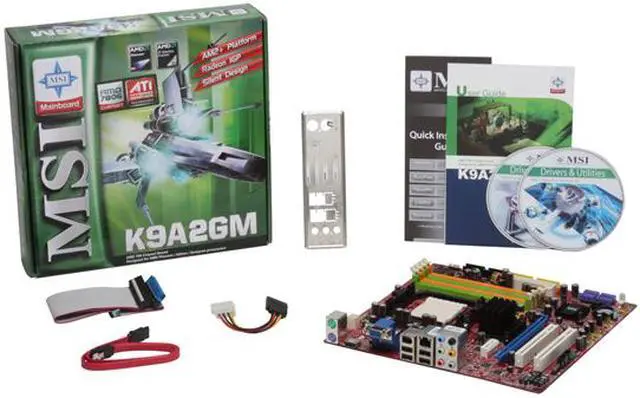

Package Contents	K9A2GM-FIH Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable 4-pin to SATA Power Cable
