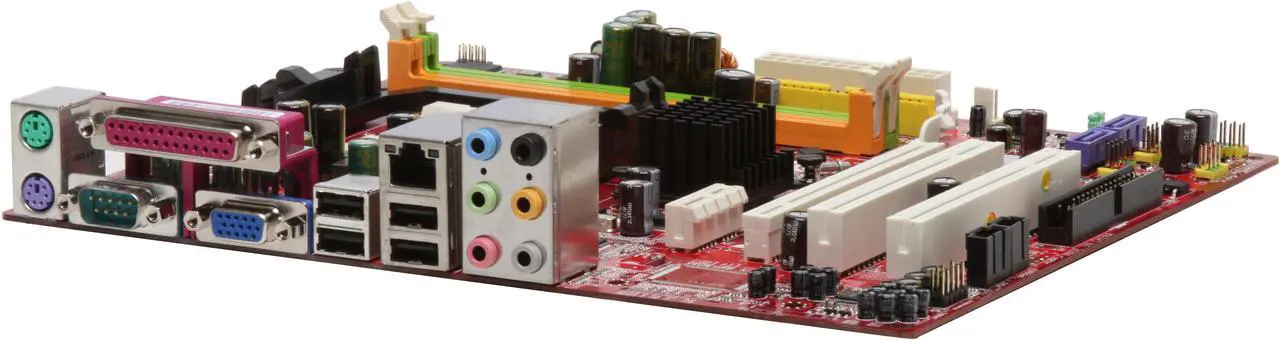

MSI K9N6SGM-V V2 AM2 NVIDIA MCP61 (MCP61P) Micro ATX AMD Motherboard

(6) Write a Review
  • NVIDIA MCP61 (MCP61P)
  • Athlon 64 X2 / Athlon 64 FX / Athlon 64
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (6)

Learn more about the MSI K9N6SGM-V V2

Model
Brand MSI
Model K9N6SGM-V V2
Supported CPU
CPU Socket Type AM2
CPU Type Athlon 64 X2 / Athlon 64 FX / Athlon 64
FSB 1000 MHz
Chipsets
Chipset NVIDIA MCP61 (MCP61P)
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR2 800
Maximum Memory Supported 2GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1
Onboard Video
Onboard Video Chipset NVIDIA GeForce 6100
Onboard Audio
Audio Chipset Realtek ALC888
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8201CL
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 USB 2.0 connectors support 4 ports
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.7" x 8.2"
Power Pin 24 Pin
Packaging

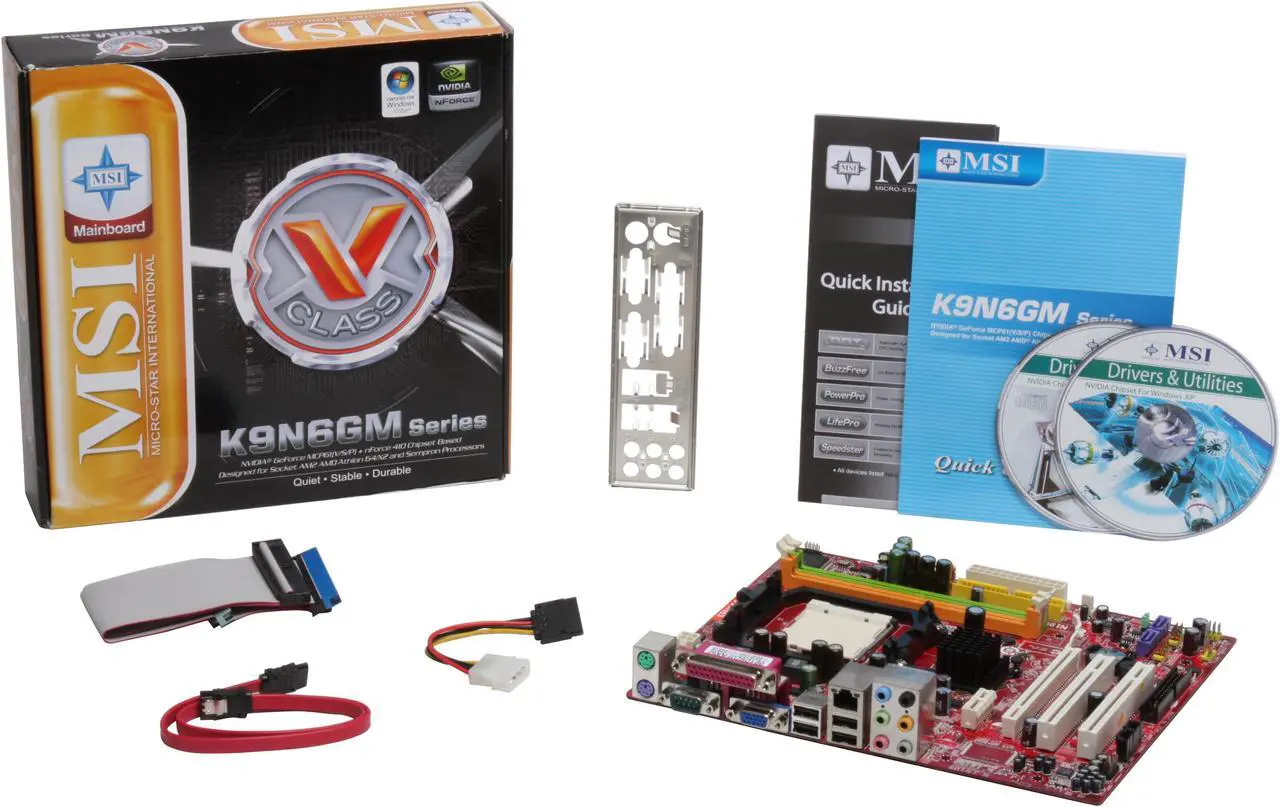

Package Contents K9N6SGM-V V2
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
SATA Cable
4-pin to SATA Power Cable
Physical Spec
Windows Vista Certified for Windows Vista
Additional Information
Date First Available May 19, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
