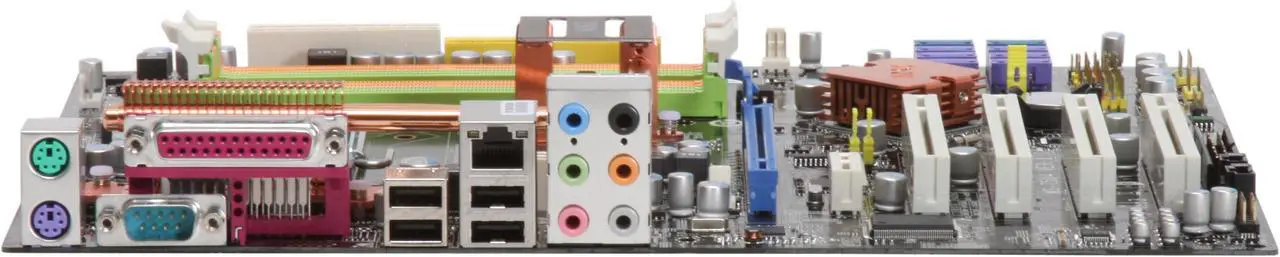

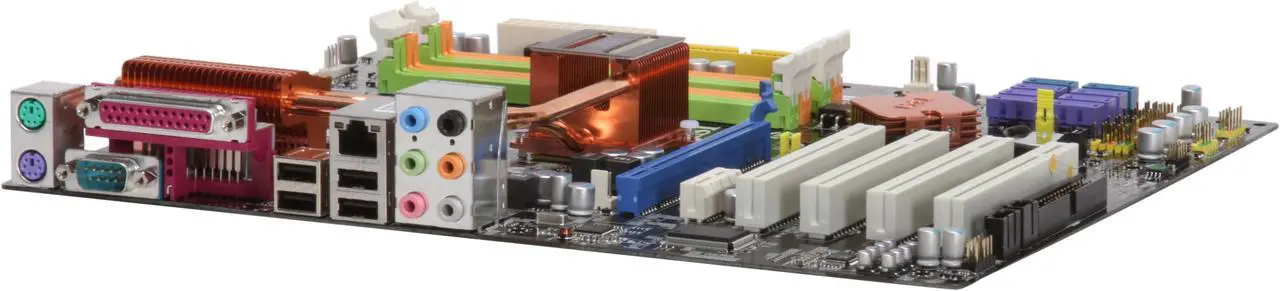

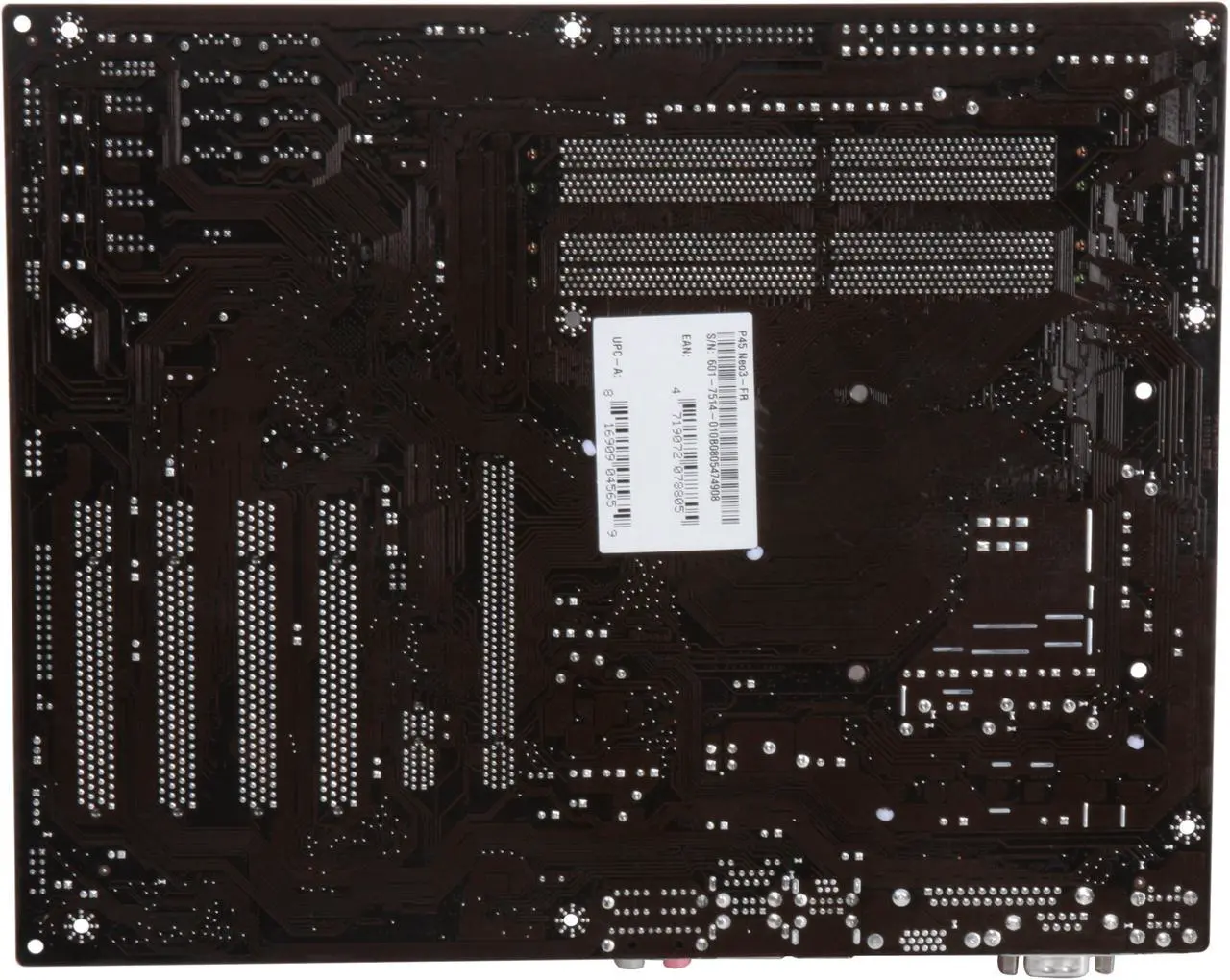

MSI P45 Neo3-FR LGA 775 Intel P45 ATX Intel Motherboard

OUT OF STOCK.
  • Intel P45
  • Core 2 Quad / Core 2 Extreme / Core 2 Duo
  • DDR2 1066
Specs
Reviews

Learn more about the MSI P45 Neo3-FR

Model
Brand MSI
Model P45 Neo3-FR
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB 1600/1333 MHz
Chipsets
Chipset Intel P45
South Bridge Intel ICH10R
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 1066
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 1 x PCI Express x1
PCI Slots 4 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 8 x SATA 3Gb/s
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC888
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111C
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 2
COM 1
LPT 1
USB 1.1/2.0 4 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0 connectors
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features Multi-phase PWM IC
Dual Core Center
MSI Live Update
Live Update 3
8-channel audio
100% Solid Capacitors & Chokes

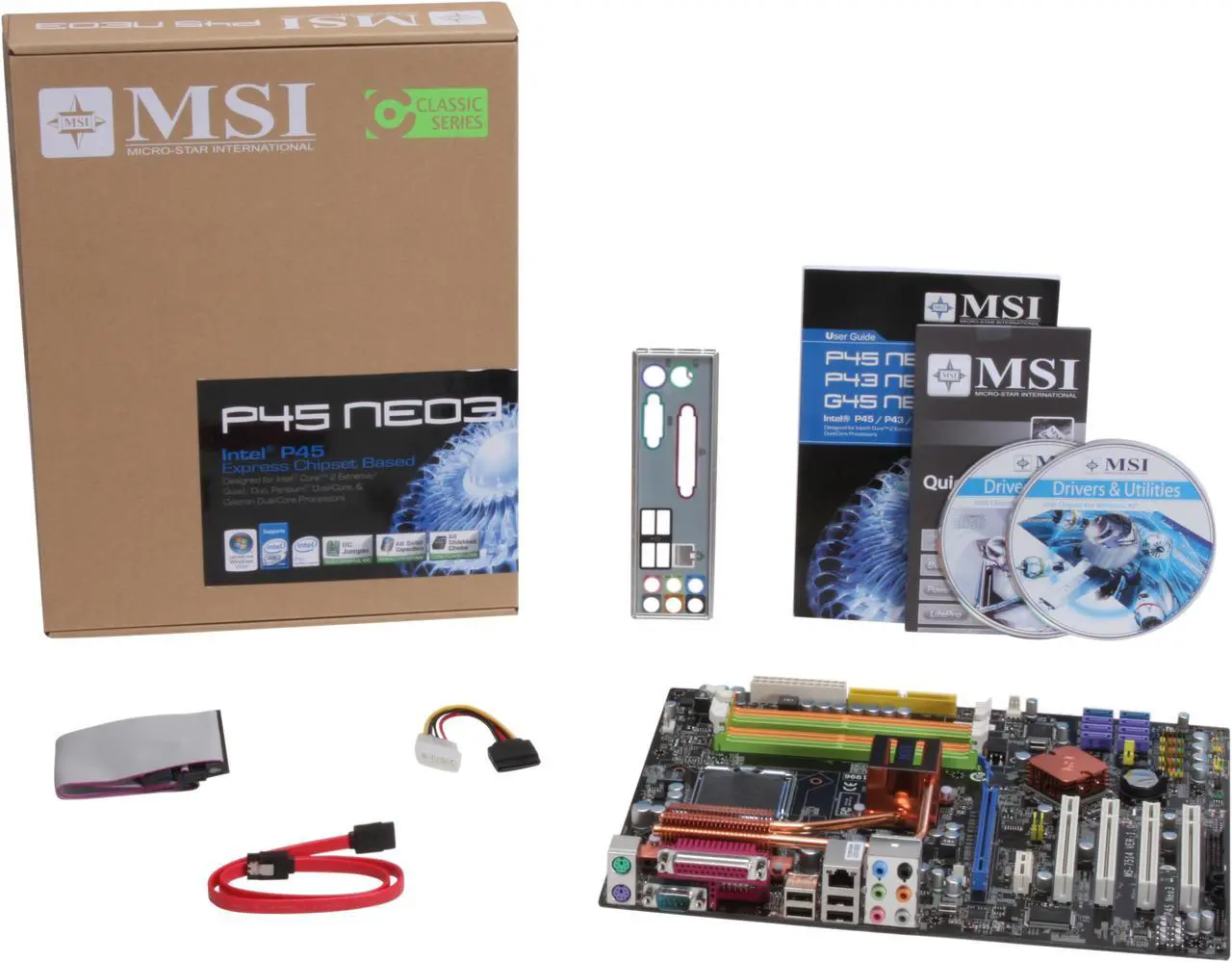

Packaging
Package Contents P45 Neo3-FR
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
SATA Cable
4-pin to SATA Power Cable
Additional Information
Date First Available June 16, 2008
