MSI P45 Neo2-FR LGA 775 Intel P45 ATX Intel Motherboard

(26) Write a Review
  • Intel P45
  • Celeron / Core 2 Duo / Core 2 Extreme / Core 2 Quad / Pentium
  • DDR2 1066(O.C.)/800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (26)

Learn more about the MSI P45 Neo2-FR

Model
Brand MSI
Model P45 Neo2-FR
Supported CPU
CPU Socket Type LGA 775
CPU Type Celeron / Core 2 Duo / Core 2 Extreme / Core 2 Quad / Pentium
FSB 1600(O.C)/1333MHz
Chipsets
Chipset Intel P45
South Bridge Intel ICH10R
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 1066(O.C.)/800
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 x PCI Express 2.0 x16 slots
- When using two PCIE x16 slots, the PCIE x16 lanes will auto arrange from x16/x0 to x8/x8
PCI Express x1 2 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC888
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111C
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 2 x PS/2 / 6 x USB 2.0/1.1
PS/2 2
USB 1.1/2.0 6 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 connectors
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging

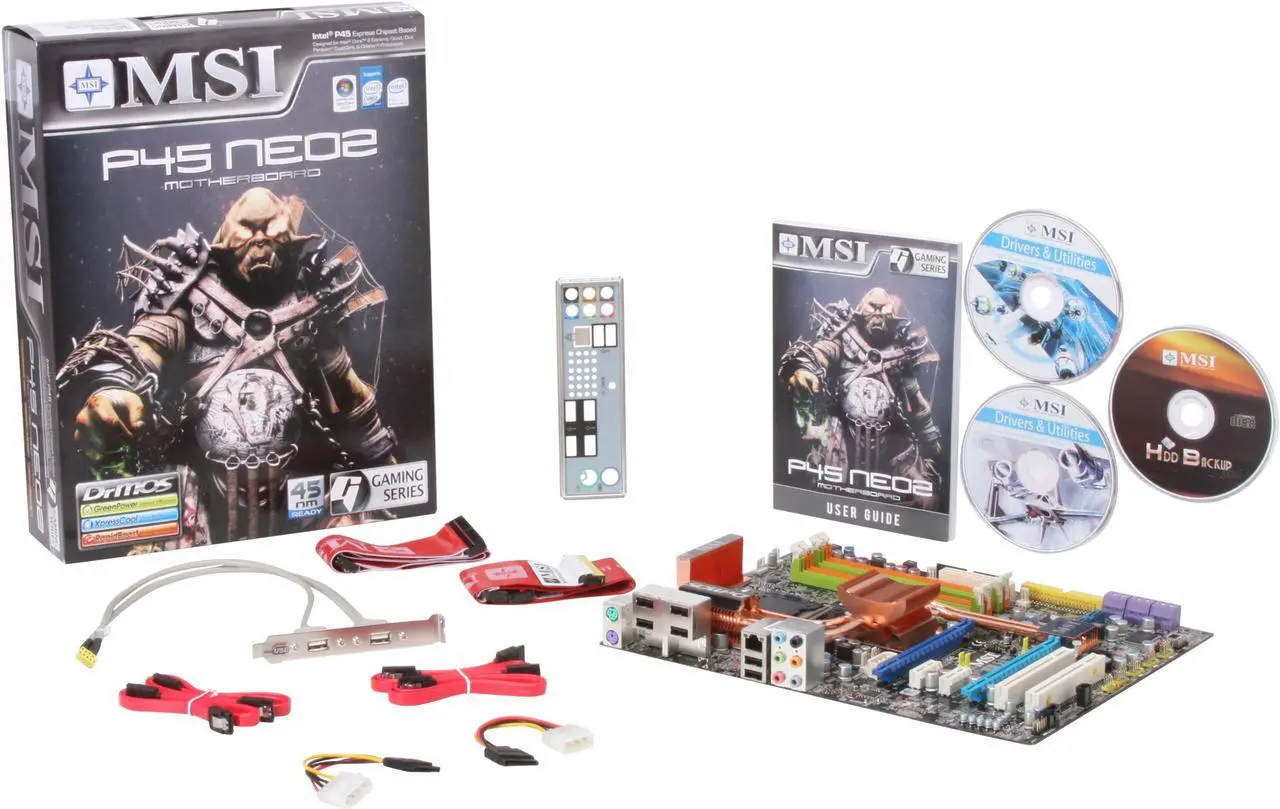

Package Contents P45 Neo2-FR
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
USB Bracket
Details
Windows Vista Certified for Windows Vista
Additional Information
Date First Available July 07, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
