MSI P6NG Neo-Digital LGA 775 NVIDIA GeForce 7100 / nForce 630i HDMI ATX Intel Motherboard
- NVIDIA GeForce 7100 / nForce 630i
- Core 2 Quad / Core 2 Duo / Pentium D / Celeron
- DDR2 800
Specs
Reviews (6)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI P6NG Neo-Digital
| Brand | MSI |
|---|---|
| Model | P6NG Neo-Digital |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Duo / Pentium D / Celeron |
| FSB | 1333/1066 MHz |
| Chipset | NVIDIA GeForce 7100 / nForce 630i |
|---|
| Onboard Video Chipset | NVIDIA GeForce 7100 |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 4GB |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 4 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/JBOD |
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8201CL |
|---|---|
| Max LAN Speed | 1Gbps |

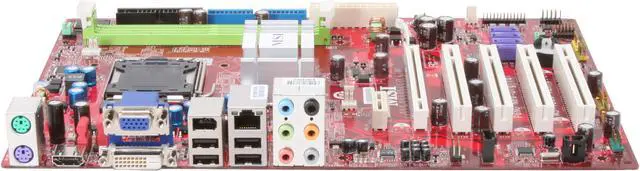

| Back I/O Ports | 1 x HDMI / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| Audio Ports | 6 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 8.1" |
| Power Pin | 24 Pin |

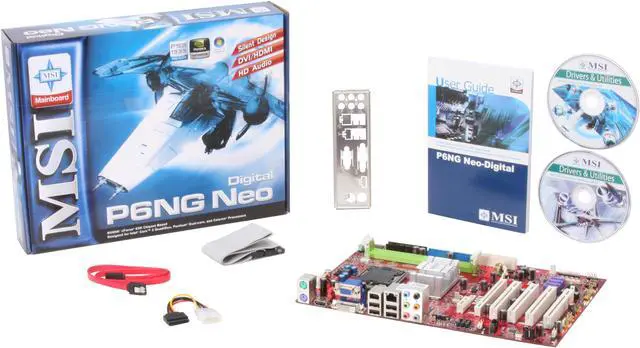

| Package Contents | P6NG Neo-Digital Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable 4-pin to SATA Power Cable |
|---|
| Windows Vista | Certified for Windows Vista |
|---|
| First Listed on Newegg | July 07, 2008 |
|---|
