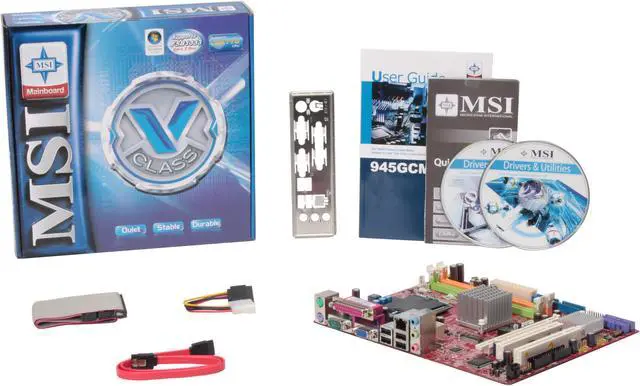

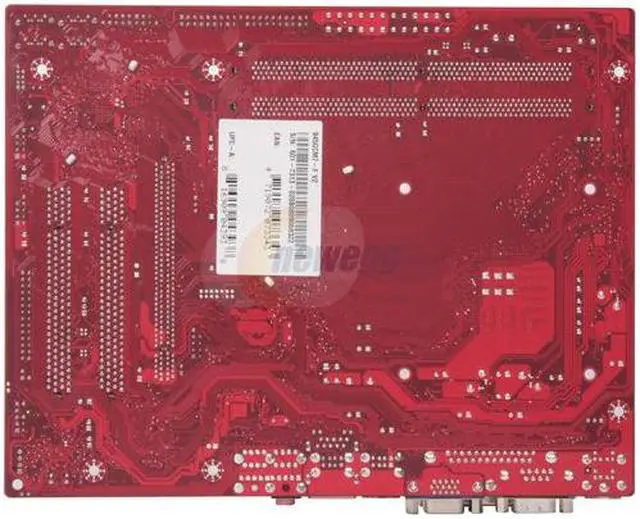

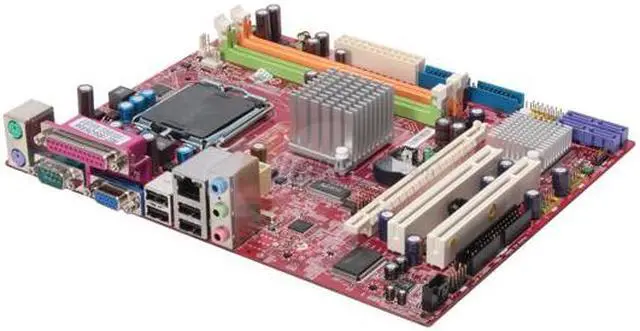

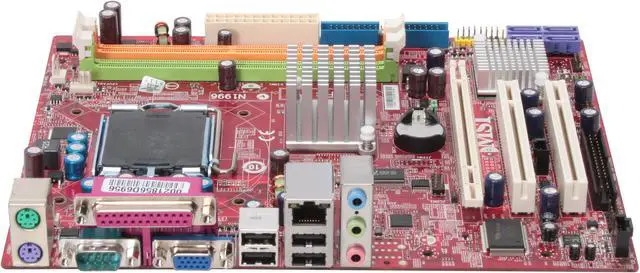

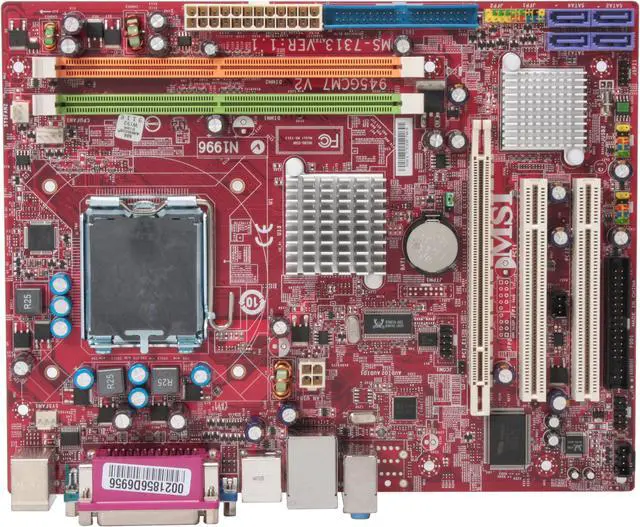

MSI 945GCM7-F V2 LGA 775 Intel 945GC Micro ATX Intel Motherboard

  • Intel 945GC
  • Core 2 Duo / Core Duo / Celeron M
  • DDR2 667
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (2)
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the MSI 945GCM7-F V2

Model
Brand MSI
Model 945GCM7-F V2
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Duo / Core Duo / Celeron M
FSB 1333/1066 MHz
Chipsets
Chipset Intel 945GC
South Bridge Intel ICH7
Onboard Video
Onboard Video Chipset Intel GMA 950
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR2 667
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
Onboard Audio
Audio Chipset Realtek ALC888
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111C
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 7.5"
Power Pin 24 Pin
Additional Information
Date First Available October 15, 2008
