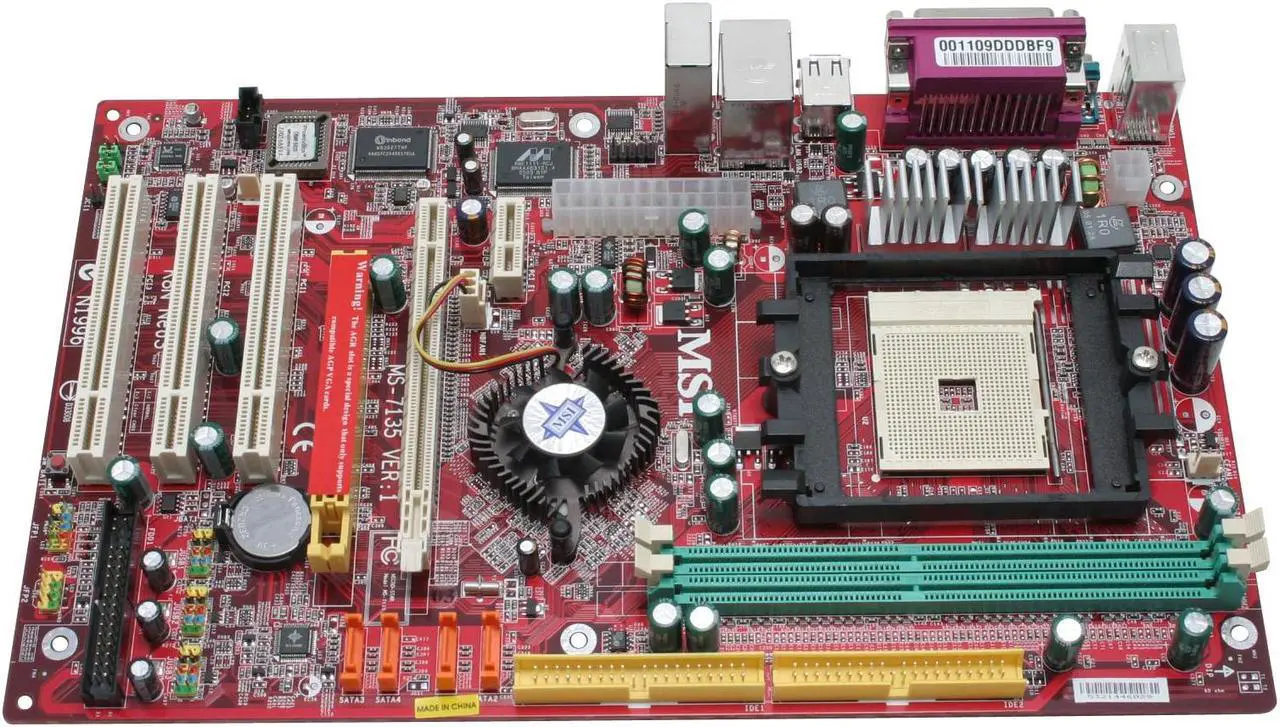

MSI K8N NEO3-F 754 NVIDIA nForce4 4X ATX AMD Motherboard
- NVIDIA nForce4 4X
- Athlon 64 / Sempron
- DDR 400
Specs
Reviews (65)
Any questions? Our AI mode will help you find out quickly.
Try me now
Learn more about the MSI K8N NEO3-F
| Brand | MSI |
|---|---|
| Model | K8N NEO3-F |
| CPU Socket Type | 754 |
|---|---|
| CPU Type | Athlon 64 / Sempron |
| FSB | 800 MHz |
| Chipset | NVIDIA nForce4 4X |
|---|
| Number of Memory Slots | 2x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 2GB |
| AGP Slots | One AGR (Advanced Graphics Riser) slot The AGR slot is a special design that only supports compatible AGP VGA cards |
|---|---|
| PCI Express x16 | 1 x PCI Express x16 |
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| PATA RAID | NV RAID 0/1/0+1 JBOD |
| SATA RAID | NV RAID 0/1/0+1 JBOD |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC655 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Marvell 88E1111 PHY |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x COM (Serial Port) / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 3 x USB 2.0 connectors suppot 6 ports |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 11.7" x 7.3" |
| Power Pin | 24 Pin |

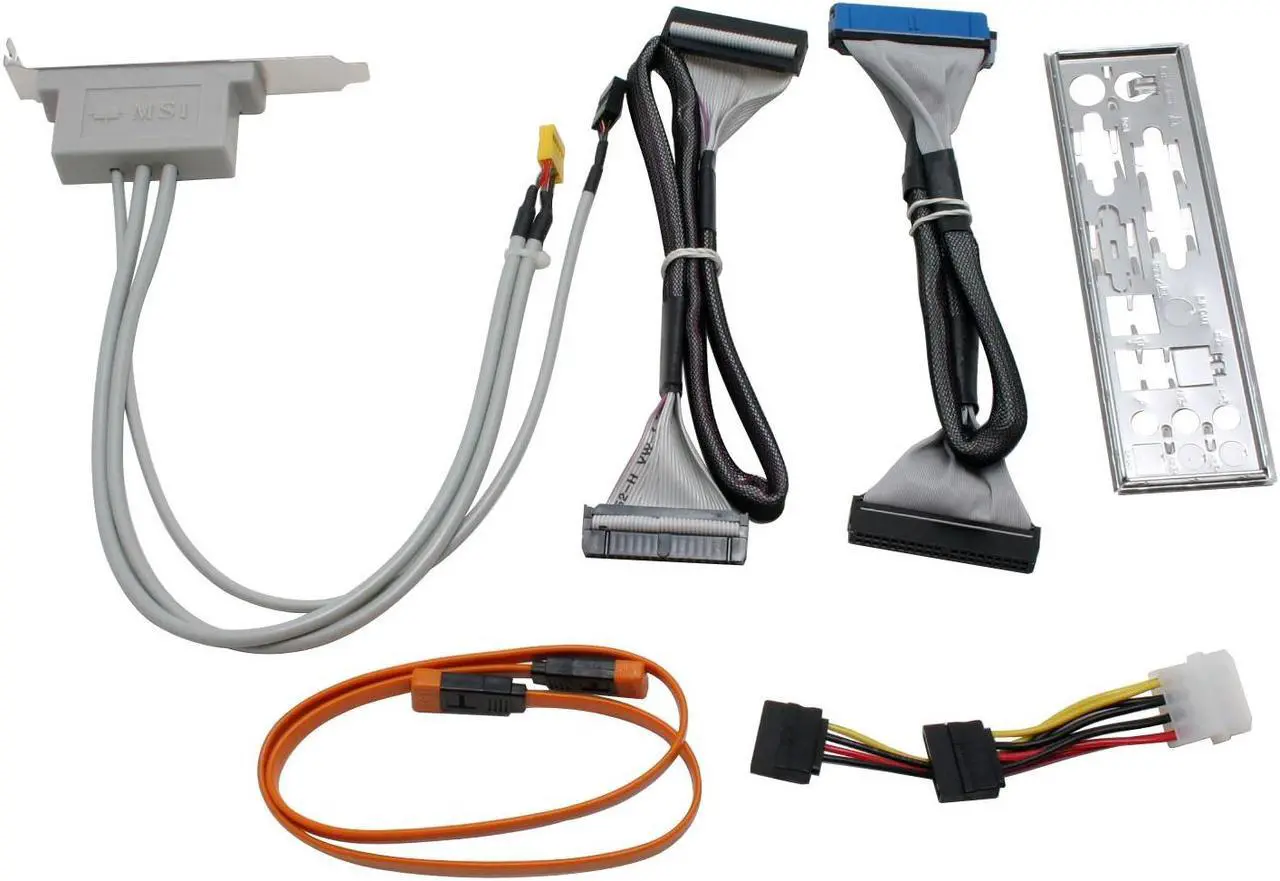

| Package Contents | K8N NEO3-F User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable Floppy Drive Diskette USB Bracket |
|---|
| First Listed on Newegg | April 18, 2005 |
|---|
