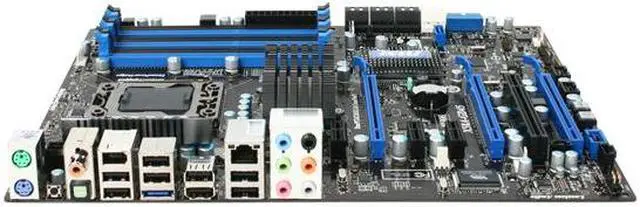

Main image of MSI X58A-GD45 LGA 1366 Intel X58 + ICH10R USB 3.0 ATX Intel Motherboard

Alt view image 2 of 5 - MSI X58A-GD45 LGA 1366 Intel X58 + ICH10R USB 3.0 ATX Intel Motherboard

Alt view image 3 of 5 - MSI X58A-GD45 LGA 1366 Intel X58 + ICH10R USB 3.0 ATX Intel Motherboard

Alt view image 4 of 5 - MSI X58A-GD45 LGA 1366 Intel X58 + ICH10R USB 3.0 ATX Intel Motherboard

Alt view image 5 of 5 - MSI X58A-GD45 LGA 1366 Intel X58 + ICH10R USB 3.0 ATX Intel Motherboard

Shop All MSI Products

MSI X58A-GD45 LGA 1366 Intel X58 + ICH10R USB 3.0 ATX Intel Motherboard

(43) Write a Review

Intel X58 + ICH10R
Core i7 (LGA1366)
DDR3 800/1066/1333/1600*/1800*/2133* (OC)

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (43)

Any questions? Our AI beta will help you find out quickly.

Try me now

Thank you for choosing the X58A-GD45 Series (MS- 7522 v5.X) ATX main board. The X58A-GD45 Series main boards are based on Intel X58 & ICH10R chip sets for optimal system efficiency. Designed to fit the advanced Intel LGA1366 processor, the X58A-GD45 Series deliver a high performance and professional desktop platform solution.

Model
Brand	MSI
Model	X58A-GD45

Supported CPU
CPU Socket Type	LGA 1366
CPU Type	Core i7 (LGA1366)

Chipsets
Chipset	Intel X58 + ICH10R

Onboard Video
Onboard Video Chipset	None

Memory
Number of Memory Slots	6x240pin
Memory Standard	DDR3 800/1066/1333/1600/1800/2133* (OC)
Maximum Memory Supported	24GB
Channel Supported	Triple Channel

Expansion Slots
PCI Express 2.0 x16	2 x PCI Express 2.0 x16
PCI Express x16	1 (When other PCI-Ex1 slot is used, this slot will auto arrange from x4 to x1)
PCI Express x1	3 x PCI Express x1
PCI Slots	1 x PCI Slot

Storage Devices
Serial ATA (SATA)	2 X SATAIII ports by Marvell SE9128 (SATA7~8)
SATA RAID	SATA1~6 support AHCI controller with SATA RAID 0/1/5/10 by ICH10R. SATA7~8 support SATA RAID 0/1 by Marvell SE9128.

Onboard Audio
Audio Chipset	Realtek ALC892
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek 8111E
Max LAN Speed	1Gbps

Rear Panel Ports
PS/2	2
USB 3.0	2 x USB 3.0 by USB 3.0 Bracket
USB 1.1/2.0	8 x USB 2.0
IEEE 1394	1 x IEEE 1394
eSATA	1 x eSATA port by JMicron JMB362.
S/PDIF Out	1 x Optical, 1 x Coaxial
Audio Ports	6 Ports

Internal I/O Connectors
Onboard USB	4 x USB 2.0
Onboard 1394	1 x 1394

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	24 Pin

Features
Features	DrMOS has integrated Driver IC, Top-MOSFET, Bottom-MOSFET - GreenPower GreenPower Technology is the Best efficient power saving solution for end-users. - XpressCool DrMOS offers lower temperature when it is working. No More Noise!! No More High Speed Fan!! - RapidBoost DrMOS delivers the high quality power transfer to bring the "Stable Overclocking Environment". APS - APS is Active Phase Switching, that is complete function to Control Power Demand With Switcing Dynamically, it's for CPU, Memory and Chipset PWM. - Benefits: Saving Power under Variable Loading. Power Usage More Efficiency. Military Class series products feature top components that offers users the best experience for its unparalleled quality, ultimate efficiency, and the cool & noiseless and safety for its unbeatable stability. Equip with 2 or more PCIe x16 slots, ATI CrossFire Ready.

Additional Information
First Listed on Newegg	December 02, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
