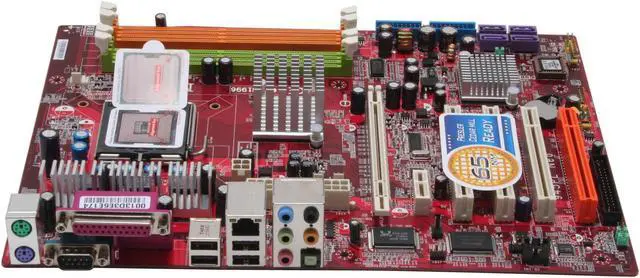

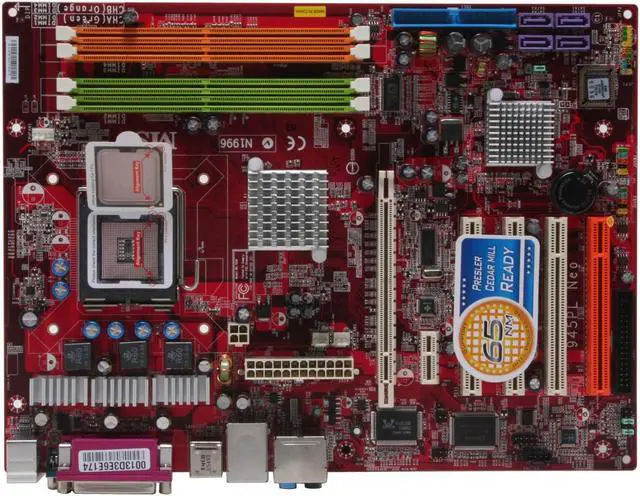

MSI 945PL Neo-F LGA 775 Intel 945PL Express ATX Intel Motherboard
- Intel 945PL Express
- Pentium EE / Pentium D / Pentium 4 HT / Celeron D
- DDR2 533
Specs
Reviews (5)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI 945PL Neo-F
| Brand | MSI |
|---|---|
| Model | 945PL Neo-F |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Pentium EE / Pentium D / Pentium 4 HT / Celeron D |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel 945PL Express |
|---|---|
| South Bridge | Intel ICH7 |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 533 |
| Maximum Memory Supported | 2GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 4 x PCI Slots |
| Audio Chipset | Realtek ALC850 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8110S |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 2 x USB 2.0 connectors support 4 ports |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 8.9" |
| Power Pin | 24 Pin |
| Features | Because of the limitations of chipset, this MB does not support Win98/ME |
|---|
| First Listed on Newegg | January 18, 2006 |
|---|
