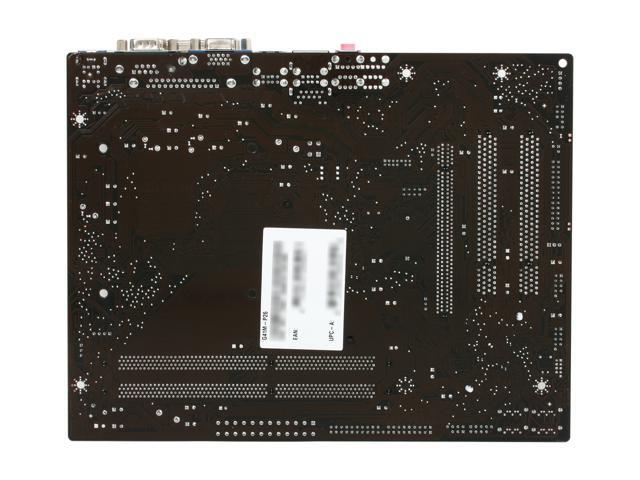

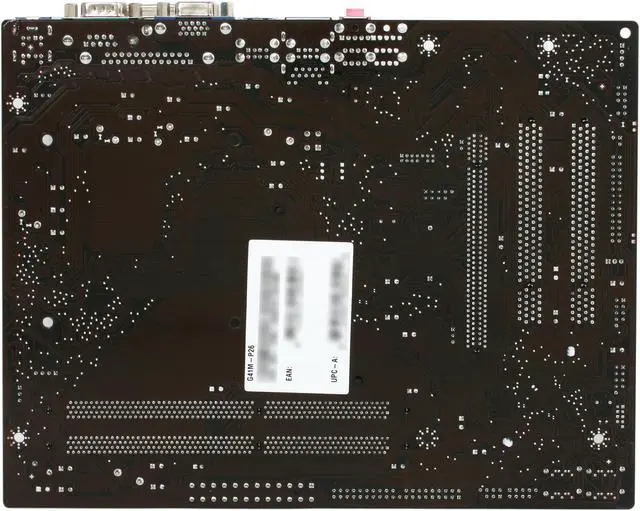

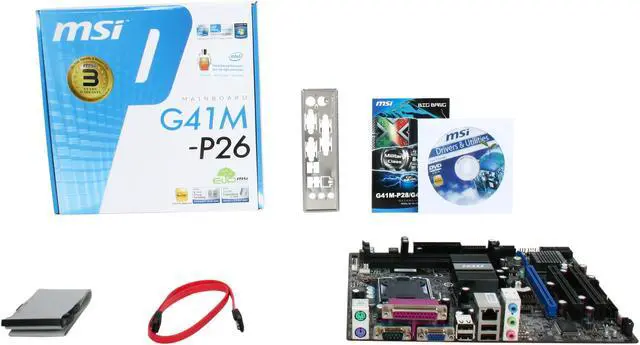

MSI G41M-P26 LGA 775 Intel G41 Micro ATX Intel Motherboard

OUT OF STOCK.
  • Intel G41
  • Celeron / Celeron Dual-Core / Core 2 Duo / Core 2 Extreme / Core 2 Quad / Pentium Dual-Core
  • DDR3 800/1066/1333* (OC)
Specs
Reviews

Learn more about the MSI G41M-P26

Model
Brand MSI
Model G41M-P26
Supported CPU
CPU Socket Type LGA 775
CPU Type Celeron / Celeron Dual-Core / Core 2 Duo / Core 2 Extreme / Core 2 Quad / Pentium Dual-Core
FSB 1333/1066/800 MHz.
Chipsets
Chipset Intel G41
South Bridge Intel ICH7
Onboard Video
Onboard Video Chipset Intel GMA X4500
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 800/1066/1333* (OC)
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 4 x SATA 3Gb/s
Onboard Audio
Audio Chipset VIA VT1708S
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Atheros AR8132M
Max LAN Speed 10/100Mbps
Rear Panel Ports
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.65" x 7.87"
Power Pin 24 Pin
Features
Features i-Charger

M-Flash

USB Safeguard

APS
- APS is Active Phase Switching is complete function to Control Power Demand With Switcing Dynamically, it’s for CPU.
- Saving Power under Variable Loading.
- Power Usage More Efficiency.

All Solid Capacitors on PWM
- Longer lifespan than electrolytic capacitors
- Endurable to operate under higher frequency & temperature
- Provide Stable Power for CPU
Additional Information
Date First Available January 06, 2011
