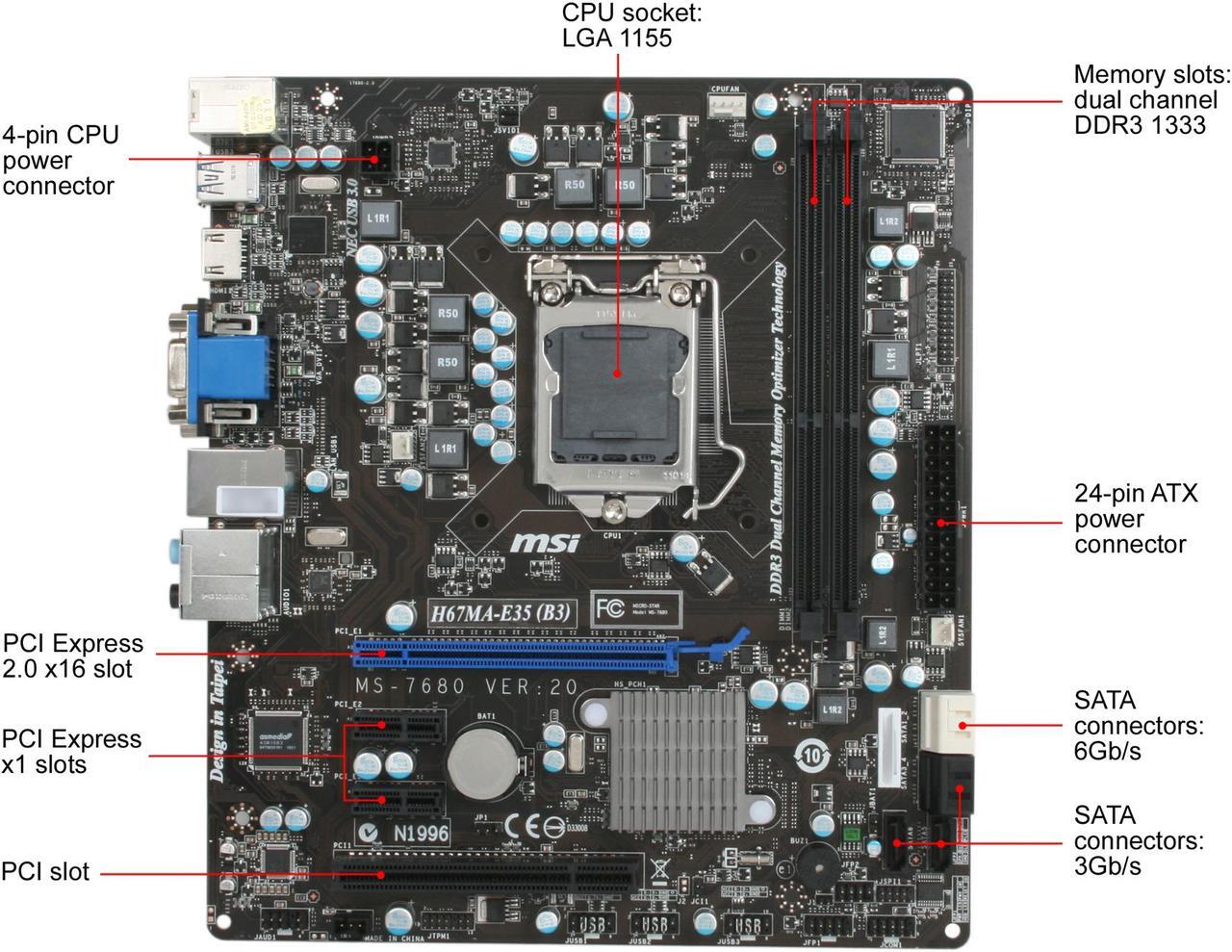

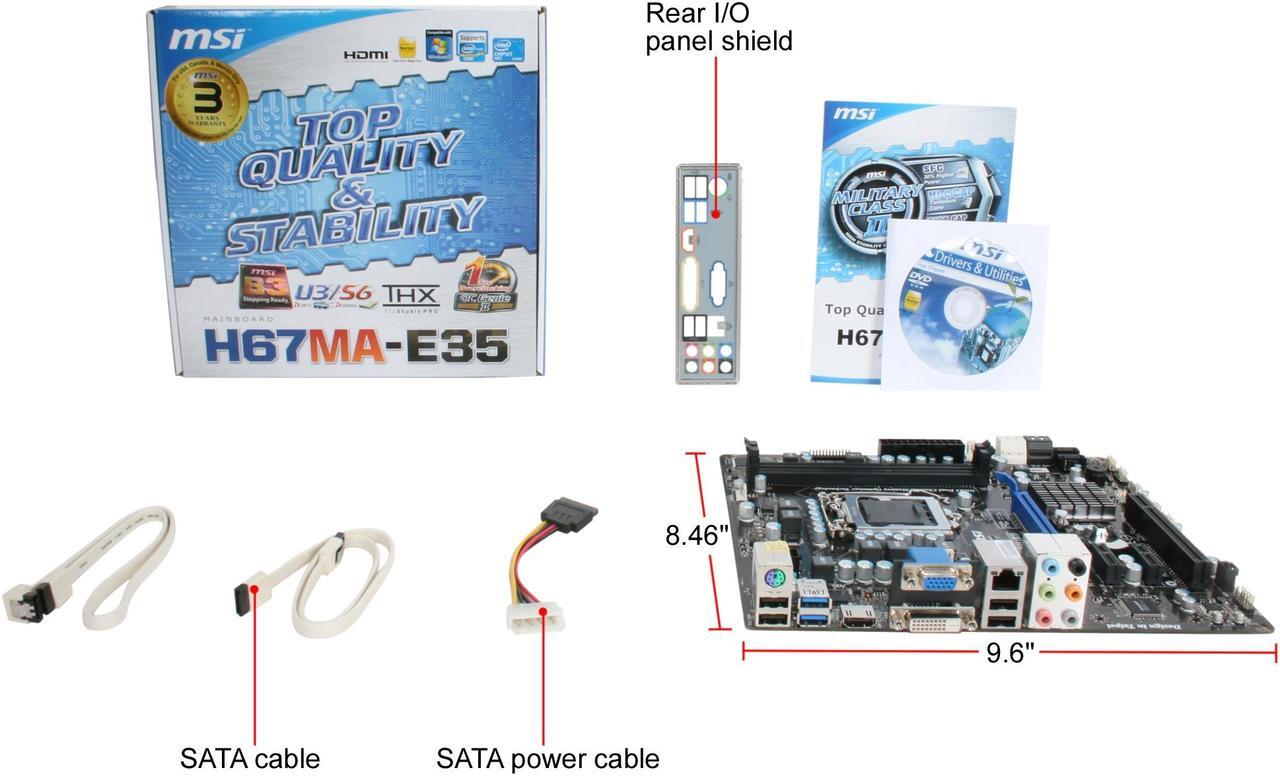

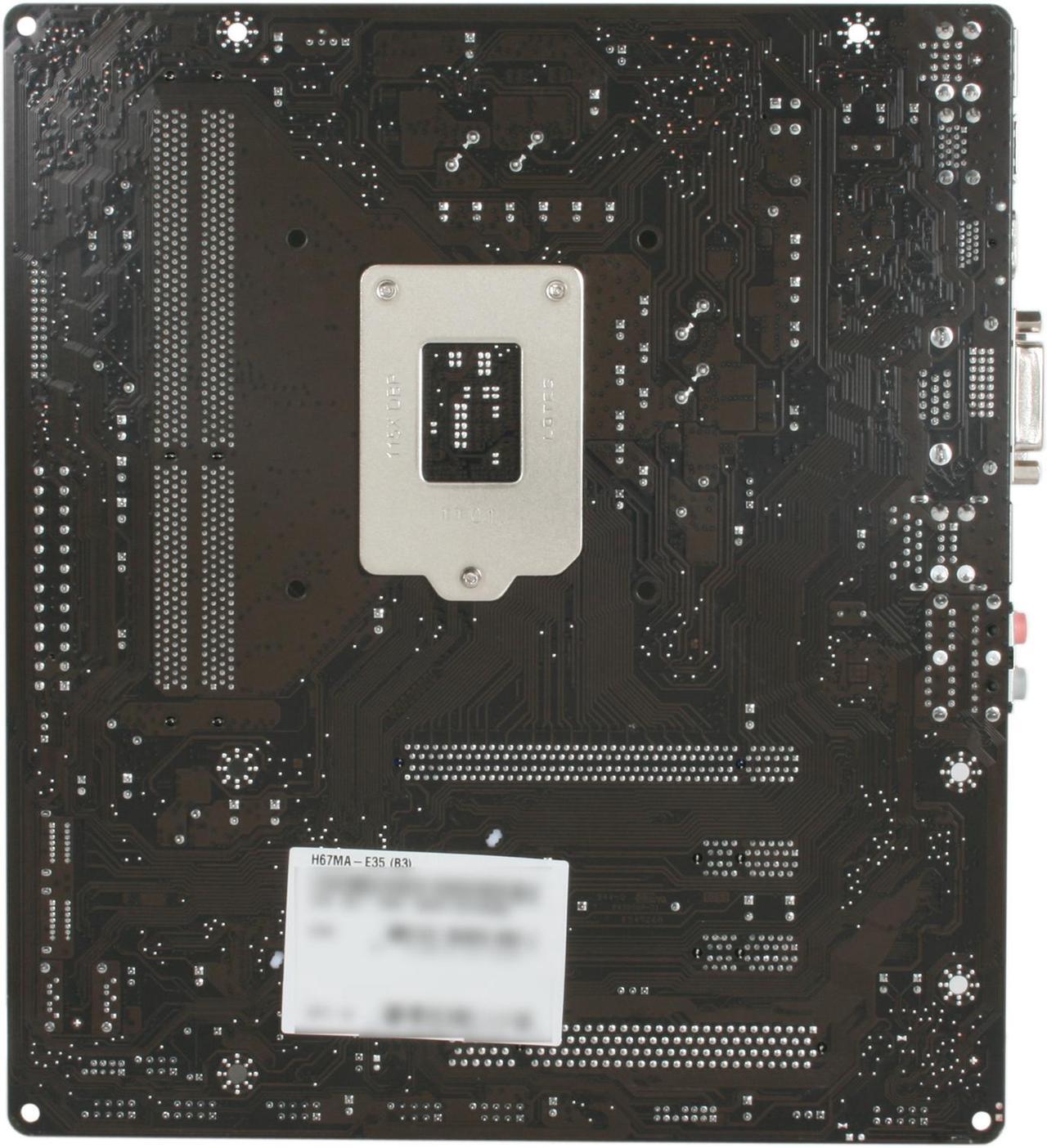

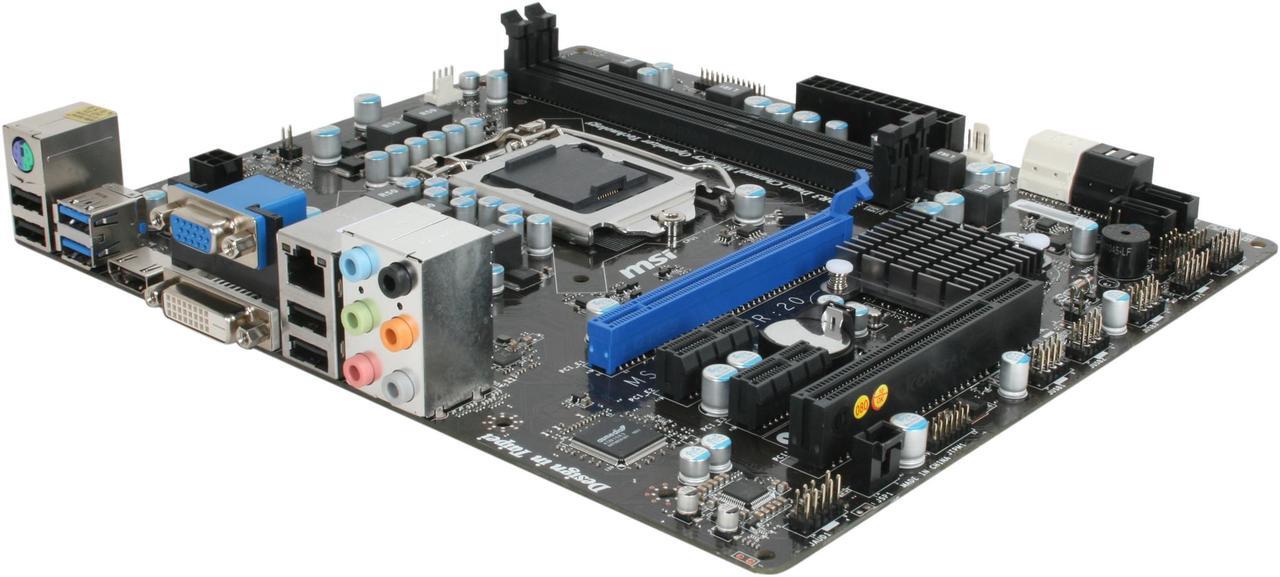

MSI H67MA-E35 (B3) LGA 1155 Intel H67 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard

Used - Very Good Product Type
In stock.
Ships from China.
Most customers receive within 7-32 days.
  • Intel H67
  • Core i7 / i5 / i3 (LGA1155)
  • DDR3 1333
Specs

Learn more about the MSI H67MA-E35 (B3)

Model
Brand MSI
Model H67MA-E35 (B3)
Supported CPU
CPU Socket Type LGA 1155
CPU Type Core i7 / i5 / i3 (LGA1155)
Chipsets
Chipset Intel H67
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2×240pin
Memory Standard DDR3 1333
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 2 x PCI Express x1
PCI Slots 1 x PCI Slot
Storage Devices
SATA 3Gb/s 4 x SATA 3Gb/s
SATA 6Gb/s 2 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC887
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 10/100/1000Mbps

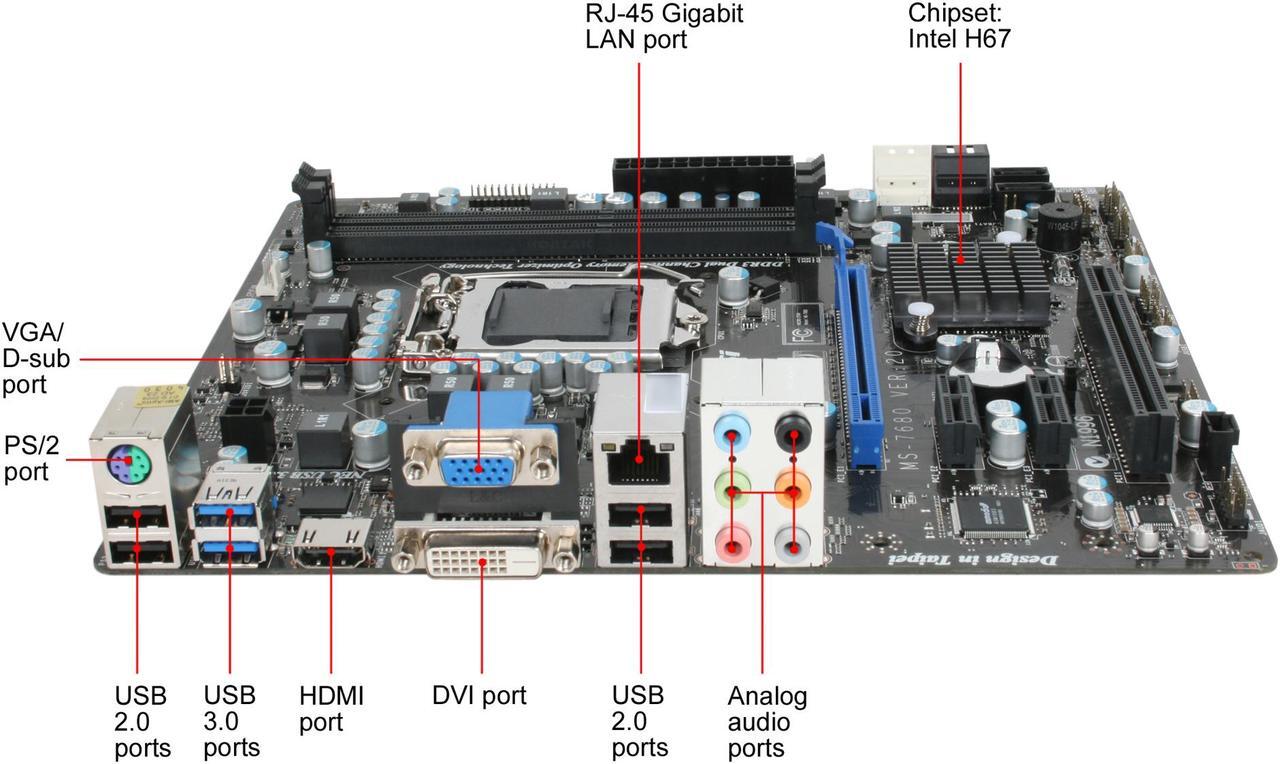

Rear Panel Ports
PS/2 1
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 3.0 2 x USB 3.0
USB 1.1/2.0 4 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 8.46"
Power Pin 24 Pin
Features
Features B3 Stepping Ready

OC Genie II: Auto OC to boost performance in 1 sec

THX TruStudio PRO: deliver the fullest audio experience for games, music and movies

IGP Supports DirectX 10.1, Shader Model 4.1 and OpenGL 3.0

Support USB 3.0 & SATA 6Gb/s
Additional Information
Date First Available November 29, 2019

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

  • Return for refund within: 30 days
  • Return for replacement within: 30 days
  • This item is covered by DoDo DIY Return Policy
