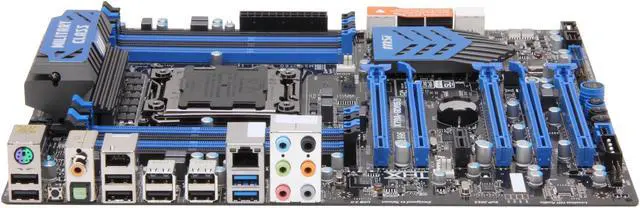

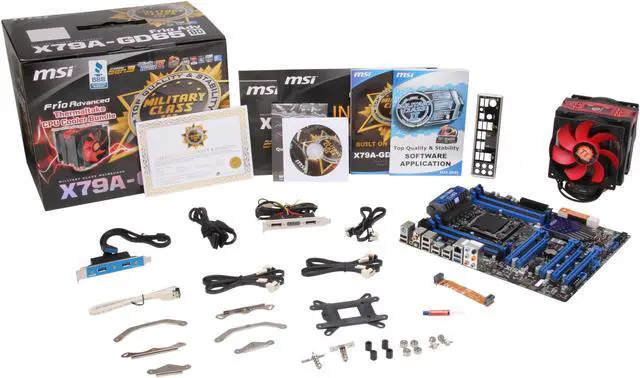

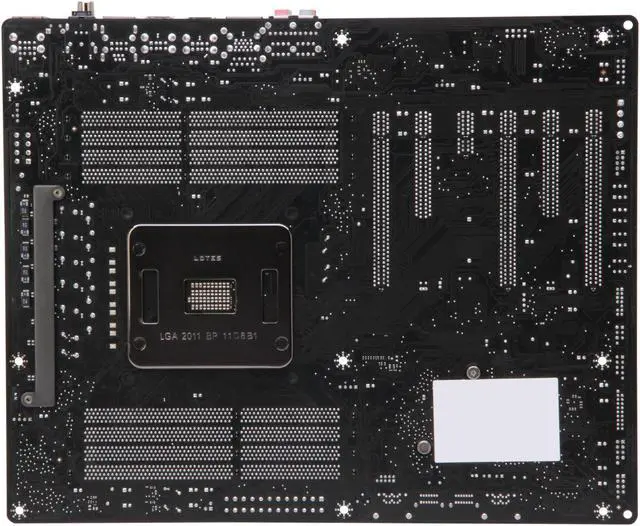

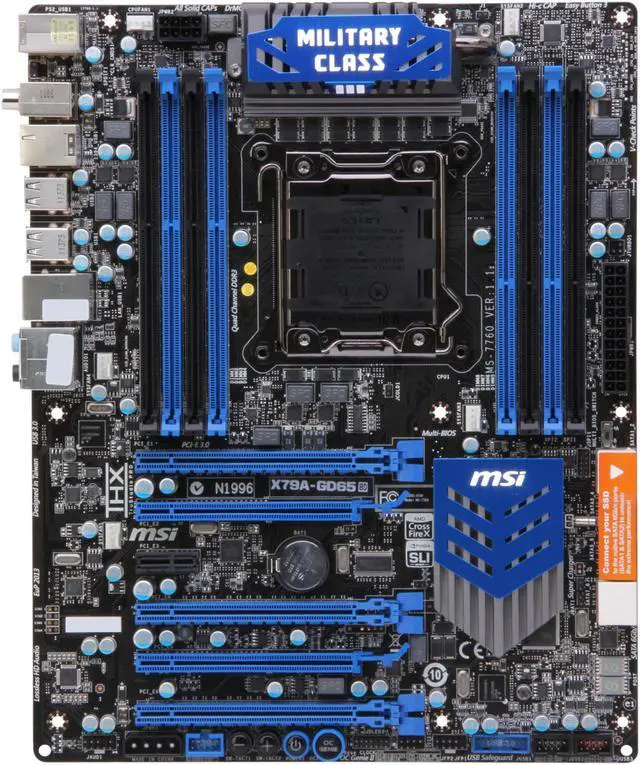

MSI X79A-GD65(8D) Frio Adv LGA 2011 Intel X79 USB 3.0 ATX Intel Motherboard

(8) Write a Review
  • Intel X79
  • Core i7 (LGA2011)
  • DDR3 1066/1333/1600/1800*/2133*/2400* (OC)
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (8)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the MSI X79A-GD65(8D) Frio Adv

Model
Brand MSI
Model X79A-GD65(8D) Frio Adv
Supported CPU
CPU Socket Type LGA 2011
CPU Type Core i7 (LGA2011)
Chipsets
Chipset Intel X79
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 8x240pin
Memory Standard DDR3 1066/1333/1600/1800*/2133*/2400* (OC)
Maximum Memory Supported 128GB
Channel Supported Quad Channel
Expansion Slots
PCI Express 3.0 x16 3 (x16, x16, x8)
PCI Express 2.0 x16 2 (x1, x1)
PCI Express x1 1 x PCI Express x1
Storage Devices
Serial ATA (SATA) 4 x SATA 6Gb/s
SATA RAID SATA1~2 ports support Intel Rapid Storage Technology enterprise (AHCI / RAID 0/1) by Intel X79
SATA3~6 ports support Intel Rapid Storage Technology enterprise (AHCI / RAID 0/1/5/10) by Intel X79
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x S/PDIF Coaxial Out / 2 x USB 3.0 / 8 x USB 2.0/1.1
PS/2 1 x PS/2 keyboard/mouse port
USB 3.0 2 x USB 3.0
USB 1.1/2.0 8 x USB 2.0
IEEE 1394 1 x IEEE 1394a
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 4 x USB 2.0
Onboard 1394 1 x 1394a
Other Connectors ATX 24-Pin power connector
8-pin ATX 12V power connector
4-PIN Power connector
CPU x 1 / System x 4 FAN connectors
Front panel audio connector
Front panel connector
1 x chasis intrusion connector
1 x Clear CMOS jumper
1 x Power button
1 x OC Genie button
2 x Direct OC buttons
1 x Multi BIOS switch
1 x Voice Genie connector
1 x MultiConnect Panel connector
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features Military Class III: Top Quality & Stability

PCI Express Gen 3: World's 1st PCI Express Gen 3 Mainboard Brand

Click BIOS II: World’s 1st Unified UEFI & Software Graphical Interface

OC Genie II: Overclock in 1 Second

Supports USB 3.0 & SATA 6Gb/s
