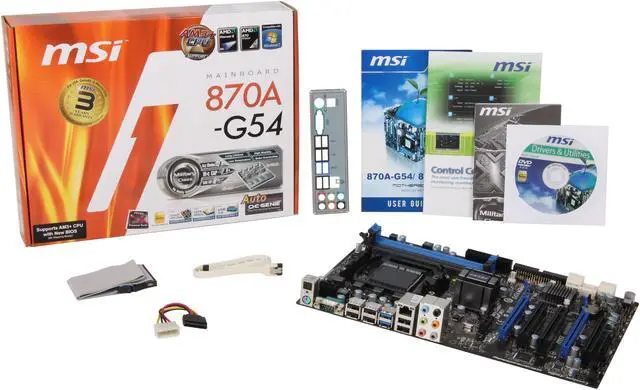

MSI 870A-G54 (FX) AM3+ AMD 870 USB 3.0 ATX AMD Motherboard
- AMD 870
- FX / Phenom II / Athlon II / Sempron 100 Series
- DDR3 800/1066/1333/1600* (OC)
Specs
Reviews (27)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI 870A-G54 (FX)
| Brand | MSI |
|---|---|
| Model | 870A-G54 (FX) |
| CPU Socket Type | AM3+ |
|---|---|
| CPU Type | FX / Phenom II / Athlon II / Sempron 100 Series |
| FSB | 2600 MHz |
| Chipset | AMD 870 |
|---|---|
| South Bridge | AMD SB850 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 800/1066/1333/1600* (OC) |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 (x16, x4) |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111DL |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x COM (Serial Port) / 1 x Optical S/PDIF Out / 1 x PS/2 / 2 x USB 3.1 Gen 1 / 6 x Audio Jacks / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| COM | 1 |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 6 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|---|
| Other Connectors | ATX 24-pin power connector ATX 4-pin 12V CPU power connector CPU x 1 / System x 2 FAN connectors CD-in connector Front panel audio connector Front panel connector Chassis intrusion switch connector 1 x OC Dial button 1 x OC Dial knob Clear CMOS jumper 1 x SPDIF-out connector 1 x TPM module connector |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 8.46" |
| Power Pin | 24 Pin |
| Features | Superb Stability: Military Class Components OC Genie: Easy Overclocking Technology Unlock CPU Core: Unlock hidden CPU core and potential USB 3.0 & SATA 6Gb/s Lossless 24bit/192kHz HD Audio |
|---|
| First Listed on Newegg | December 14, 2011 |
|---|
