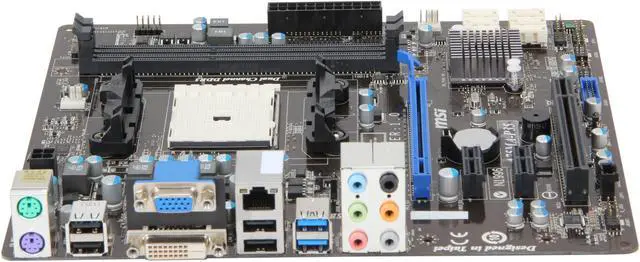

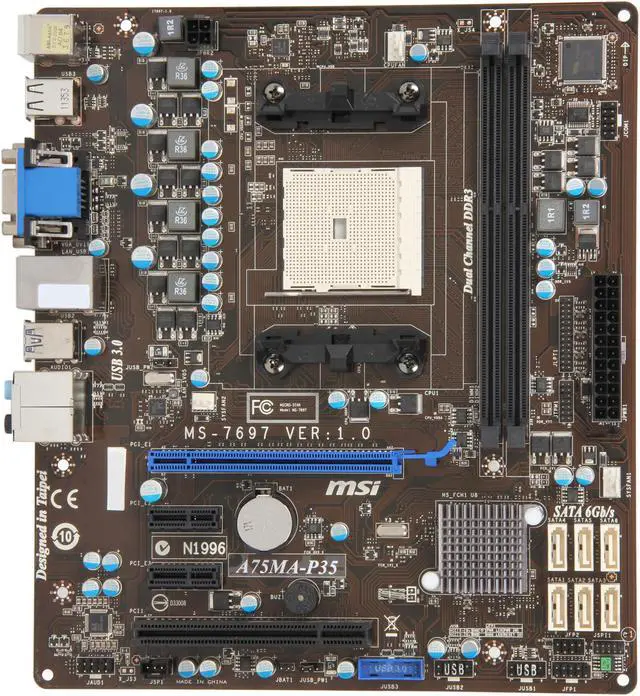

MSI A75MA-P35 FM1 AMD A75 (Hudson D3) USB 3.0 Micro ATX AMD Motherboard with UEFI BIOS
- AMD A75 (Hudson D3)
- A-Series / Athlon Series / E2-Series / Sempron
- DDR3 1066/1333/1600
Specs
Reviews (8)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI A75MA-P35
| Brand | MSI |
|---|---|
| Model | A75MA-P35 |
| CPU Socket Type | FM1 |
|---|---|
| CPU Type | A-Series / Athlon Series / E2-Series / Sempron |
| Chipset | AMD A75 (Hudson D3) |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1066/1333/1600 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 2 |
|---|---|
| Video Ports | D-Sub + DVI |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 3.0 + 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x ATX 24-pin power connector 1 x ATX 4-pin 12V CPU power connector CPU x 1 / System x 2 FAN connectors 1 x Front panel audio connector 1 x Front panel connector 1 x Serial port connector 1 x Parallel port connector 1 x Clear CMOS jumper 1 x SPDIF-out connector 1 x Chassis Intrusion connector |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.46" |
| Power Pin | 24 Pin |
| Features | OC Genie II: Auto OC to boost performance in 1 sec ClickBIOS Concept: Easy-to-use UEFI BIOS interface i-Charger: fast charge iPad/iPhone/smartphone Support USB 3.0 & SATA 6Gb/s |
|---|
| First Listed on Newegg | December 06, 2011 |
|---|
