MSI Z170A Gaming Pro Carbon LGA 1151 Intel Z170 HDMI USB 3.1 ATX Intel Motherboard
REFURBISHED Product Type
- Intel Z170
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
- DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133
Specs
Reviews (6)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI Z170A Gaming Pro Carbon
| Brand | MSI |
|---|---|
| Model | Z170A Gaming Pro Carbon |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium |
| Chipset | Intel Z170 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 3 x PCIe 3.0 x16 slots (support x16/x0/x4 or x8/x8/x4 modes) |
|---|---|
| PCI Express x1 | 4 x PCIe 3.0 x1 slots |
| Serial ATA (SATA) | 6 x SATA 6Gb/s ports* (2 ports reserved for SATA Express port) |
|---|---|
| SATA Express | 1 x SATAe port (PCIe 3.0 x2)*/ *** |
| M.2 | 1 x M.2 slot* - Supports PCIe 3.0 x 4 and SATA 6Gb/s standards, 4.2cm/ 6cm/ 8cm length M.2 SSD cards - Supports PCIe 3.0 x 4 NVMe Mini-SAS SSD with Turbo U.2 Host Card** * SATA5 and SATA6 ports will be unavailable when installing the M.2 module in M.2 slot. ** The Turbo U.2 Host Card is not included, please purchase separately. *** SATAe port is backward compatible with SATA. SATA and SATAe ports maximum support 6x SATAs or 1x SATAe + 4x SATAs. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1150 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |

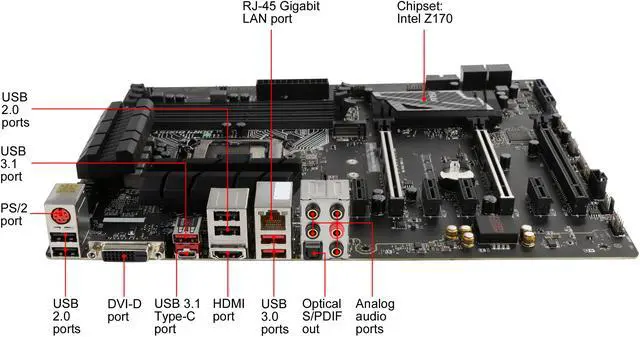

| Back I/O Ports | 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 2 x USB 3.1 Gen 1 Type-A / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x DVI-D port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 2 x USB 3.1 Gen1 ports 1 x USB 3.1 Gen2 port 1 x USB 3.1 Gen2 Type-C port |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 x OFC audio jacks |
| Onboard USB | 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x 4-pin CPU fan connectors 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x TBT connector |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | Supports 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket Supports DDR4-3600+(OC) Memory DDR4 Boost: Give your DDR4 memory a performance boost USB 3.1 Gen2 2X FASTER: USB 3.1 Gen2 offers performance twice as fast as a regular USB 3.0 connection Turbo M.2 32Gb/s + Turbo U.2 ready + USB 3.1 Gen2 Type-C + Type-A combo + SATA Express 10Gb/s Mystic Light: Customize and set up your own color scheme with GAMING APP to make your PC look & feel brand new! GAMING LAN with LAN Protect, powered by Intel: The best online gaming experience with lowest latency Audio Boost 3: Reward your ears with studio grade sound quality Nahimic Audio Enhancer: Immersive sound quality that pushes the limits of reality Military Class 5: The latest evolution in high quality components featuring the brand new Titanium Chokes Guard-Pro: Improved Protection and Power Efficiency MULTI-GPU with Steel Armor: Steel Armor PCI-E slots. Supports NVIDIA SLI & AMD Crossfire OBS Streaming software: Share your gaming achievements with the world! Game Boost: Generate more FPS in games with 1 push of a button EZ Debug LED: Easiest way to troubleshoot Overvoltage Protection: Prevent Unforeseen Damage GAMING Hotkey: Launch your favorite games with a single button Click BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable font SteelSeries Certified: Optimized for SteelSeries gaming gear GAMING CERTIFIED: 24-hour on- and offline game testing by eSports players for the best gaming experience Onboard Graphics - 1 x HDMI port, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz - 1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz Multi-GPU - Supports 3-Way AMD CrossFire Technology - Supports 2-Way NVIDIA SLI Technology BIOS - 1 x 128MB flash - UEFI AMI BIOS - ACPI 5.0, PnP 1.0a, SM BIOS 2.8 - Multi-language Mounting - 9 mounting holes |
|---|
| Package Contents | MOTHERBOARD, I/O Shield |
|---|
| First Listed on Newegg | November 07, 2016 |
|---|
