ASUS P5VDC-X LGA 775 VIA PT880 Ultra ATX Intel Motherboard

  • VIA PT880 Ultra
  • Pentium D / Pentium 4 HT / Celeron D
  • DDR2 533 / DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (18)
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the ASUS P5VDC-X

Model
Brand ASUS
Model P5VDC-X
Supported CPU
CPU Socket Type LGA 775
CPU Type Pentium D / Pentium 4 HT / Celeron D
FSB 1066/800 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset VIA PT880 Ultra
South Bridge VIA VT8237A
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 2x184pin + 2x240pin
Memory Standard DDR2 533 / DDR 400
Maximum Memory Supported 2GB (Note: DDR and DDR2 memory can not be used simultaneously)
Channel Supported Dual Channel
Expansion Slots
AGP Slots 1 x AGP 4X / 8X
PCI Express x16 1 (max. X4 mode)
PCI Slots 3 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA RAID 0/1
Onboard Audio
Audio Chipset ADI AD1986A
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8201CL PHY
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
COM 1
LPT 1
USB 1.1/2.0 4 x USB 2.0
S/PDIF Out 1 x Coaxial
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors support additional 4 ports
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging

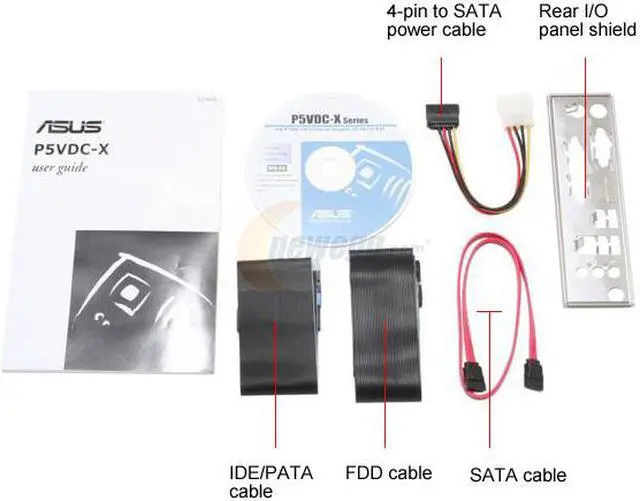

Package Contents P5VDC-X
User Manual
Driver Disk
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
Additional Information
First Listed on Newegg June 02, 2006

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
