ASUS P5W DH DELUXE/WIFI-AP <GREEN> LGA 775 Intel 975X ATX Intel Motherboard

OUT OF STOCK.
  • LGA 775
  • Intel 975X
  • 4×240pin DDR2 800
Specs
Reviews

Learn more about the ASUS P5W DH DELUXE/WIFI-AP <GREEN>

Model
Brand ASUS
Model P5W DH DELUXE/WIFI-AP <GREEN>
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Duo / Core 2 Extreme / Core 2 Quad
FSB 1066/800 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset Intel 975X
South Bridge Intel ICH7R
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 2 x PCI Express x16
PCI Express x1 2 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID 0/1/5/10 Matrix RAID
Additional RAID Controller Jmicron JMB363
Silicon Image 4723
Onboard Audio
Audio Chipset Realtek ALC882M
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E8053
Second LAN Chipset Marvell 88E8053
Max LAN Speed Dual 10/100/1000Mbps
Wireless LAN WiFi IEEE 802.11 b / g
Rear Panel Ports
PS/2 2
COM 1
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
eSATA 1 x eSATA 3Gb/s
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features ASUS Digital Home Features:
ASUS EZ-Backup:
2 x Serial ATA 3.0Gb/s support hardware RAID 0 or RAID 1 mode
Plug and play: Default setting in RAID 1 mode, no driver, no BIOS configuration required

ASUS WiFi-AP Solo :
54 Mbps IEEE 802.11g and backwards compatible with 11 Mbps IEEE 802.11b
Software Access point mode
Station mode : Infrastruceure mode and Ad-Hoc mode
1 x WiFi-AP Solo antenna jack

Digital Home Accessories:
1 x Asus DH Remote
1 x ASUS DH Remote Receiver
1 x ASUS MP3-In module
1 x ASUS WiFi-AP Solo Antenna
2 x ASUS EZ-Backup SATA cables

Asus DH Remote:
Power, Quick Power, Noise Off, EZ WiFi, Full Screen, AP Launch, Media Control Zone

ASUS MP3-In
Packaging

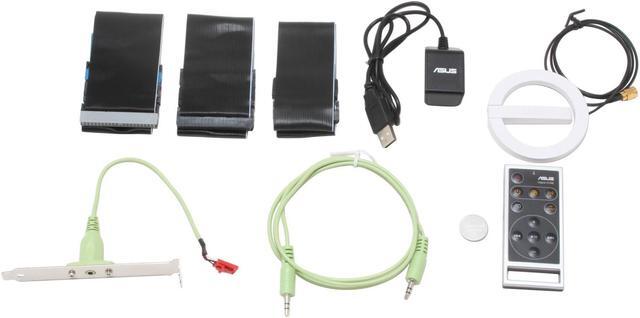

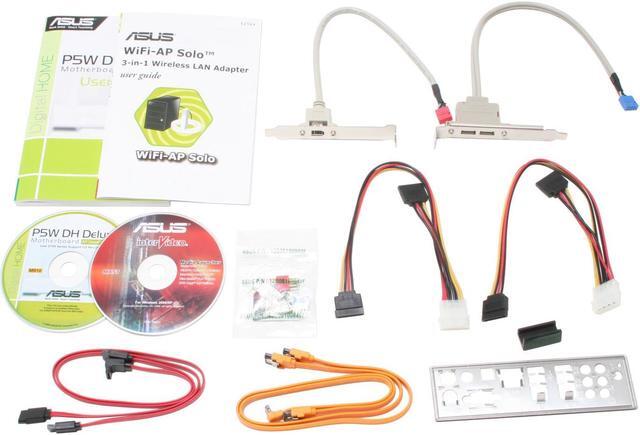

Package Contents P5W DH DELUXE/WIFI-AP <GREEN>
User Manual
Driver Disk
Rear I/O Panel Shield
FDD Cable
2 x IDE/PATA Cable
2 x SATA Cable
2 x eSATA Cable
2 x Power Cable
ASUS Q-Connector Kit

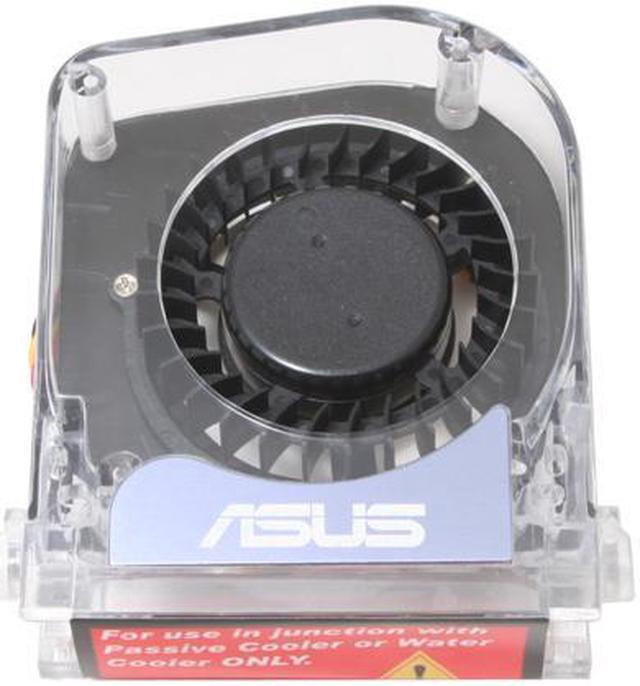

Optional Fan
USB Bracket
IEEE 1394 Bracket
Audio Cable
ASUS MP3-In Module
ASUS Remote Receiver
ASUS DH Remote
Wireless Antenna
Battery
Details
Windows Vista Certified for Windows Vista
Additional Information
Date First Available June 28, 2006
