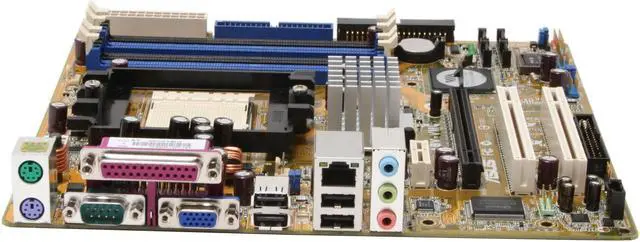

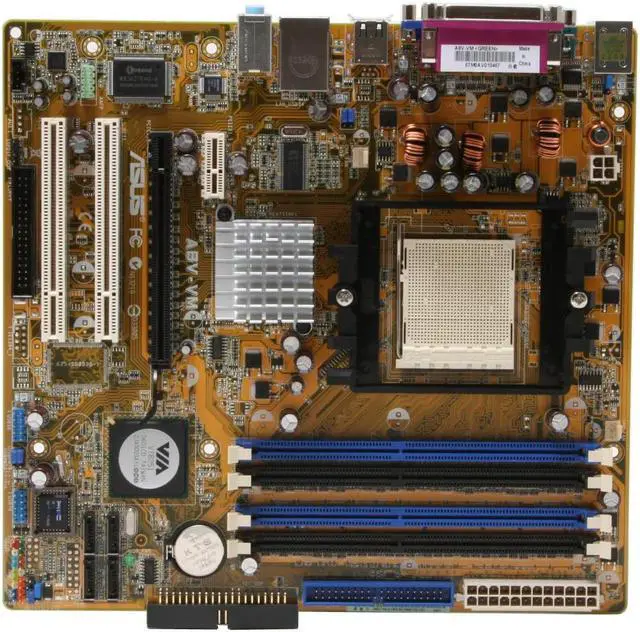

ASUS A8V-VM 939 VIA K8M890 Micro ATX AMD Motherboard

(83) Write a Review
  • VIA K8M890
  • Athlon 64 X2 / Athlon 64 FX / Athlon 64
  • DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (83)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASUS A8V-VM

Model
Brand ASUS
Model A8V-VM
Supported CPU
CPU Socket Type 939
CPU Type Athlon 64 X2 / Athlon 64 FX / Athlon 64
FSB 1000 MHz
Chipsets
Chipset VIA K8M890
South Bridge VIA VT8251
Memory
Number of Memory Slots 4x184pin
Memory Standard DDR 400
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA RAID 0/1/0+1/5
Onboard Video
Onboard Video Chipset VIA Chrome9 IGP
Onboard Audio
Audio Chipset ADI AD1986A
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8201CL PHY
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.0"
Power Pin 24 Pin
Packaging

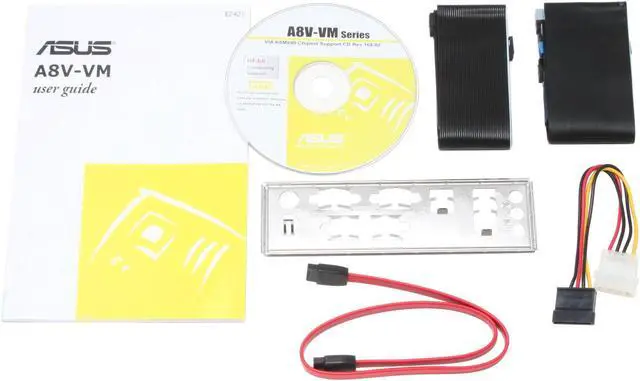

Package Contents A8V-VM
User Manual
Driver Disk
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
Power Cable
Additional Information
Date First Available August 11, 2006
