Brand | ASUS |
---|---|
Model | P5VD2-X |
CPU Socket Type | LGA 775 |
---|---|
CPU Type | Core 2 Extreme / Core 2 Duo / Pentium EE / Pentium |
FSB | 1066/800 MHz |
Supported CPU Technologies | Hyper-Threading Technology |
Chipset | VIA PT890 |
---|---|
South Bridge | VIA VT8237A |
Onboard Video Chipset | None |
---|
Number of Memory Slots | 2x240pin |
---|---|
Memory Standard | DDR2 533 |
Maximum Memory Supported | 4GB |
PCI Express x16 | 1 x PCI Express x16 |
---|---|
PCI Express x1 | 1 x PCI Express x1 |
PCI Slots | 4 x PCI Slots |
PATA | 2 x ATA100 4 Dev. Max |
---|---|
SATA 1.5Gb/s | 2 x SATA 1.5 Gb/s |
SATA 3Gb/s | 1 x Internal SATA 3.0 Gb/s port 1 x External SATA 3.0 Gb/s port (SATA On-the-Go) |
SATA RAID | 0/1 |
Additional RAID Controller | JMB363 |
Audio Chipset | Realtek ALC883 |
---|---|
Audio Channels | 6 Channels |
LAN Chipset | Realtek RTL8110SC |
---|---|
Max LAN Speed | 10/100/1000Mbps |
PS/2 | 2 |
---|---|
COM | 1 |
LPT | 1 |
USB 1.1/2.0 | 4 x USB 2.0 |
Audio Ports | 3 Ports |
Onboard USB | 2 x USB 2.0 connectors support 4 ports |
---|
Form Factor | ATX |
---|---|
Dimensions (W x L) | 12.0" x 8.6" |
Power Pin | 24 Pin |
Features | Note: PCI-E x 1 and JMicron JMB363 SATA controller can not be used simultaneously |
---|

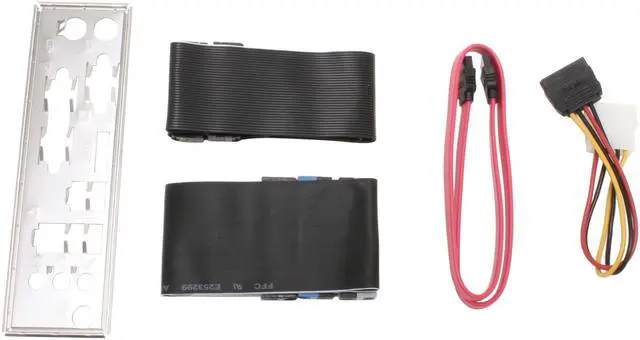

Package Contents | P5VD2-X Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable |
---|
Windows Vista | Certified for Windows Vista |
---|
Date First Available | February 01, 2007 |
---|
