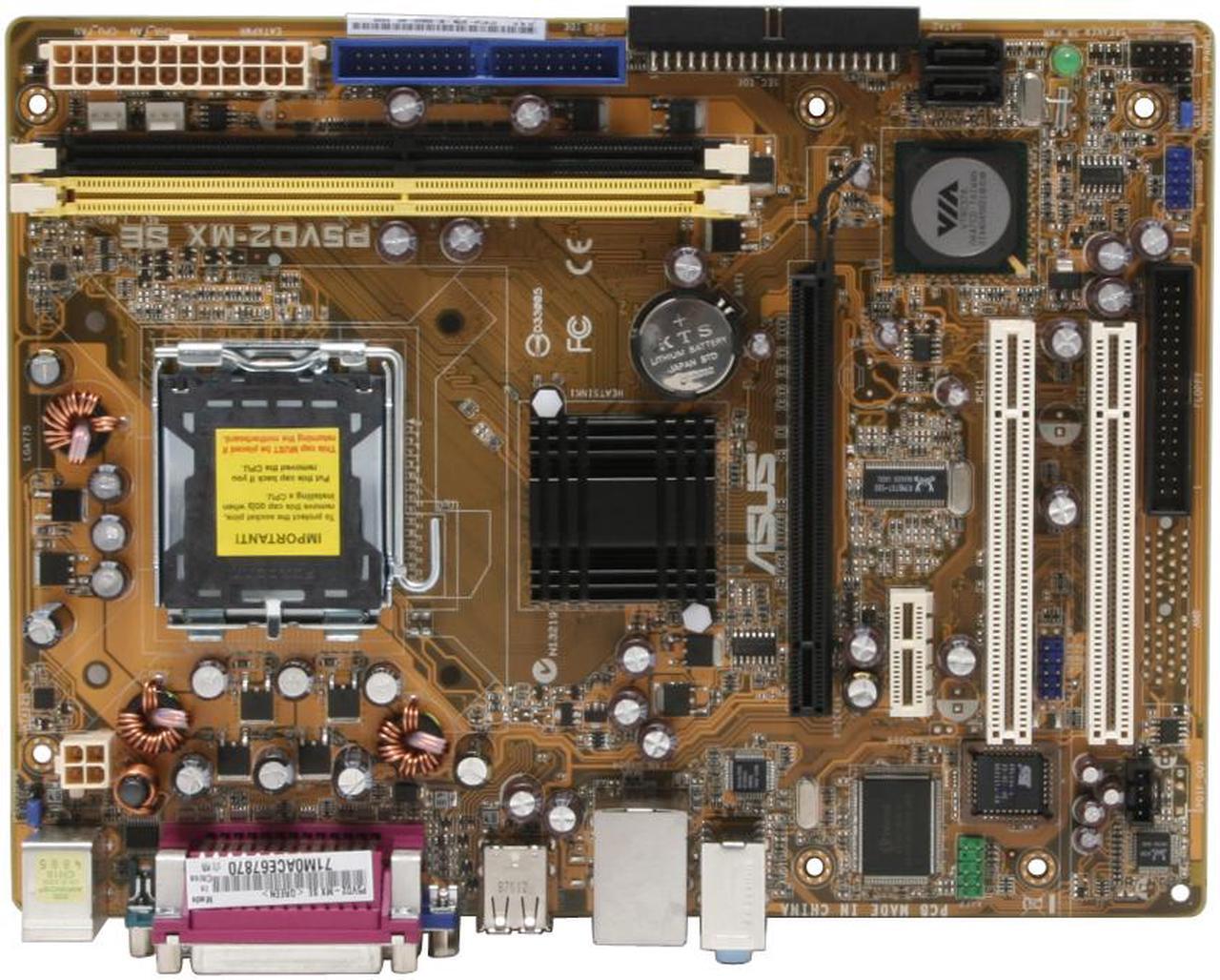

ASUS P5VD2-MX SE LGA 775 VIA P4M890 Micro ATX Intel Motherboard

(40) Write a Review
  • VIA P4M890
  • Core 2 Duo / Pentium D / Celeron D
  • DDR2 533
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (40)

Learn more about the ASUS P5VD2-MX SE

Model
Brand ASUS
Model P5VD2-MX SE
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Duo / Pentium D / Celeron D
FSB 1066/800 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset VIA P4M890
South Bridge VIA VT8237A
Onboard Video
Onboard Video Chipset S3 Graphics UniChrome Pro IGP
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR2 533
Maximum Memory Supported 2GB
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA RAID 0/1
Onboard Audio
Audio Chipset Realtek ALC660
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8201CL PHY
Max LAN Speed 100Mbps

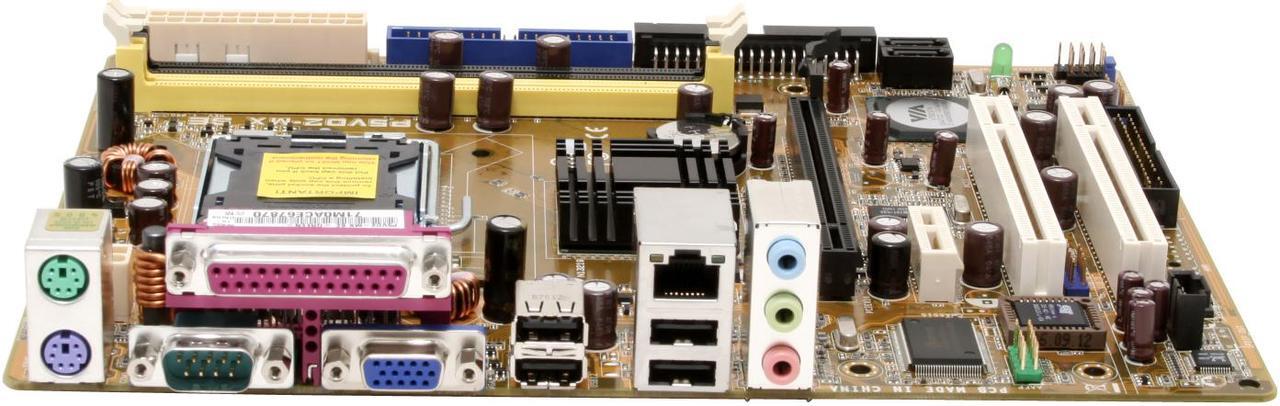

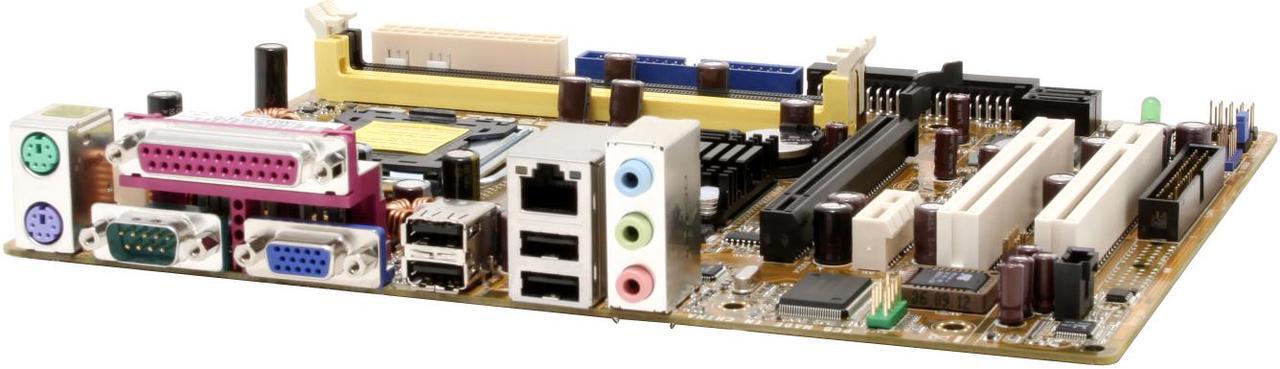

Rear Panel Ports
Back I/O Ports 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors support 4 ports
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 7.2"
Power Pin 24 Pin
Packaging
Package Contents P5VD2-MX SE
Driver Disk
User Manual

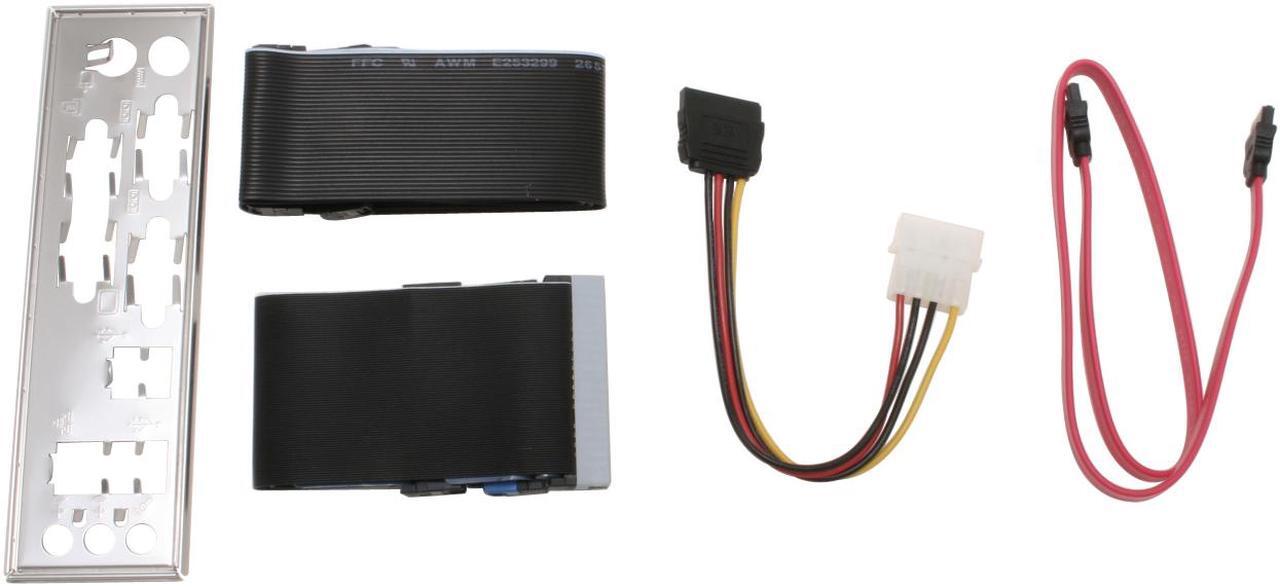

Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
Additional Information
Date First Available February 05, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
