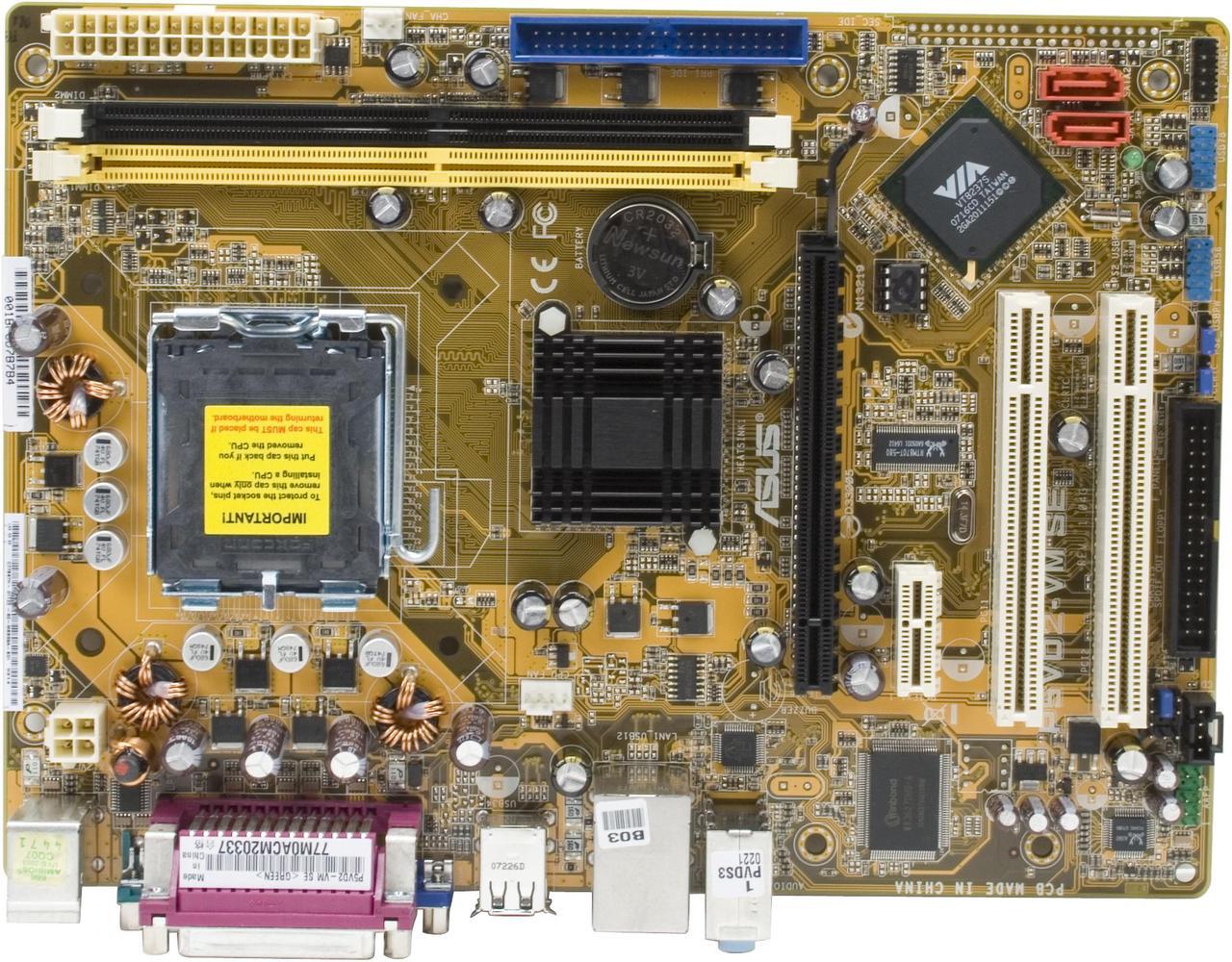

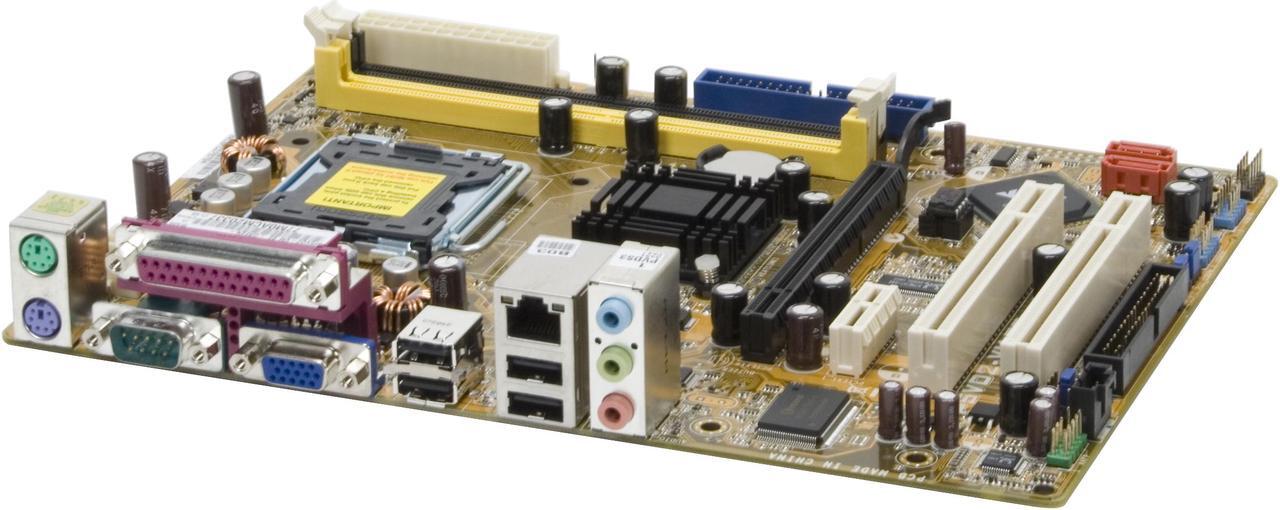

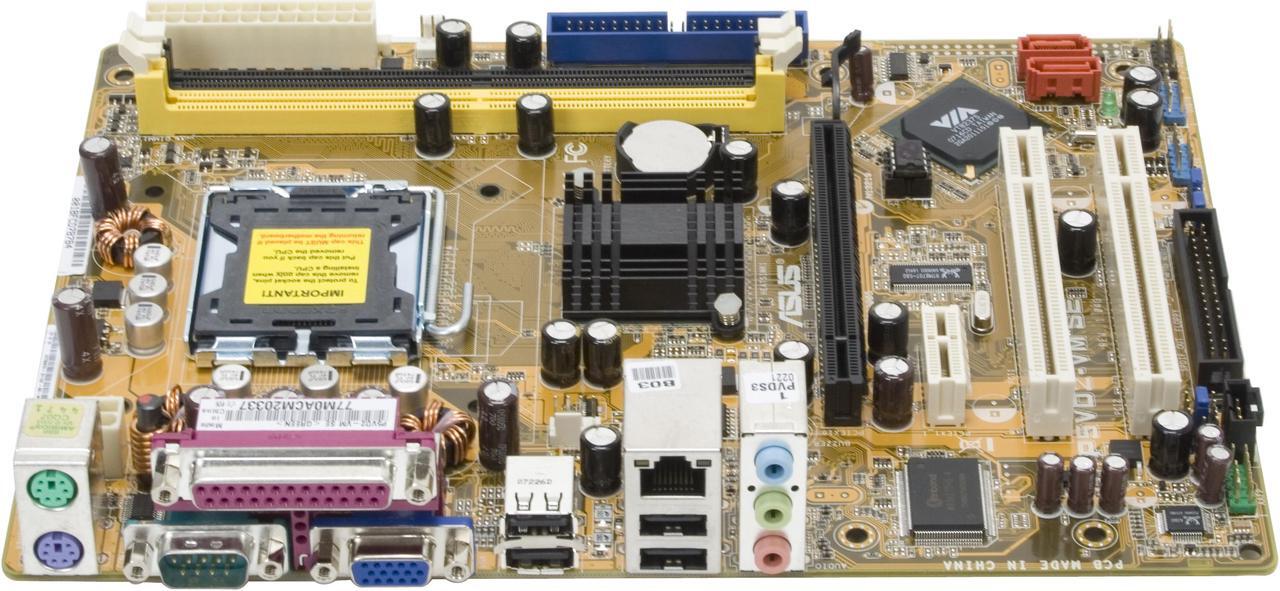

ASUS P5VD2-VM SE LGA 775 VIA P4M900 Micro ATX Intel Motherboard
- VIA P4M900
- Core 2 Duo / Pentium D / Celeron D
- DDR2 667
Specs
Reviews (36)
Learn more about the ASUS P5VD2-VM SE
| Brand | ASUS |
|---|---|
| Model | P5VD2-VM SE |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Duo / Pentium D / Celeron D |
| FSB | 1066/800 MHz |
| Chipset | VIA P4M900 |
|---|---|
| South Bridge | VIA VT8237S |
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 667 |
| Maximum Memory Supported | 4GB |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA 3Gb/s | 2 x SATA 3Gb/s |
| SATA RAID | 0/1 |
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | VIA VT8237S |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 7.0" |
| Power Pin | 24 Pin |
| Windows Vista | Certified for Windows Vista |
|---|
| Date First Available | August 13, 2007 |
|---|
