Brand | ASUS |
---|---|
Model | P5E3 Deluxe/WiFi-AP |
CPU Socket Type | LGA 775 |
---|---|
CPU Type | Quad-core / Core 2 Extreme / Core 2 Duo / Pentium Extreme / Pentium D / Pentium 4 |
FSB | 1600/1333 MHz |
Supported CPU Technologies | Hyper-Threading Technology |
Chipset | Intel X38 |
---|---|
South Bridge | Intel ICH9R |
Number of Memory Slots | 4x240pin |
---|---|
Memory Standard | DDR3 1800(O.C.)/1600(O.C.)/1333/1066/800 MHz |
Maximum Memory Supported | 8GB |
Channel Supported | Dual Channel |
PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 |
---|---|
PCI Express x16 | 1 x PCI Express x16 (x4 or x1 mode) |
PCI Express x1 | 2 x PCI Express x1 |
PCI Slots | 2 x PCI Slots |
PATA | 1 x ATA100 2 Dev. Max |
---|---|
SATA 3Gb/s | 6 x SATA 3Gb/s |
SATA RAID | 0/1/5/10 Matrix RAID |
Audio Chipset | ADI AD1988B |
---|---|
Audio Channels | 8 Channels |
LAN Chipset | Marvell 88E8056 |
---|---|
Second LAN Chipset | Realtek 8110SC |
Max LAN Speed | Dual 10/100/1000Mbps |
Wireless LAN | WiFi IEEE 802.11 b / g |
PS/2 | 1 |
---|---|
USB 1.1/2.0 | 6 x USB 2.0 |
IEEE 1394 | 1 x IEEE 1394a |
eSATA | 2 x eSATA 3Gb/s |
S/PDIF Out | 1 x Optical, 1 x Coaxial |
Audio Ports | 6 Ports |
Onboard USB | 4 x USB 2.0 |
---|---|
Onboard 1394 | 1 x 1394a |
Form Factor | ATX |
---|---|
Dimensions (W x L) | 12.0" x 9.6" |
Power Pin | 24 Pin |
Features | ASUS WiFi-AP @n 300Mbps IEEE 802.11n and backwards compatible with IEEE 802.11g / b - Software Access Point mode |
---|

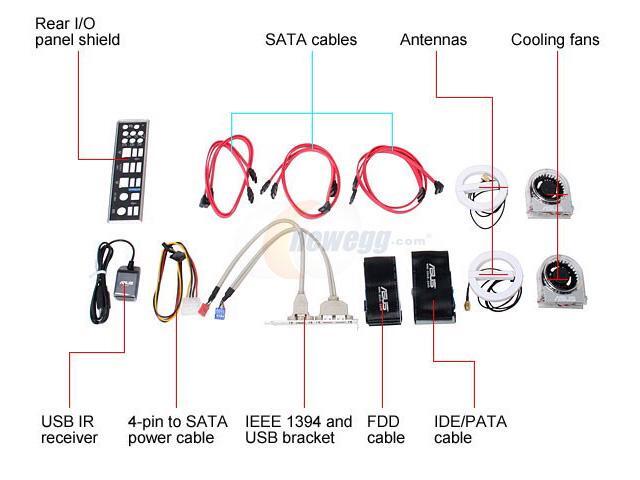

Package Contents | UltraDMA 133/100/66 cable FDD cable 6 x Serial ATA cables 1 x 2-port Serial ATA power cable ASUS Q-shield User's manual ASUS WiFi-AP @n manual 3 in 1 Q-connector 1 x 2-port USB2.0 / 1-port IEEE1394 module 2 x Optional Fan for Water-Cooling or Passive-Cooling only ASUS WiFi-AP @n omni-directional antenna |
---|
Windows Vista | Certified for Windows Vista |
---|
Date First Available | October 17, 2007 |
---|
