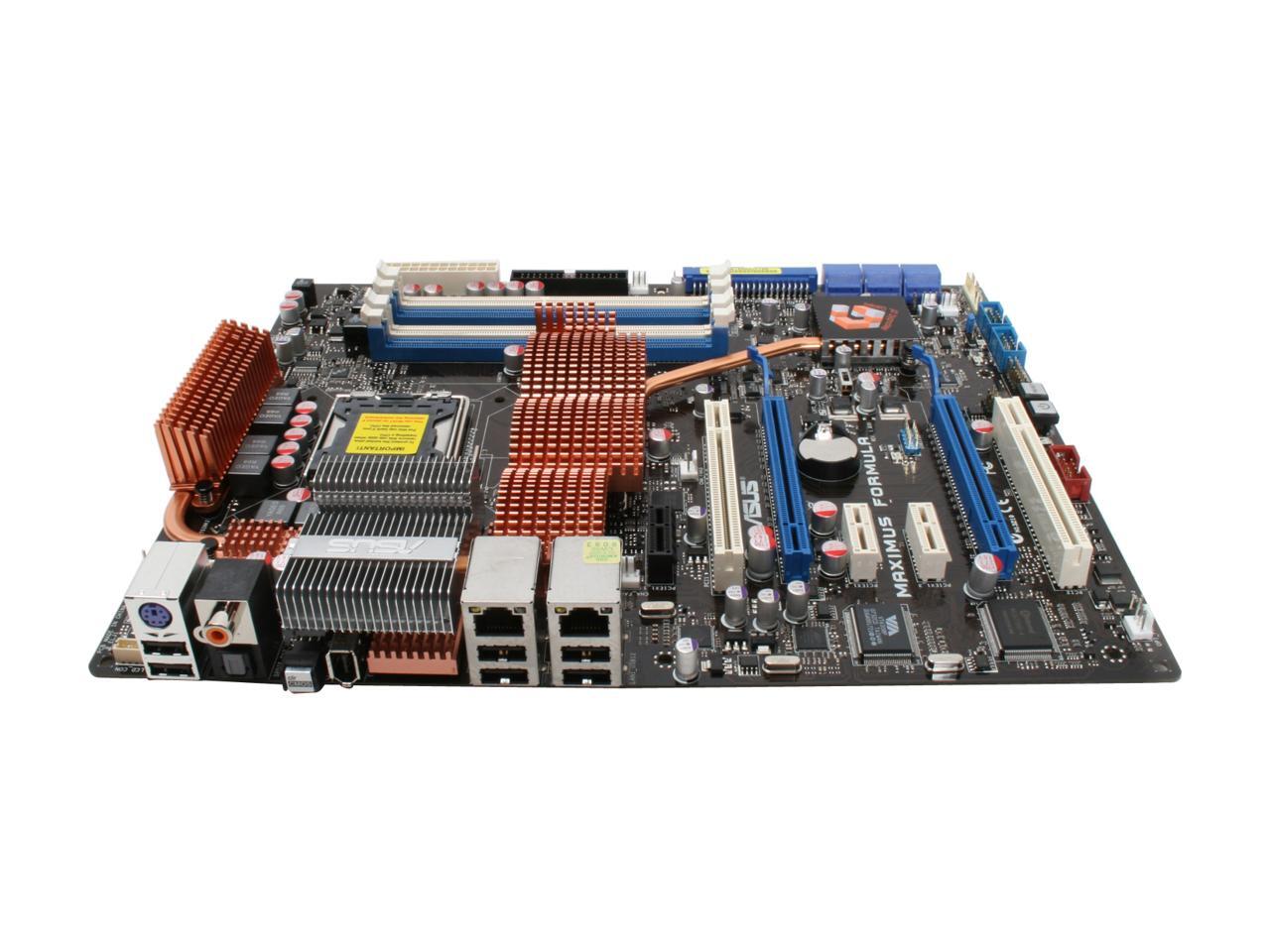

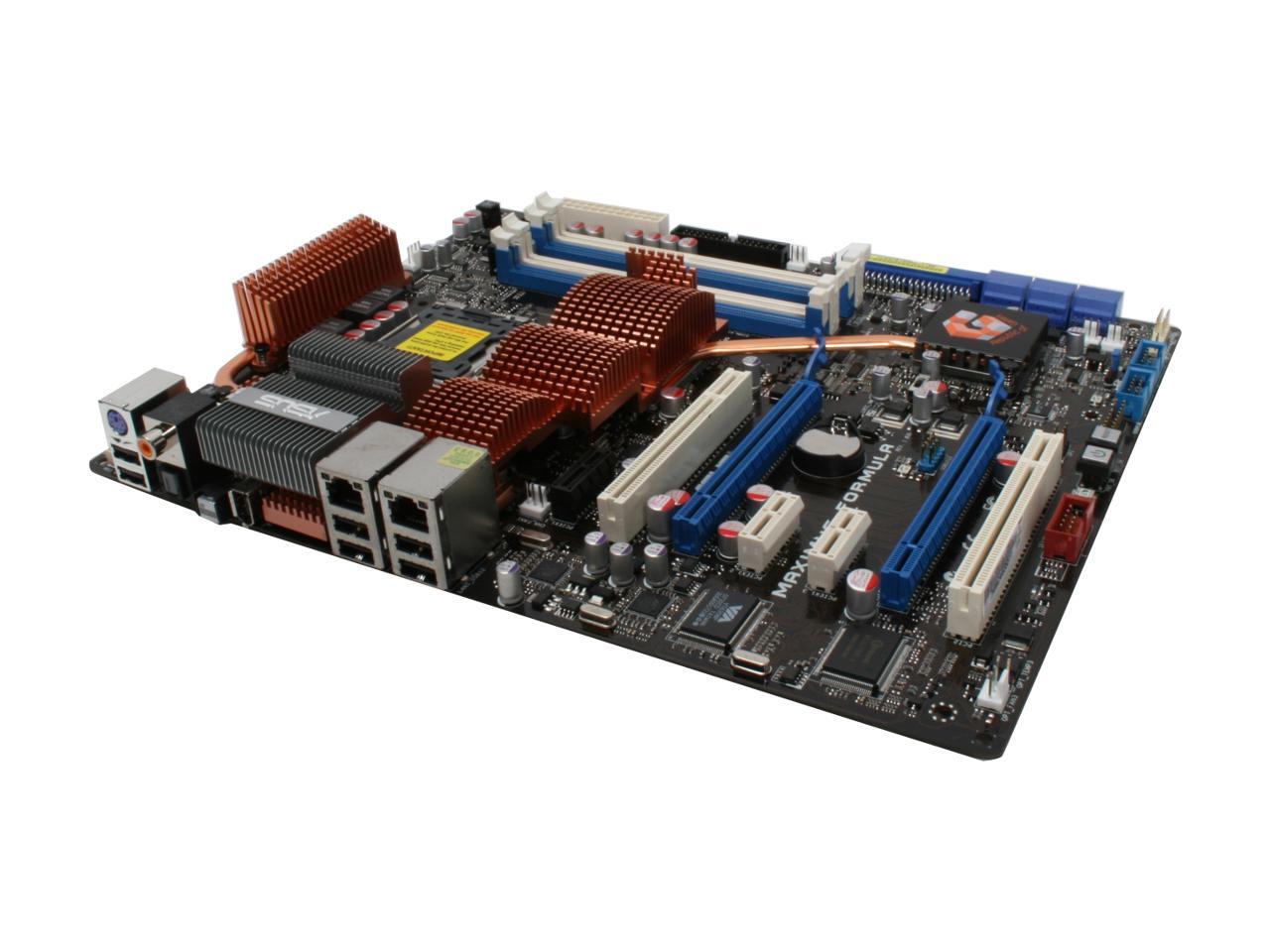

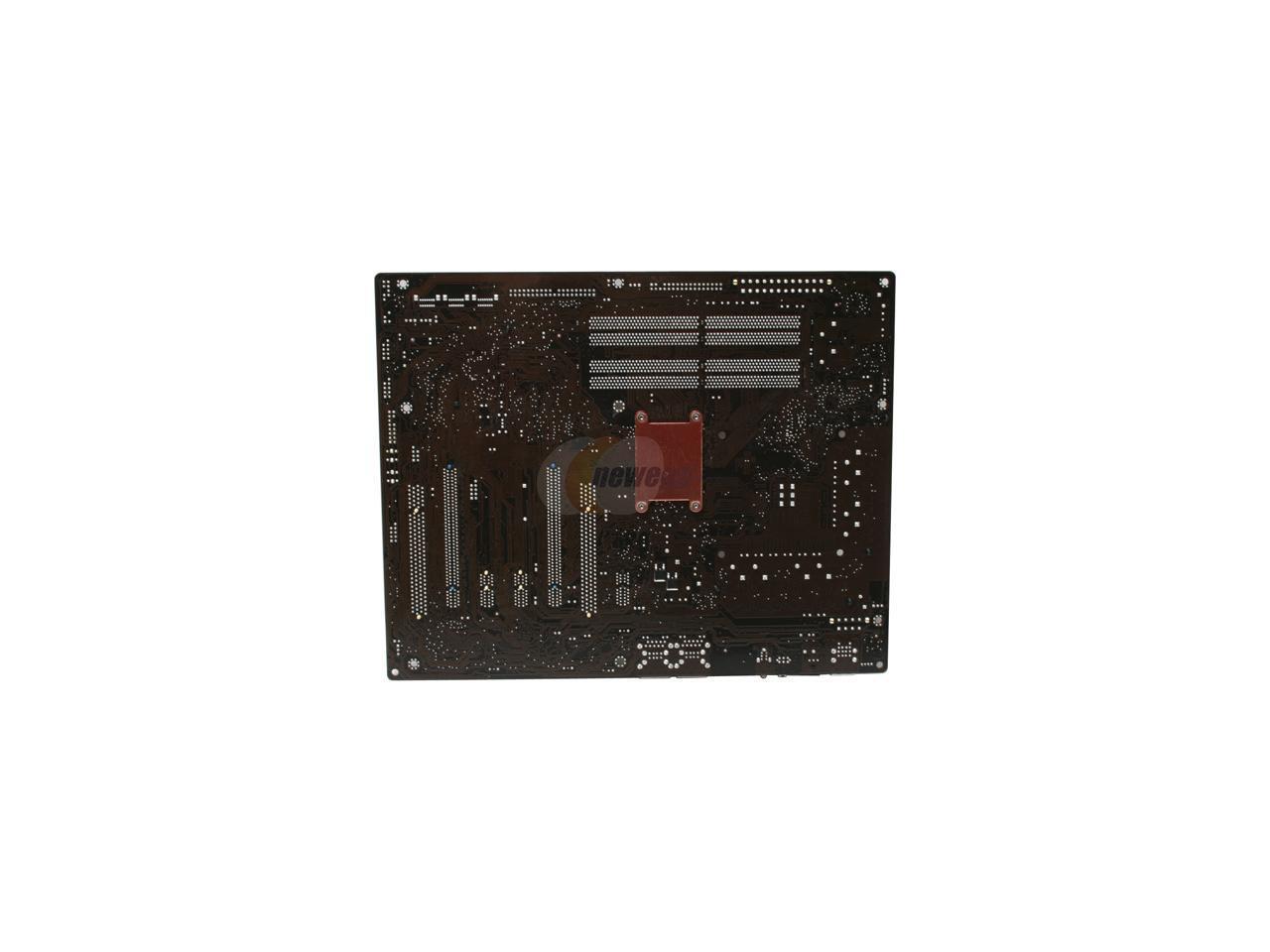

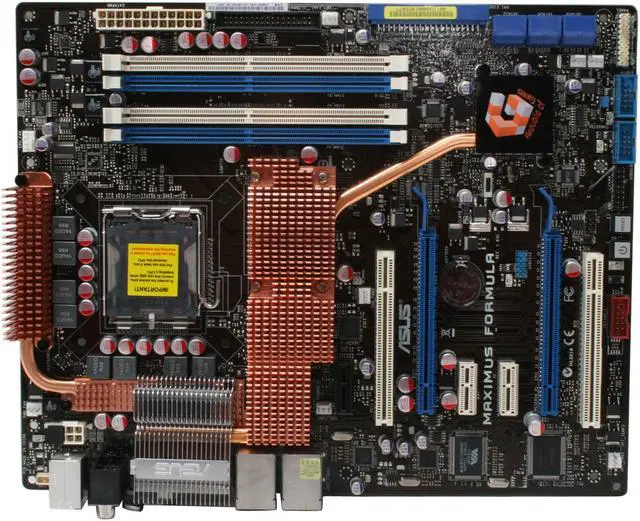

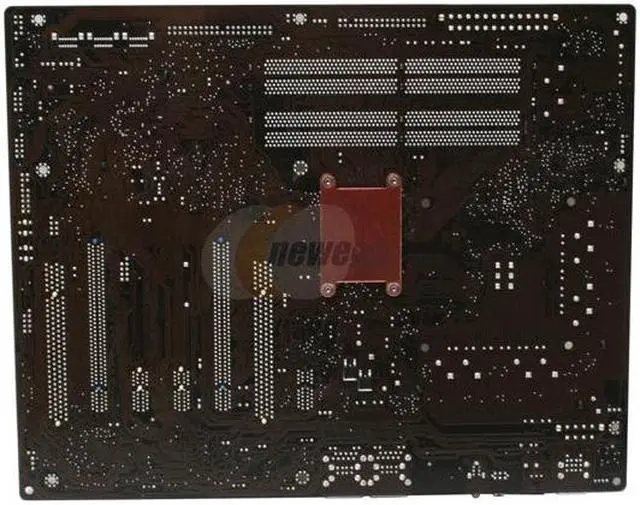

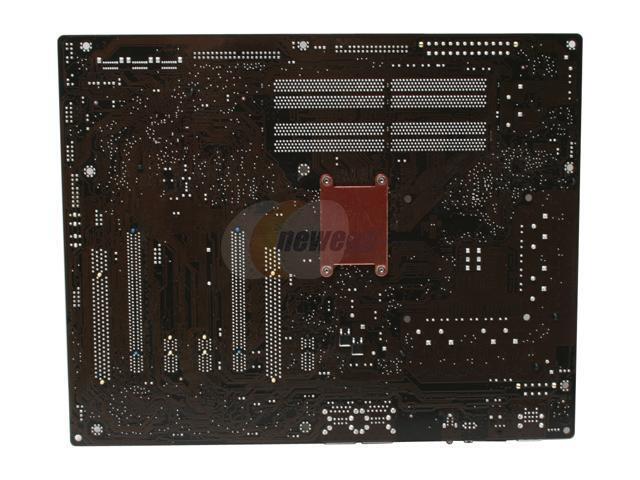

ASUS MAXIMUS FORMULA LGA 775 Intel X38 ATX Intel Motherboard

(204) Write a Review
Check more best sellers of "Intel Motherboards"
Check more lowest price of "Intel Motherboards"
Check more deals of "Intel Motherboards"
OUT OF STOCK.
Newegg PC Builder
  • Intel X38
  • Quad-core / Core 2 Extreme / Core 2 Duo / Pentium Extreme / Pentium D / Pentium 4
  • DDR2 1200/1066/800/667MHz DDR2 1200 is O.C. speeds.
🔥Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download and USB versions available
Specs
Reviews

Learn more about the ASUS MAXIMUS FORMULA

Model
Brand ASUS
Model MAXIMUS FORMULA
Supported CPU
CPU Socket Type LGA 775
CPU Type Quad-core / Core 2 Extreme / Core 2 Duo / Pentium Extreme / Pentium D / Pentium 4
FSB 1600/1333 MHz
Chipsets
Chipset Intel X38
South Bridge Intel ICH9R
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 1200/1066/800/667MHz
DDR2 1200 is O.C. speeds.
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 x PCI Express 2.0 x16
PCI Express x1 3 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID 0/1/5/10
Additional RAID Controller JMicron JMB368 PATA controller
Onboard Audio
Audio Chipset ADI AD1988B
Audio Channels 8 Channels
Onboard LAN
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 1 x PS/2 / 1 x S/PDIF Coaxial Out / 6 x USB 2.0/1.1
PS/2 1
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394a
S/PDIF Out 1 x Optical, 1 x Coaxial
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging

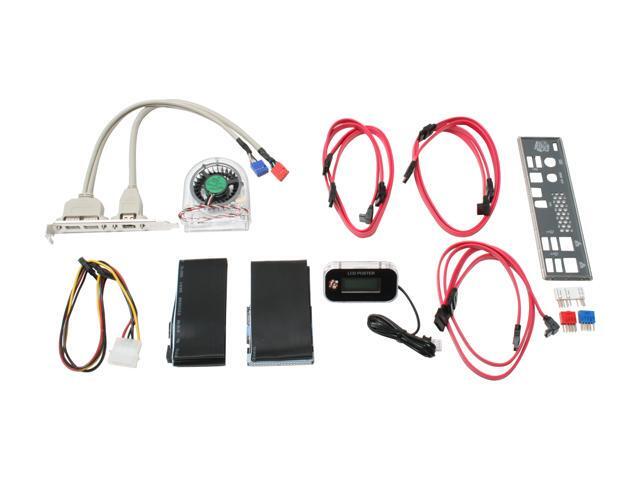

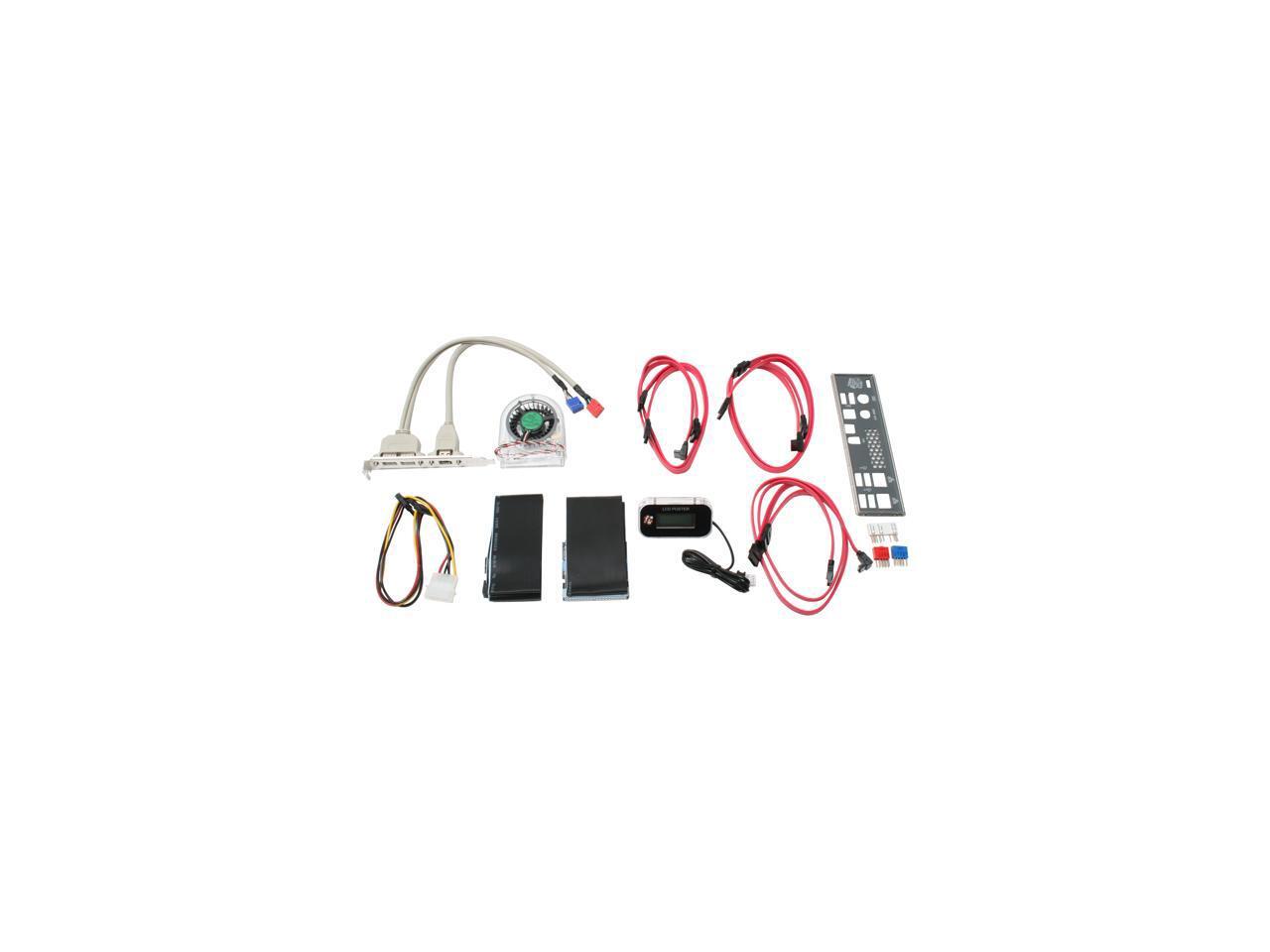

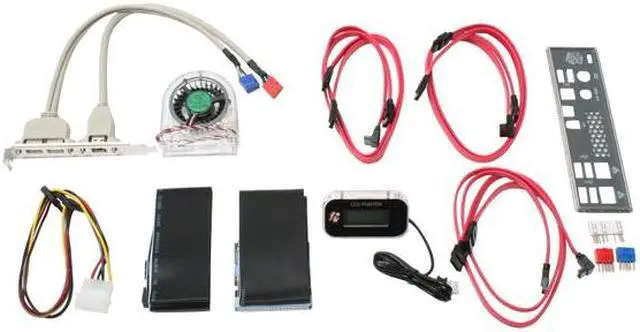

Package Contents MAXIMUS FORMULA
LCD Poster
ASUS Optional Fan

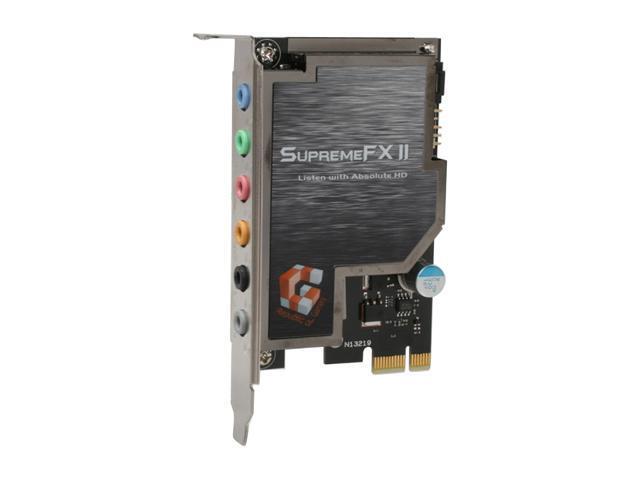

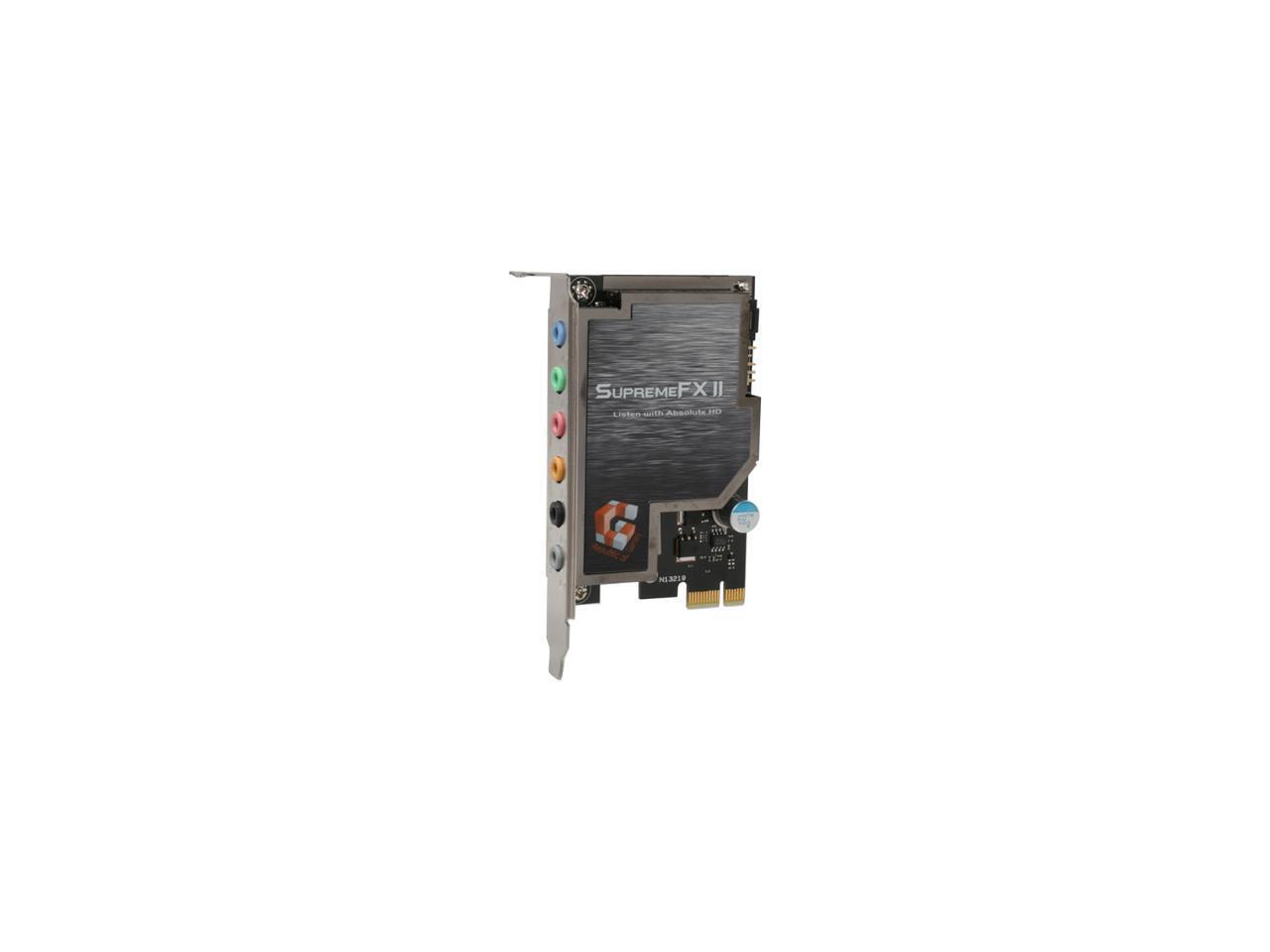

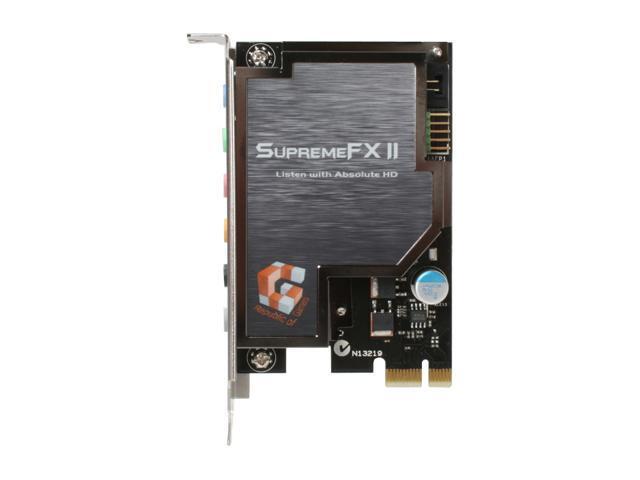

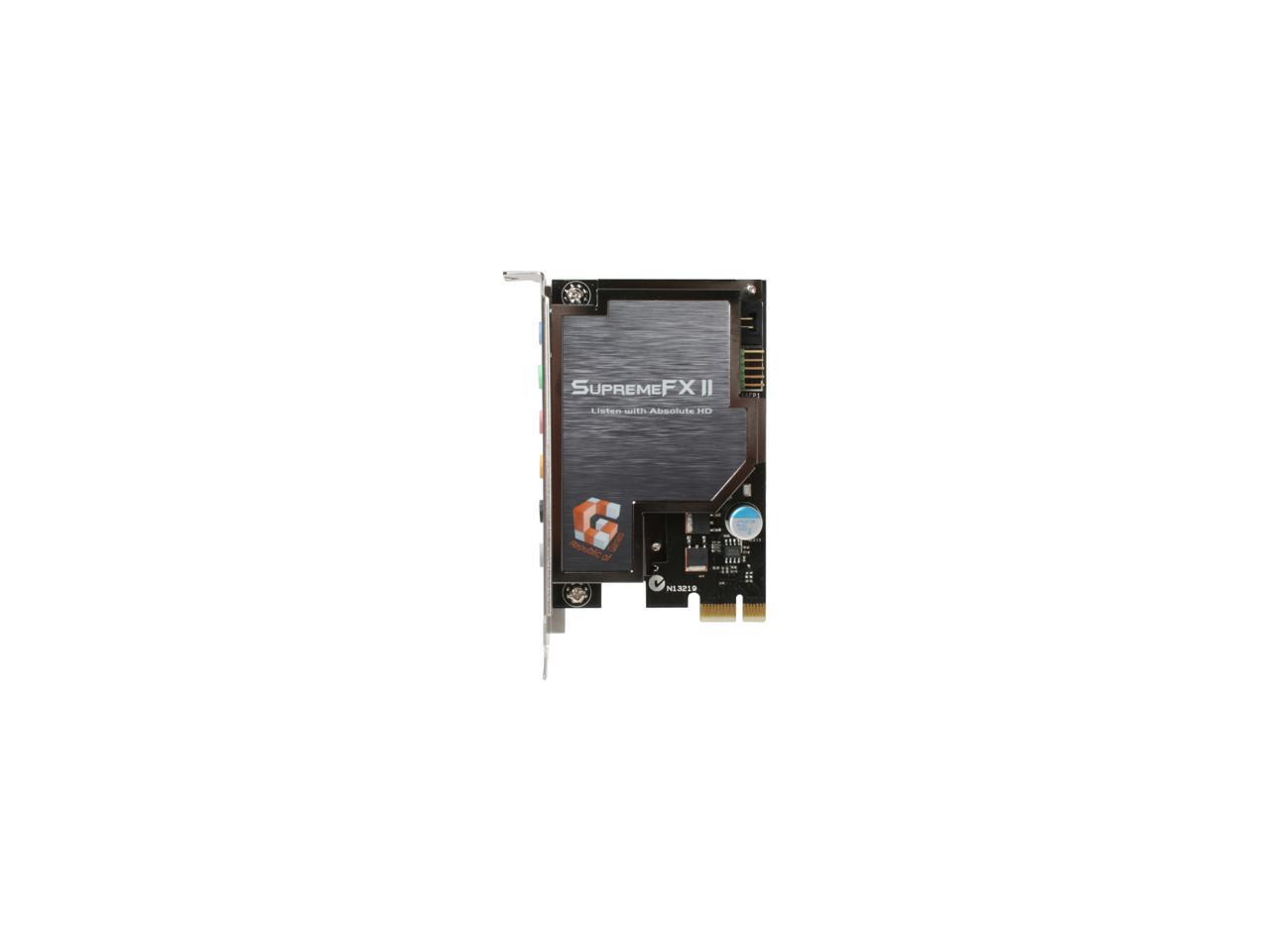

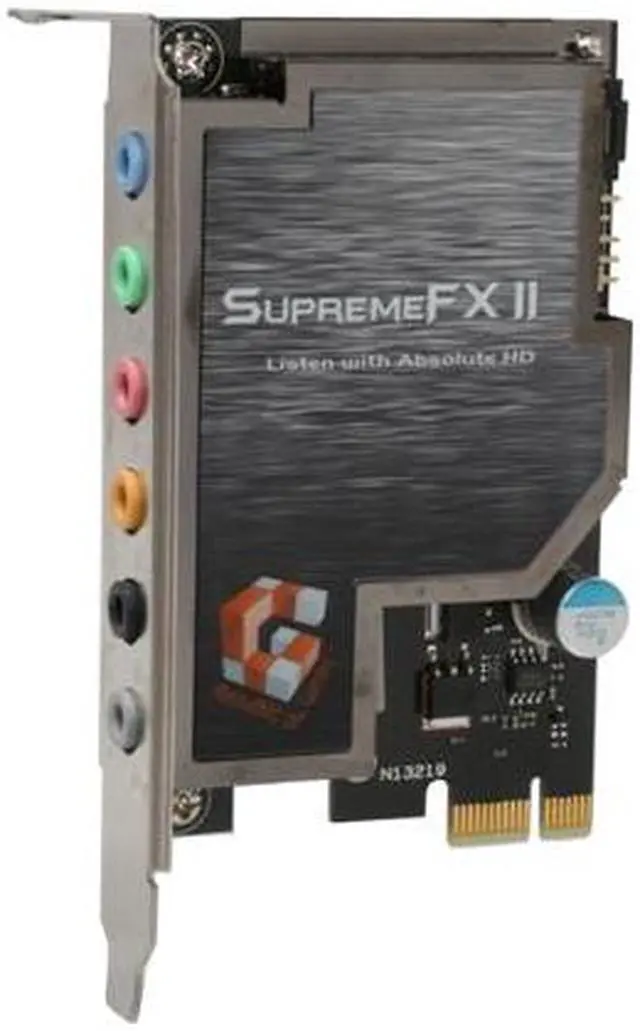

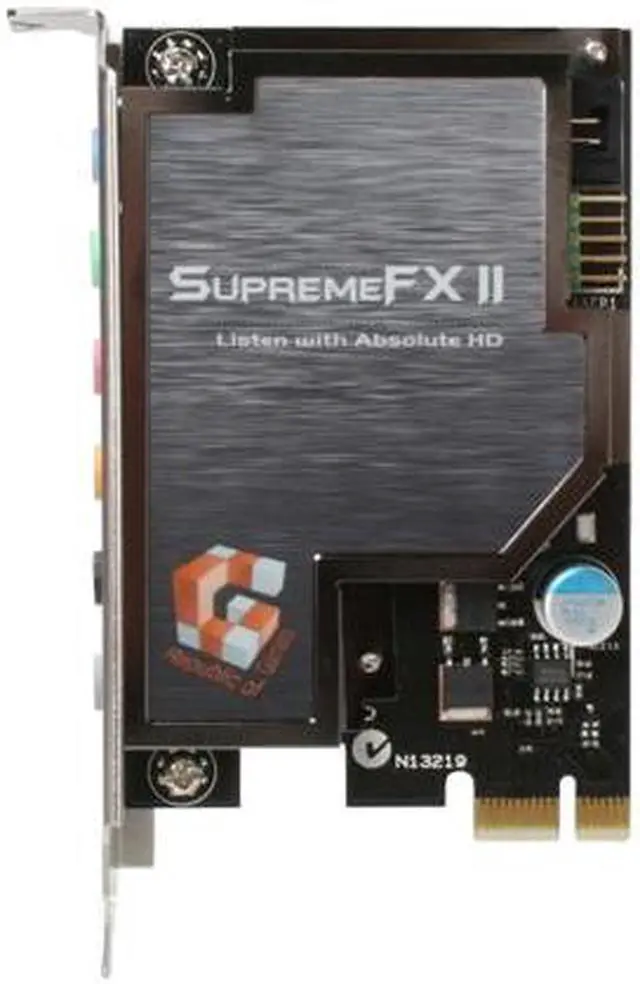

SupremeFX II Audio Card
3 in 1 ASUS Q-Connector Kit
UltraDMA 133/100/66 cable
Floppy disk drive cable
6 x SATA cables
SATA power cables
2-port USB2.0 + IEEE 1394a module
I/O Shield
User's manual
Driver Disk
Game Disk
Details
Windows Vista Certified for Windows Vista
Additional Information
Date First Available November 02, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
