ASUS P5E3 PREMIUM/WIFI-AP @n LGA 775 Intel X48 ATX Intel Motherboard
- Intel X48
- Core 2 Duo / Core 2 Extreme / Core 2 Quad
- DDR3 2000(OC)/1800(OC)/1600
Specs
Reviews (92)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASUS P5E3 PREMIUM/WIFI-AP @n
| Brand | ASUS |
|---|---|
| Model | P5E3 PREMIUM/WIFI-AP @n |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Duo / Core 2 Extreme / Core 2 Quad |
| Chipset | Intel X48 |
|---|---|
| South Bridge | Intel ICH9R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 2000(OC)/1800(OC)/1600 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 3 x PCIe x16 (blue @PCIe 2.0 x16 mode, black @PCIe x4 or x1 mode) |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA RAID | 0/1/5/10 |
|---|
| Audio Chipset | ADI AD1988B |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Marvell 88E8056 |
|---|---|
| Second LAN Chipset | Marvell 88E8056 |
| Max LAN Speed | 2 x 1Gbps |
| Wireless LAN | WiFi IEEE 802.11 b / g |
| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x PS/2 / 1 x S/PDIF Coaxial Out / 2 x eSATA 3GB/S / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 2 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | EPU: Enables the Most Energy Efficient Motherboard in the World Express Gate: Surf on the Internet in 5-second-boot time without entering Windows WiFi-AP @n: 6 Times Faster than 802.11g WiFi Technology Intel X48 Chipset: Officially supports FSB 1600 Mhz ASUS 3rd Generation 8-phase Power Design Precision Tweaker 2 ASUS Fanless Design – Pure Copper Heat-pipe Solution ASUS Fanless Design – Stack Cool 2 ASUS AI Direct Link AI Audio 2 AI Noise Filter AL Slot Detector |
|---|

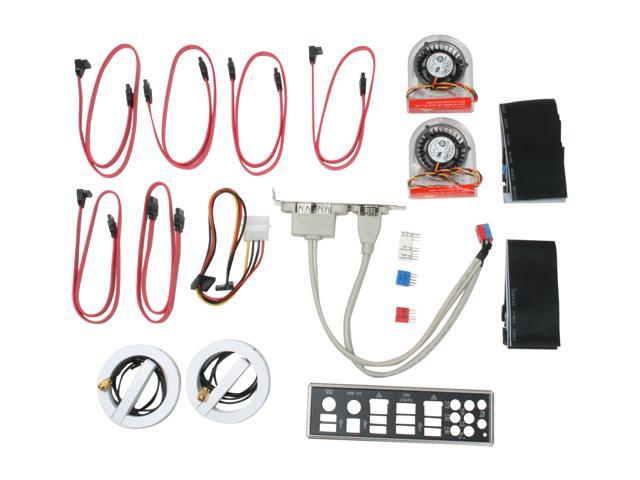

| Package Contents | P5E3 PREMIUM/WIFI-AP @n Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable WiFi Antena USB & IEEE1394 Bracket Optional Fan ASUS Q-Connector Kit |
|---|
| First Listed on Newegg | March 24, 2008 |
|---|
