| Brand | ASUS |
|---|---|
| Model | RAMPAGE FORMULA |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| FSB | 1600/1333 MHz |
| Chipset | Intel X48 |
|---|---|
| South Bridge | Intel ICH9R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4×240pin |
|---|---|
| Memory Standard | DDR2 1200(OC)/1066/800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA 3Gb/s | 6 x SATA 3Gb/s |
| Audio Channels | 8 Channels |
|---|
| Max LAN Speed | Dual 10/100/1000Mbps |
|---|
| PS/2 | 1 |
|---|---|
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Power Pin | 24 Pin |
| Features | Pin Fin Thermal Module: Perfect Heat-exchange Surface CPU Level Up: A simple click for instant upgrade! SupremeFX II: Listen with Absolute HD ASUS EPU (Energy Processing Unit) Extreme Tweaker ASUS AI Gear 3 AI Overclocking (intelligent CPU frequency tuner) COP EX (Component Overheat Protection - EX) Voltiminder LED ASUS C.P.R.(CPU Parameter Recall) |
|---|

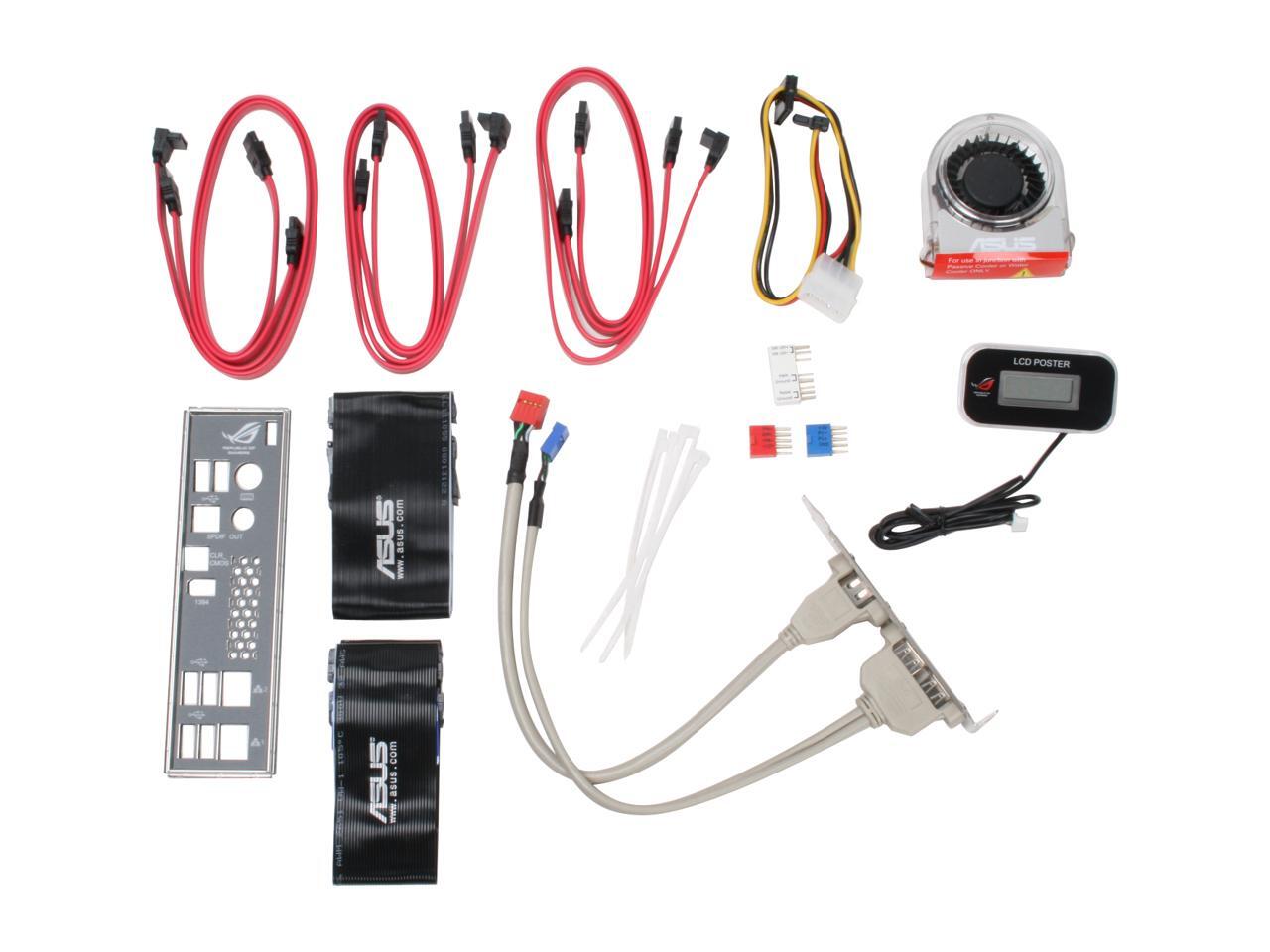

| Package Contents | RAMPAGE FORMULA Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable Game Disk USB & IEEE 1394 Bracket Optional Fan ASUS Q-Connector Kit Display Panel SupermeFX II |
|---|
| Windows Vista | Certified for Windows Vista |
|---|
| Date First Available | March 24, 2008 |
|---|
Pros: This is the greatest DDR2 motherboard out there. I've owned it for 2 months and I am still in love with it. The BIOS settings allow you to change anything, even tRD for memory (which can give you great bandwidth gains.) It overclocks wonderfully (thanks in part to the Intel X48 chipset.) CPU and RAM booted right up first boot, no problems. It's amazingly stable; in fact it's the most stable motherboard I've ever owned. I love this motherboard. Works with my ATI 4870 wonderfully.
Cons: NB gets extremely hot. I'm overclocked to 450 FSB, and with the minimum NB voltage to keep my rig stable (1.54v) it idles around 60C. This is not uncommon. That's really the only con I can think of.
Overall Review: If you're using a 45nm CPU, disable Loadline Calibration until you update to BIOS 0406 (it's not listed on their website, just google it.) This BIOS fixes LLC for 45nm CPUs; otherwise you will get crashes and possibly fry the CPU. NB gets hot as hell. Remove the heatsinks, remove the junk thermal pads and apply new compound (though rumor has it this voids your warranty. But you won't need the warranty because this motherboard is like a rock.) Attach the LCD poster BEFORE you put the motherboard into your computer. It's in a very hard-to-reach spot once it's in your case. I run a Q9450 quad core, 8 GB DDR2-1000, ATI HD 4870, WD Velociraptor. Everything works like a dream. I hope this review helped you. You won't be disappointed.
