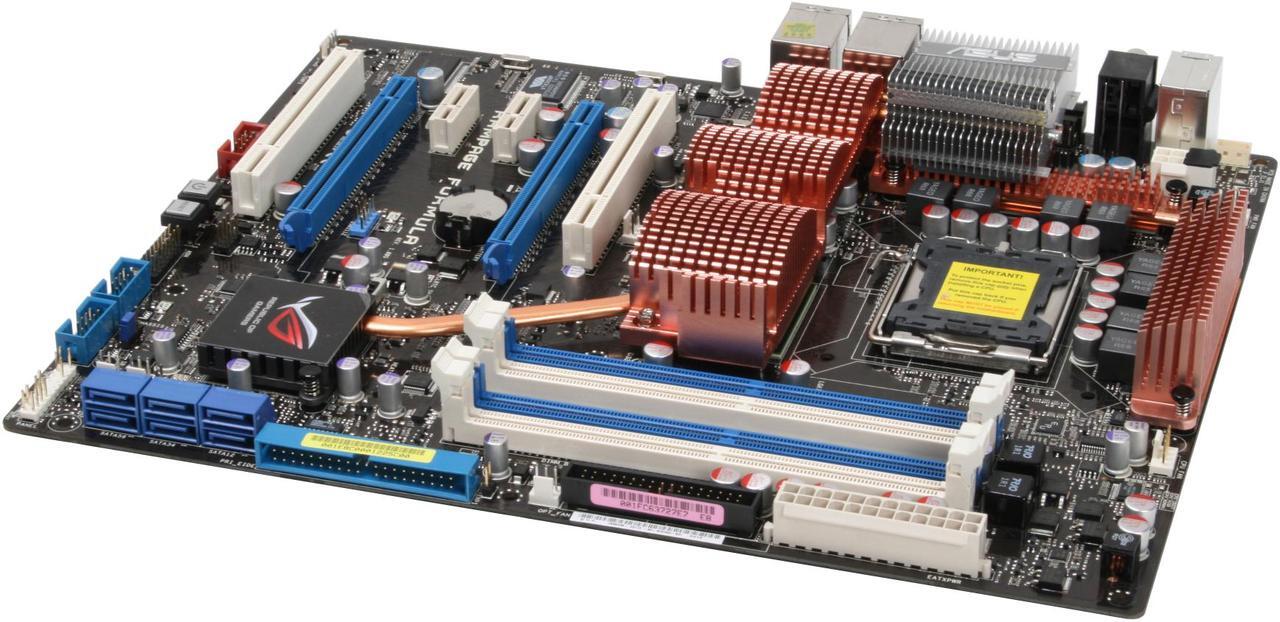

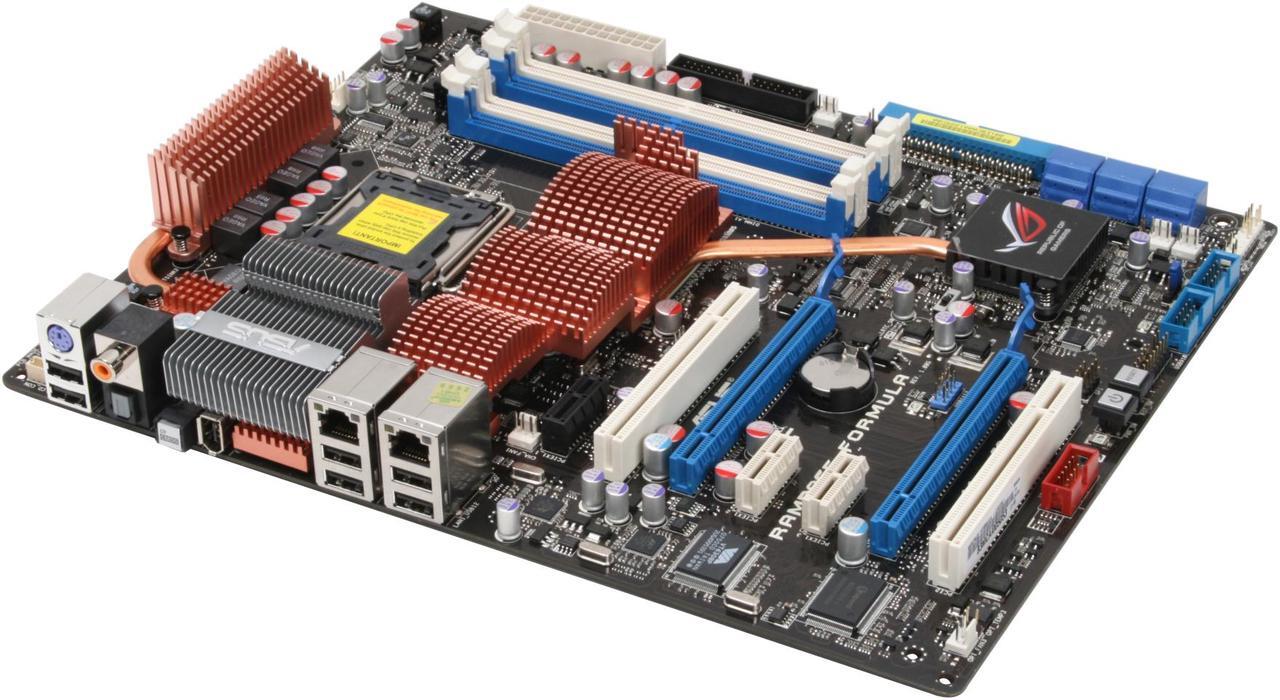

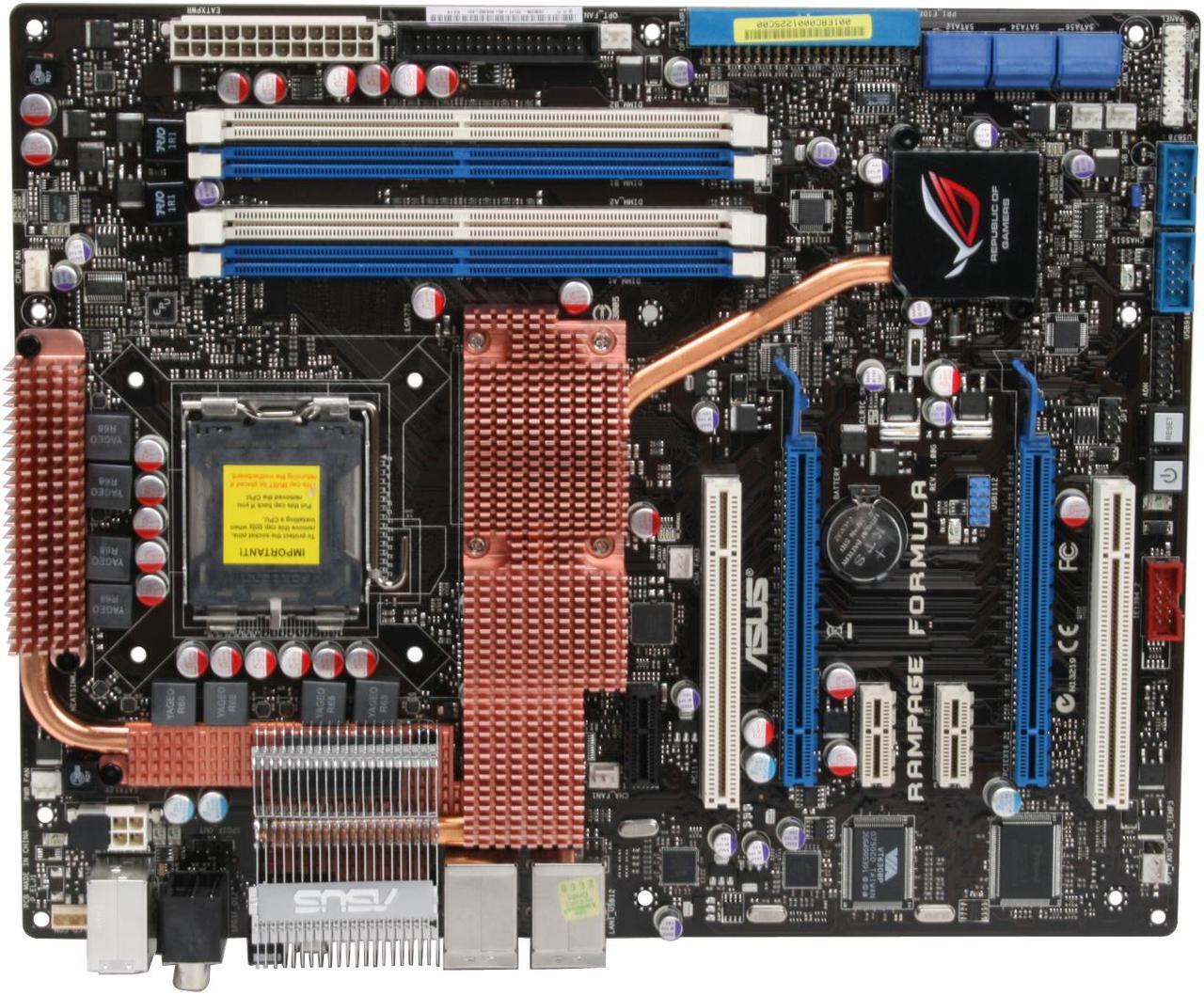

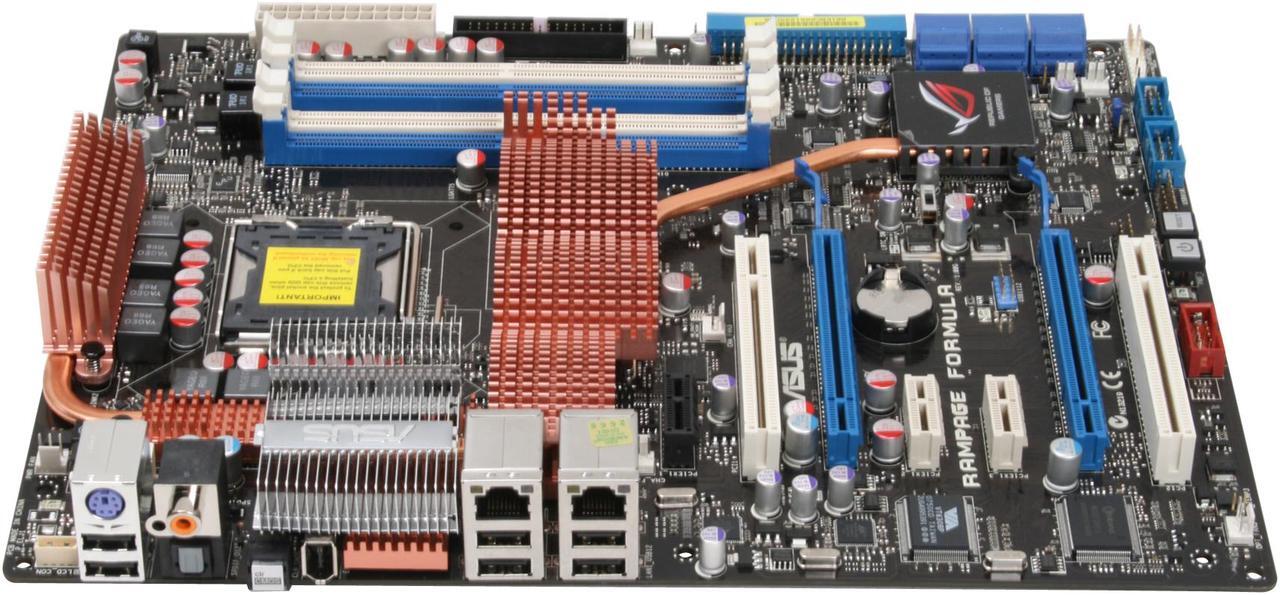

Learn more about the ASUS RAMPAGE FORMULA
Model
Brand
ASUS
Model
RAMPAGE FORMULA
Supported CPU
CPU Socket Type
LGA 775
CPU Type
Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB
1600/1333 MHz
Chipsets
Chipset
Intel X48
South Bridge
Intel ICH9R
Onboard Video
Onboard Video Chipset
None
Memory
Number of Memory Slots
4x240pin
Memory Standard
DDR2 1200(OC)/1066/800
Maximum Memory Supported
8GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 2.0 x16
2 x PCI Express 2.0 x16
PCI Express x1
2 x PCI Express x1
PCI Slots
2 x PCI Slots
Storage Devices
PATA
1 x ATA100 2 Dev. Max
SATA 3Gb/s
6 x SATA 3Gb/s
Onboard Audio
Audio Channels
8 Channels
Onboard LAN
Max LAN Speed
2 x 1Gbps
Rear Panel Ports
Back I/O Ports
1 x Optical S/PDIF Out / 1 x PS/2 / 1 x S/PDIF Coaxial Out / 6 x USB 2.0/1.1
PS/2
1
USB 1.1/2.0
6 x USB 2.0
IEEE 1394
1 x IEEE 1394a
S/PDIF Out
1 x Optical, 1 x Coaxial
Audio Ports
6 Ports
Internal I/O Connectors
Onboard USB
6 x USB 2.0
Physical Spec
Form Factor
ATX
Power Pin
24 Pin
Features
Features

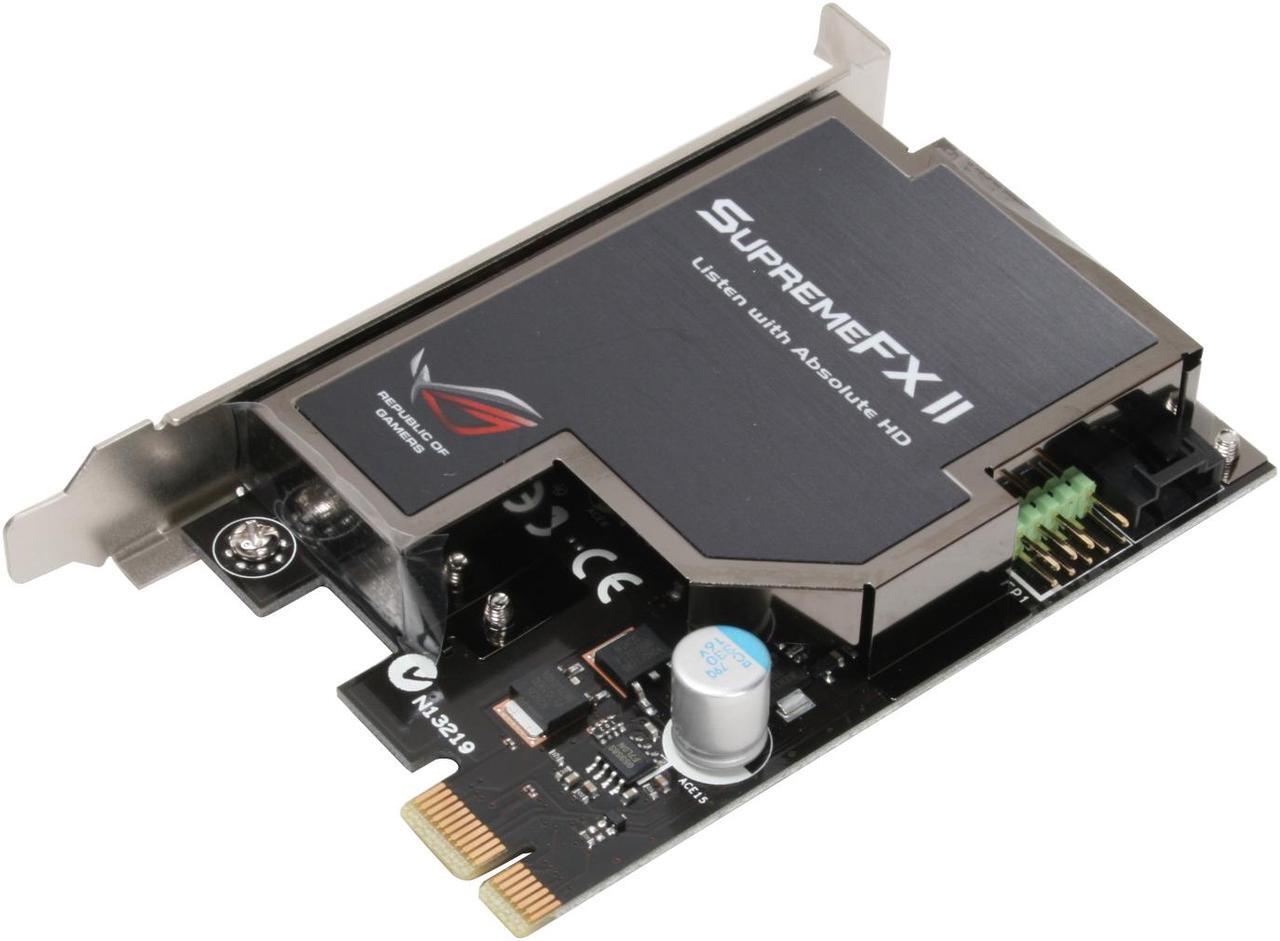

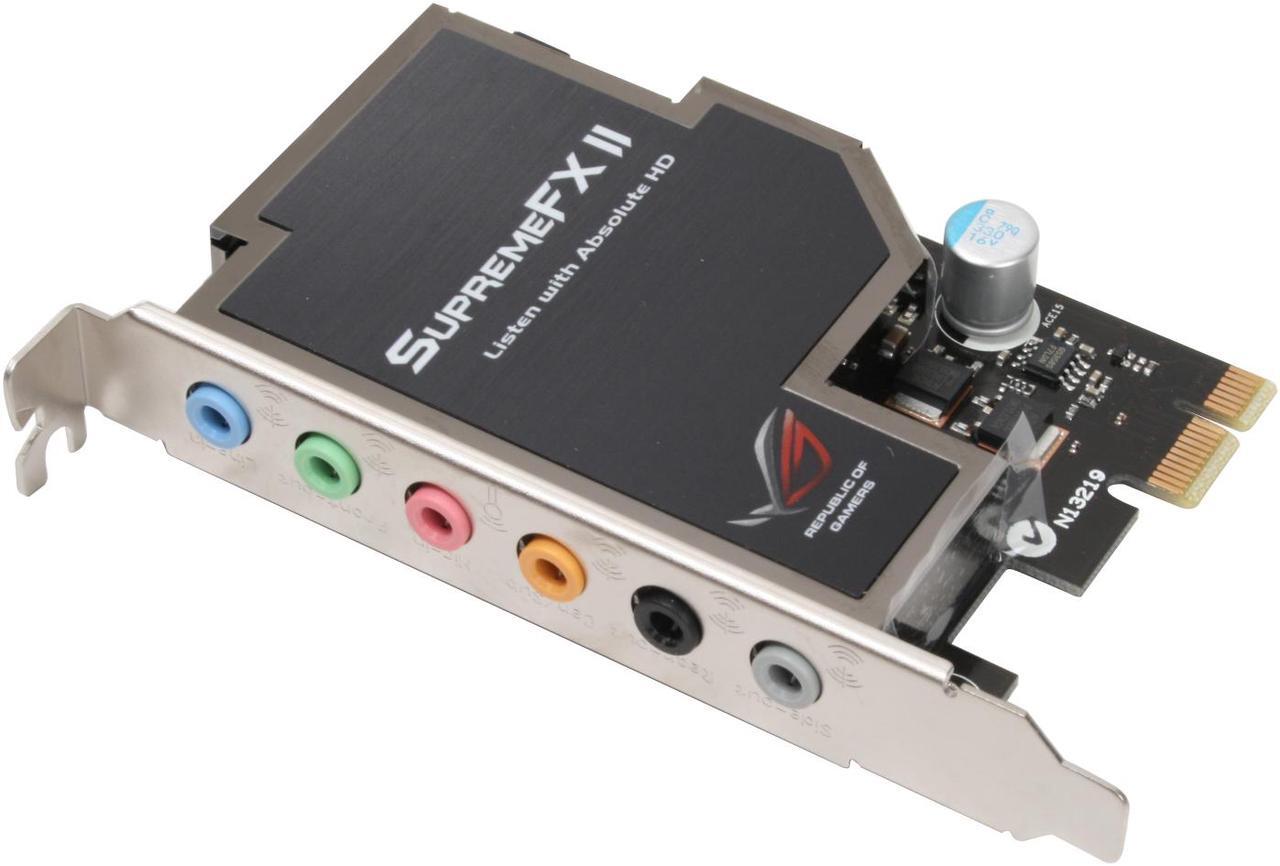

Pin Fin Thermal Module: Perfect Heat-exchange Surface CPU Level Up: A simple click for instant upgrade! SupremeFX II: Listen with Absolute HD ASUS EPU (Energy Processing Unit) Extreme Tweaker ASUS AI Gear 3 AI Overclocking (intelligent CPU frequency tuner) COP EX (Component Overheat Protection - EX) Voltiminder LED ASUS C.P.R.(CPU Parameter Recall)
Packaging
Package Contents

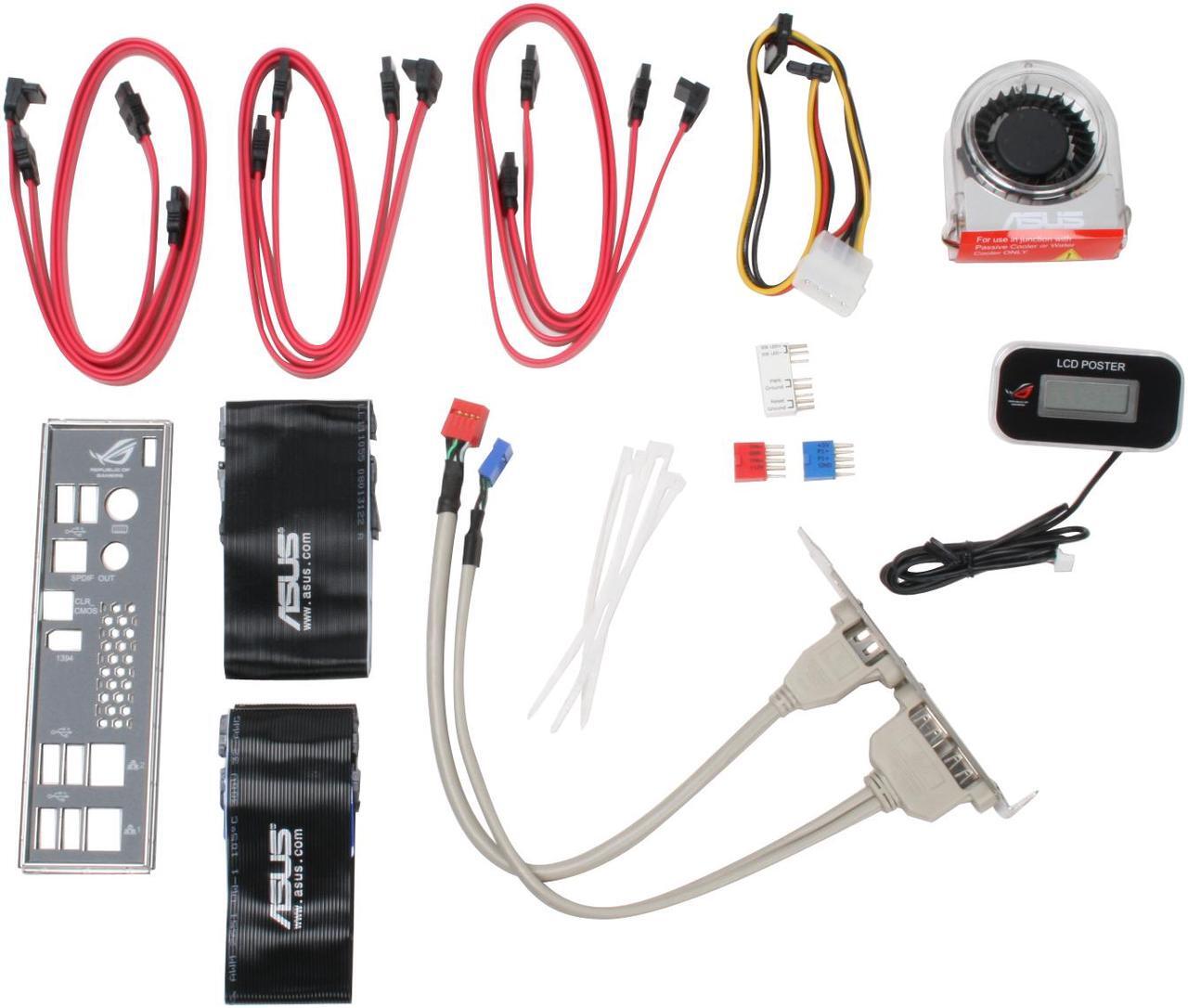

RAMPAGE FORMULA Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable Game Disk USB & IEEE 1394 Bracket Optional Fan ASUS Q-Connector Kit Display Panel SupermeFX II
