ASUS P5Q3 DELUXE/WIFI-AP CH1-11 LGA 775 Intel P45 ATX Intel Motherboard
- Intel P45
- Core 2 Quad / Core 2 Extreme / Core 2 Duo
- DDR3 2000(O.C) / 1600
Specs
Reviews (78)
Learn more about the ASUS P5Q3 DELUXE/WIFI-AP CH1-11
| Brand | ASUS |
|---|---|
| Model | P5Q3 DELUXE/WIFI-AP CH1-11 |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| FSB | 1600/1333 MHz |
| Chipset | Intel P45 |
|---|---|
| South Bridge | Intel ICH10R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 2000(O.C) / 1600 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 slots, support ATI CrossFireX technology at x8 link (black at max. x8 link) |
|---|---|
| PCI Express x4 | 1 x PCI Express x16 slot at max. x4 link (black) |
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/5/10 |
| Audio Chipset | ADI AD2000B |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Marvell 88E8056 |
|---|---|
| Second LAN Chipset | Marvell 88E8001 |
| Max LAN Speed | Dual 10/100/1000Mbps ASUS WiFi-AP @n - 300Mbps* IEEE 802.11n (Draft) and backwards compatible with IEEE 802.11g / b - Software Access Point mode *300Mbps is IEEE 802.11n draft specification. Actual throughput varies depending on the wireless environment and other parameters |
| PS/2 | 1 |
|---|---|
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB connectors support additional 4 USB ports |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | ATI CrossFireX Technology ~ Exceptional 3D Experience The World’s 1st True 16-Phase Power ~ Industry Leading Power Design EPU-6 Engine ~ System Level Energy Saving Drive Xpert ~ Enhance Data Backup or HDD performance Express Gate ~ 5 Secs from Bootup to Online! 100% Japan-made Solid Capacitor ~ Best Quality |
|---|

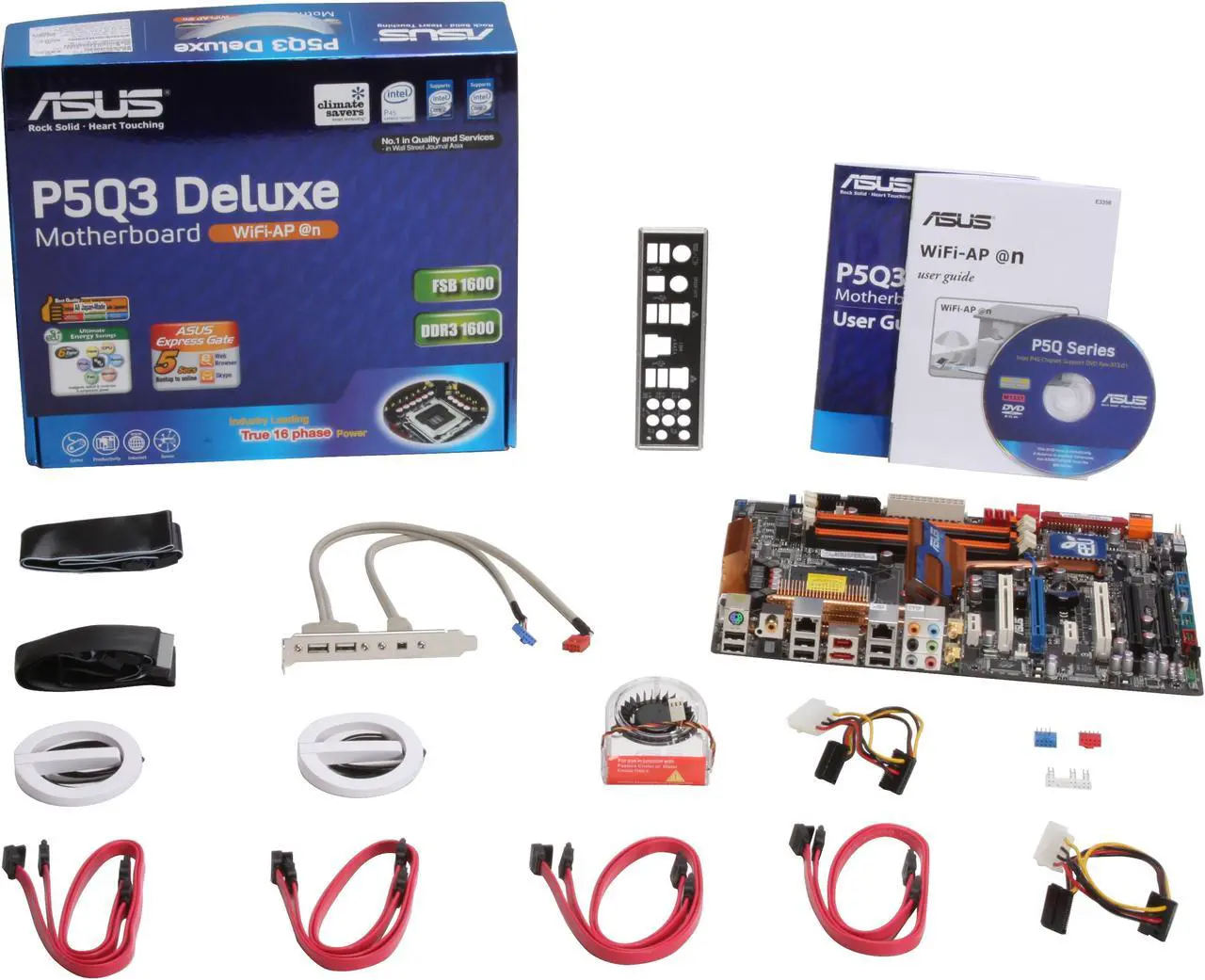

| Package Contents | P5Q3 DELUXE/WIFI-AP CH1-11 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable IEEE 1394 & USB Bracket Optional Fan Antenna for WiFi |
|---|
| Date First Available | June 11, 2008 |
|---|
