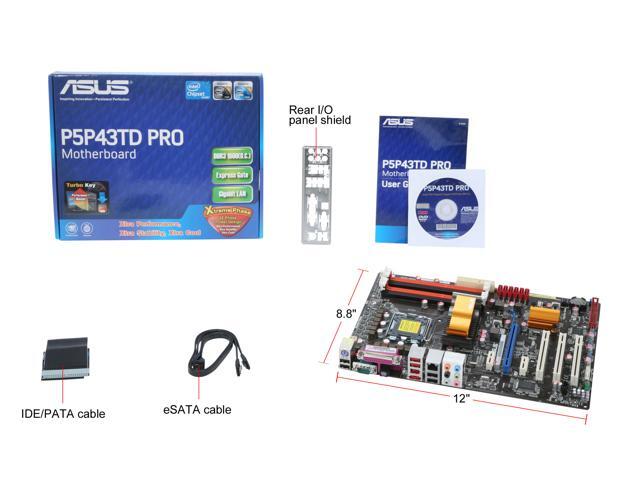

ASUS P5P43TD Pro LGA 775 Intel P43 ATX Intel Motherboard

OUT OF STOCK.
  • Intel P43
  • Core 2 Quad/Core 2 Extreme/Core 2 Duo/Pentium dual-core/Celeron dual-core
  • DDR3 1600(O.C.)/1333/1066/800
Specs
Reviews

Learn more about the ASUS P5P43TD Pro

Model
Brand ASUS
Model P5P43TD Pro
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad/Core 2 Extreme/Core 2 Duo/Pentium dual-core/Celeron dual-core
FSB 1600(O.C)/1333/1066/800 MHz
Chipsets
Chipset Intel P43
South Bridge Intel ICH10R
Memory
Number of Memory Slots 4×240pin
Memory Standard DDR3 1600(O.C.)/1333/1066/800
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 2 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID 0/1/0+1/5
Onboard Audio
Audio Chipset Realtek ALC887
Audio Channels 8 Channels
Onboard LAN
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 1
COM 1
LPT 1
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394a
eSATA 1 x eSATA 3Gb/s
S/PDIF Out 1 x Optical
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 3 x USB connectors support additional 6 USB 2.0 ports
Physical Spec
Form Factor ATX
Dimensions (W x L) 12" x 8.8"
Power Pin 24 Pin
Features
Features Turbo Key
DDR3 1600 (O.C.)
ASUS EPU-4 Engine
ASUS Express Gate
ASUS 12 phase Power Design
Additional Information
Date First Available July 06, 2009
