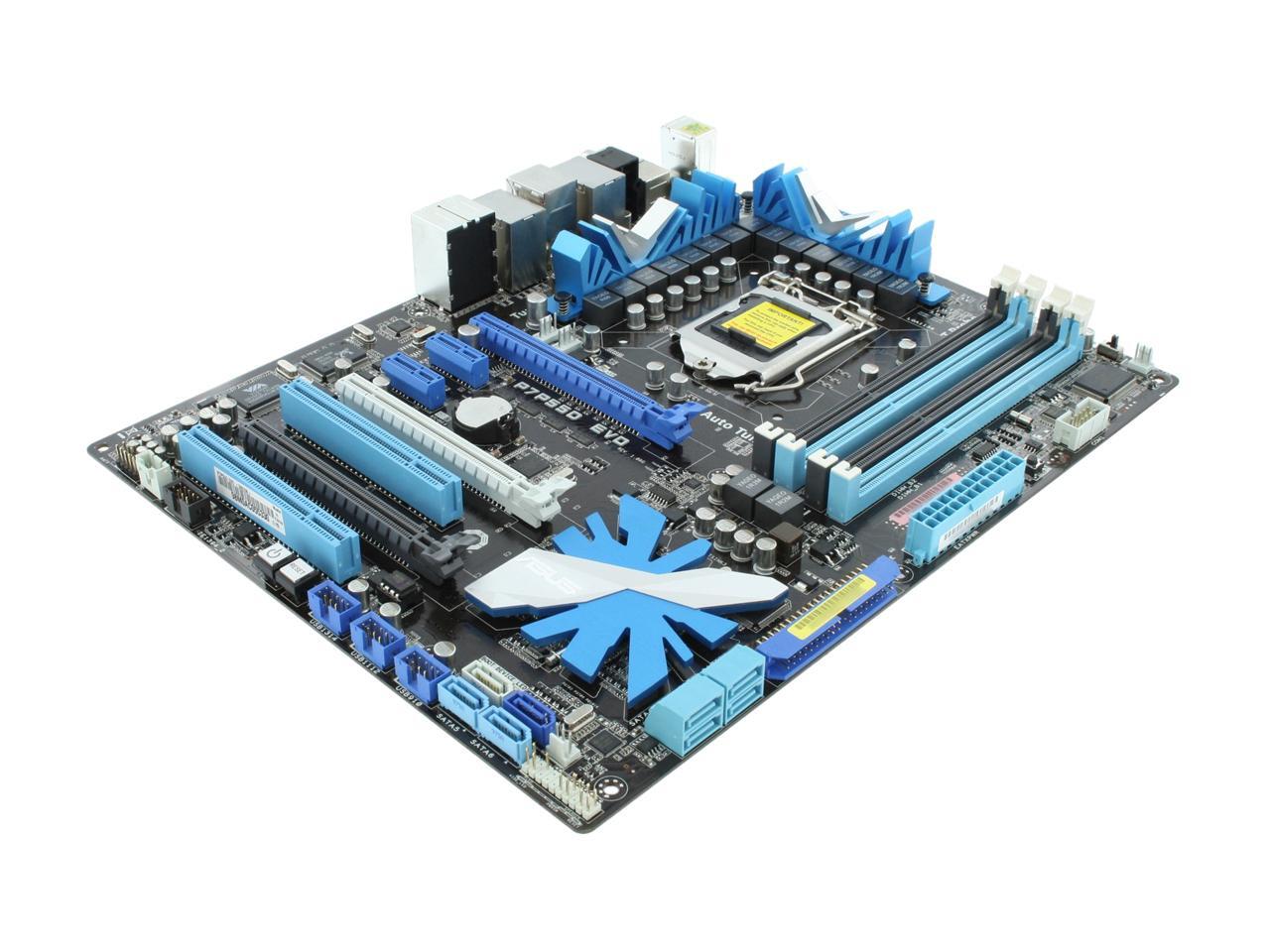

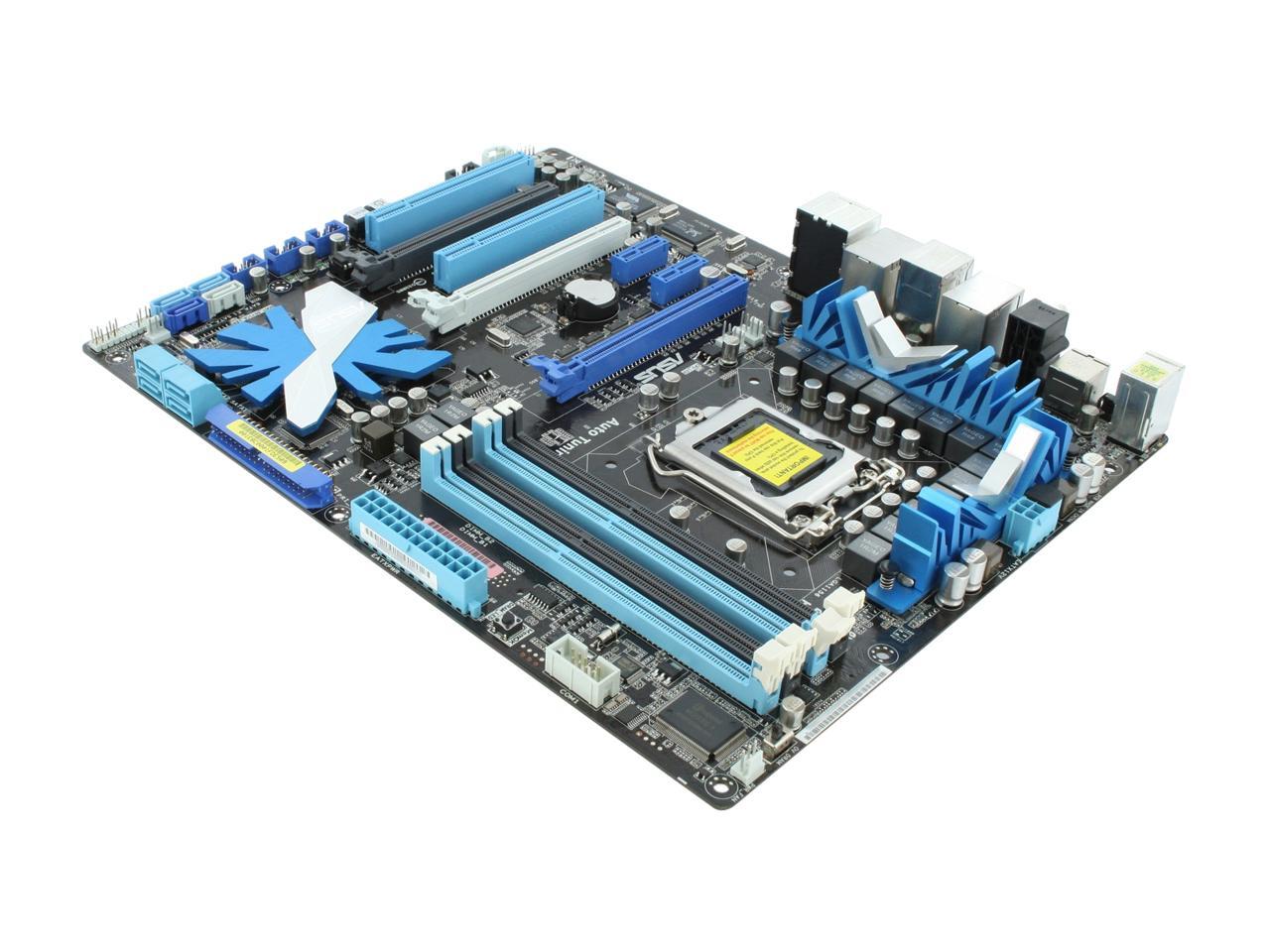

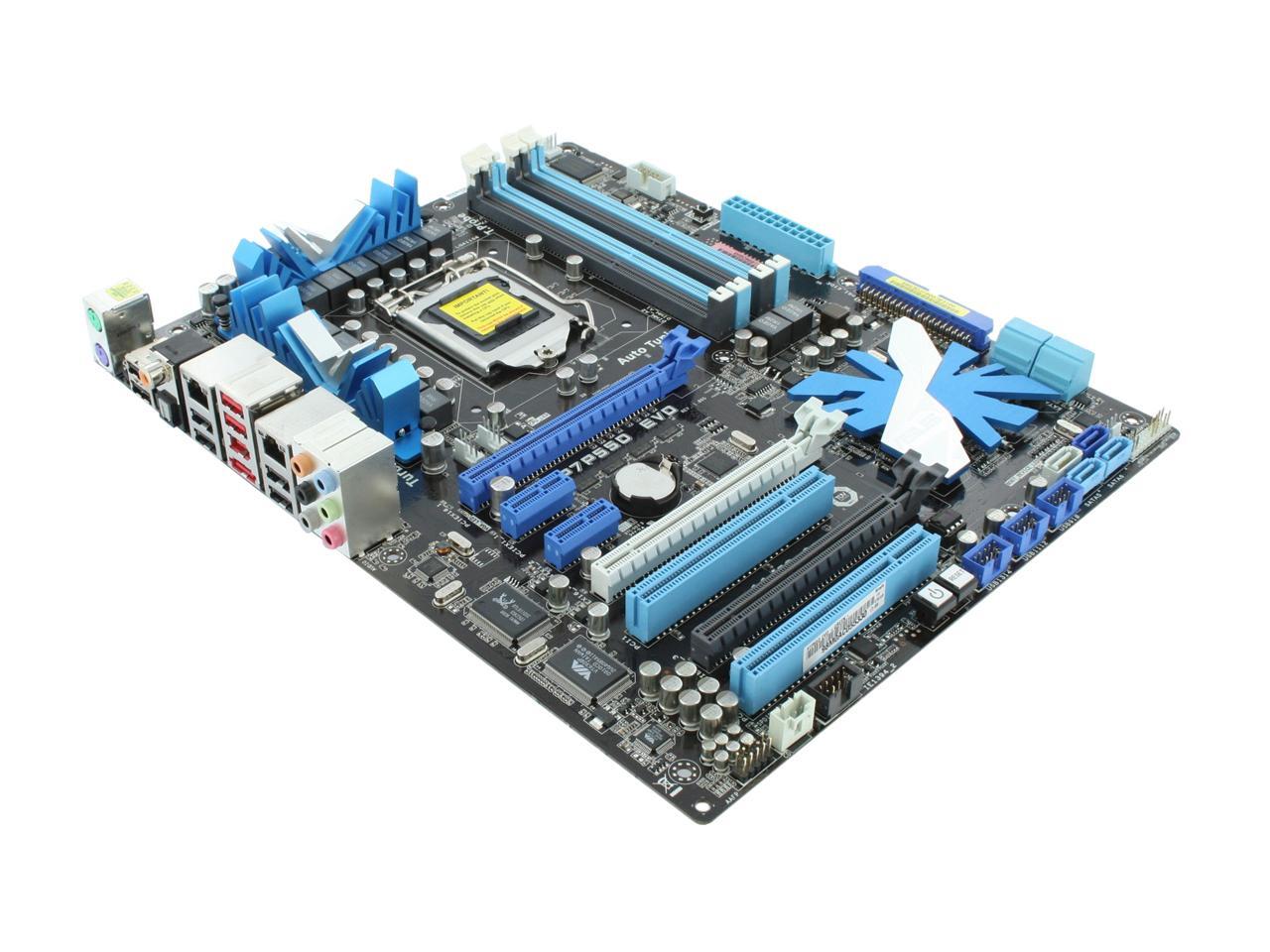

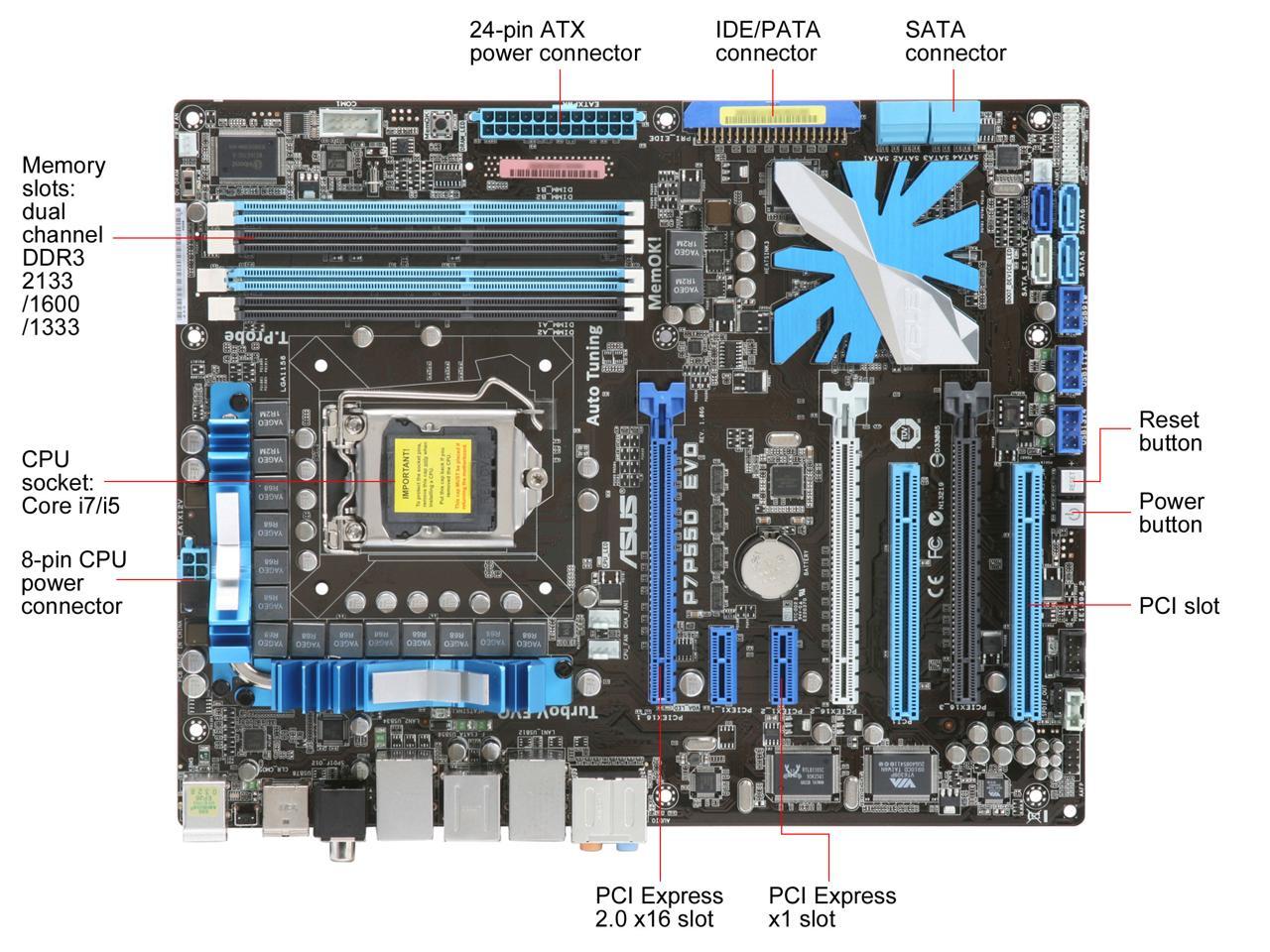

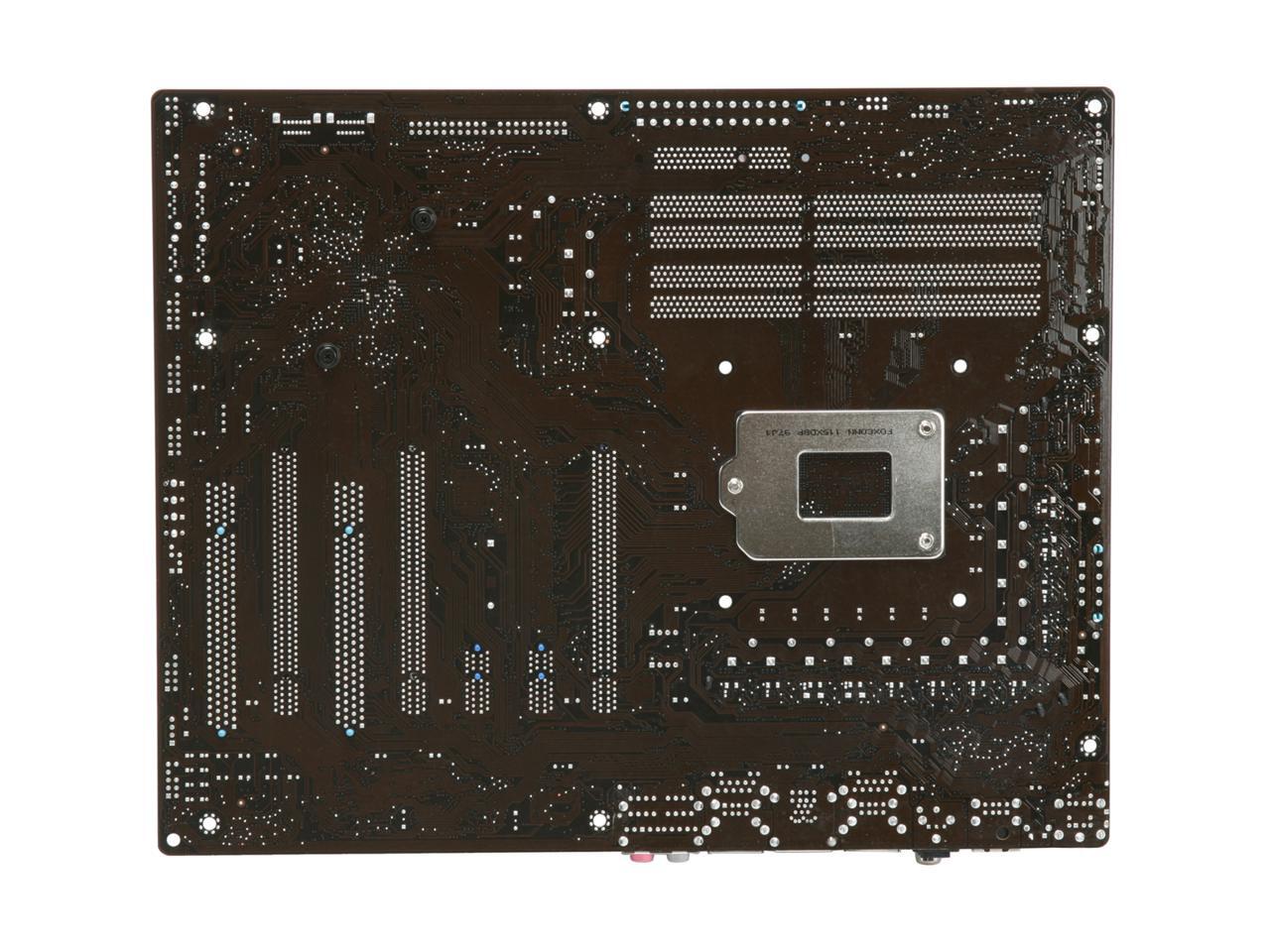

ASUS P7P55D EVO LGA 1156 Intel P55 ATX Intel Motherboard
Used - Very Good Product Type
In stock.
Ships from Hong Kong.
Most customers receive within 5-32 days.
- Intel P55
- Intel New-Gen Core i7 / Core i5
- DDR3 2200(O.C.)/1600/1333/1066
Specs
Learn more about the ASUS P7P55D EVO
| Brand | ASUS |
|---|---|
| Model | P7P55D EVO |
| CPU Socket Type | LGA 1156 |
|---|---|
| CPU Type | Intel New-Gen Core i7 / Core i5 |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology |
| Chipset | Intel P55 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4×240pin |
|---|---|
| Memory Standard | DDR3 2200(O.C.)/1600/1333/1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 x PCIe 2.0 x16 (single at x16 or dual at x8/x8 mode) 1 x PCI Express 2.0 x16 slots (at x4 mode, 2.5GT/s) |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| SATA 3Gb/s | 6 x SATA 3Gb/s connectors 2 x Drive Xpert SATA connectors (navy blue and gray) |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | VIA VT1828 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8112L |
|---|---|
| Second LAN Chipset | Realtek 8110SC |
| Max LAN Speed | Dual 10/100/1000Mbps |
| PS/2 | 2 |
|---|---|
| USB 1.1/2.0 | 8 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 3 x USB connectors support additional 6 USB ports |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | Intel LGA1156 Platform / Intel P55 Express Chipset ASUS Hybrid Technology TurboV EVO TurboV Remote T.Probe Technology for Active Cooling ASUS 12+2 Phase Power Design |
|---|
| Date First Available | September 04, 2019 |
|---|
