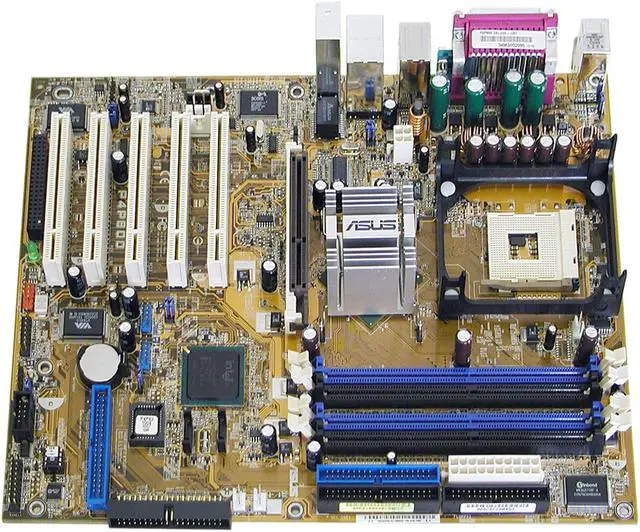

ASUS P4P800 Deluxe Socket 478 Intel 865PE ATX Intel Motherboard
- 478
- Intel 865PE
- 4×184pin DDR 400
Specs
Reviews (184)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASUS P4P800 Deluxe
| Brand | ASUS |
|---|---|
| Model | P4P800 Deluxe |
| CPU Socket Type | Socket 478 |
|---|---|
| CPU Type | Pentium 4 Prescott / Celeron D |
| FSB | 800/533 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel 865PE |
|---|---|
| South Bridge | Intel ICH5R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Express x16 | None |
| PCI Slots | 5 x PCI Slots |
| Other Slots | 1 x ASUS Wi-Fi slot for optional wireless LAN upgrade |
| PATA | 4 x ATA100 8 Dev. Max |
|---|---|
| PATA RAID | 0/1/0+1 |
| SATA RAID | 0/1 |
| Additional RAID Controller | VIA VT6410 |
| Audio Chipset | ADI AD1985 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | 3COM Gigabit LAN PCI Controller |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Coaxial |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| First Listed on Newegg | May 19, 2003 |
|---|
