Learn more about the ASUS P5WD2-E Premium
Model
Brand
ASUS
Model
P5WD2-E Premium
Supported CPU
CPU Socket Type
LGA 775
CPU Type
Pentium EE / Pentium D / Pentium 4 HT / Celeron D
FSB
1066/800 MHz
Supported CPU Technologies
Hyper-Threading Technology
Chipsets
Chipset
Intel 975X
South Bridge
Intel ICH7R
Onboard Video
Onboard Video Chipset
None
Memory
Number of Memory Slots
4x240pin
Memory Standard
DDR2 800
Maximum Memory Supported
8GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express x16
2 x PCI Express x16
PCI Express x1
1 x PCI Express x1
PCI Slots
3 x PCI Slots
Other Slots
1 x Universal PCI-E (max. x2 speed)
Storage Devices
PATA
2 x ATA100 4 Dev. Max
SATA RAID
0/1/0+1/5 Matrix RAID
Onboard Audio
Audio Chipset
Realtek ALC882M
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Marvell 88E8053
Second LAN Chipset
Marvell 88E8053
Max LAN Speed
2 x 1Gbps
Rear Panel Ports
Back I/O Ports
1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1
PS/2
2
LPT
1
USB 1.1/2.0
4 x USB 2.0
S/PDIF Out
1 x Optical, 1 x Coaxial
Audio Ports
6 Ports
Internal I/O Connectors
Onboard USB
2 x USB 2.0 connectors support additional 4 ports
Onboard 1394
2 x 1394a connectors support 2 ports
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
24 Pin
Features
Features
1 x External Serial ATA 3.0Gb/s The SATA_RAID4 connector and External SATA port can not be used simultaneously
Packaging

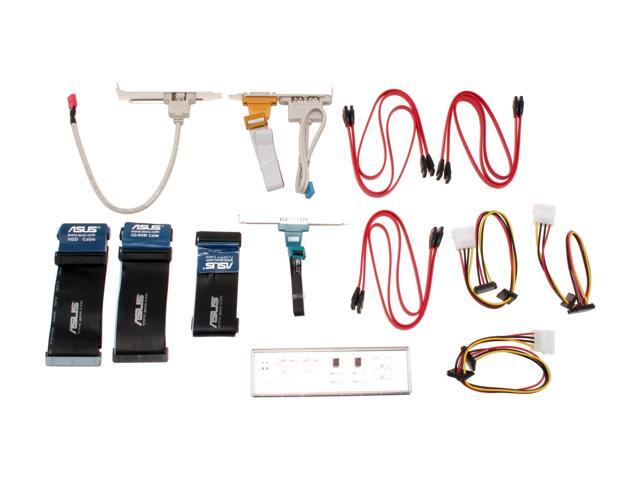

Package Contents
P5WD2-E Premium 2 x User Manual Driver Disk Rear I/O Panel Shield FDD Cable 2 x IDE/PATA Cable 6 x SATA Cable 3 x 4-pin to SATA Power Cable IEEE 1394 Bracket USB and Game/MIDI Bracket Serial/COM Bracket
