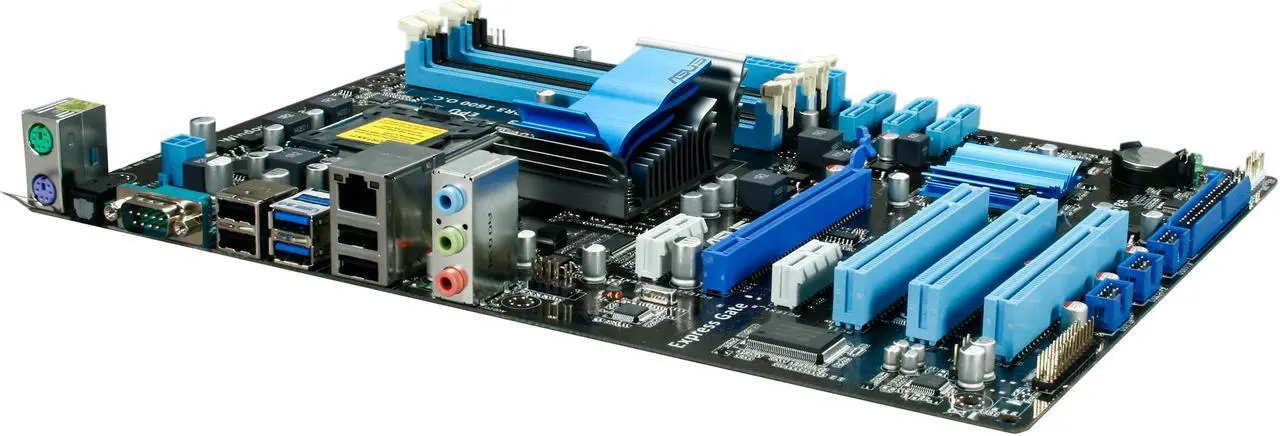

ASUS P5P43TD/USB3 LGA 775 Intel P43 USB 3.0 ATX Intel Motherboard
- Intel P43
- Core 2 Duo / Core 2 Extreme / Core 2 Quad
- DDR3 1600(O.C.)/1333/1066
Overview
Specs
Reviews (28)
Any questions? Our AI beta will help you find out quickly.
Try me now
Based on Intel's P43 Express and ICH10 chipsets, the Asus P5P43TD/USB3 is ready to host the LGA775 Core2 quad-core processors along with Core 2 Duo, Pentium D and Celeron CPUs. It supports the newest SuperSpeed USB 3.0 with superfast transfer rates of up to 5Gbps.
Up to 16GB of DDR3 RAM can be installed for increased performance. Get even more performance – up to 1600Mhz – through overclocking. One PCI-Express 2.0 x16 slot is available for a dedicated video card for enhanced system performance. 100% all high-quality conductive polymer capacitors give longer life and higher energy efficiency by supplying power to vital components independently.
Get eight channels of HD sound from the Realtek ALC887 audio chipset for pure, clear audio. Connect up to six SATA drives at 3Gb/s for high-speed data transfers. Integrated RTL 8112L Gb LAN allows bottleneck-free connections to other network devices at broadband speeds and 4 USB 2.0 and 2 USB 3.0 ports on the back panel allows for nearly unlimited possibilities in connecting peripheral devices.
Up to 16GB of DDR3 RAM can be installed for increased performance. Get even more performance – up to 1600Mhz – through overclocking. One PCI-Express 2.0 x16 slot is available for a dedicated video card for enhanced system performance. 100% all high-quality conductive polymer capacitors give longer life and higher energy efficiency by supplying power to vital components independently.
Get eight channels of HD sound from the Realtek ALC887 audio chipset for pure, clear audio. Connect up to six SATA drives at 3Gb/s for high-speed data transfers. Integrated RTL 8112L Gb LAN allows bottleneck-free connections to other network devices at broadband speeds and 4 USB 2.0 and 2 USB 3.0 ports on the back panel allows for nearly unlimited possibilities in connecting peripheral devices.
Based on Intel's P43 Express and ICH10 chipsets, the Asus P5P43TD/USB3 is ready to host the LGA775 Core2 quad-core processors along with Core 2 Duo, Pentium D and Celeron CPUs. It supports the newest SuperSpeed USB 3.0 with superfast transfer rates of up to 5Gbps.
Up to 16GB of DDR3 RAM can be installed for increased performance. Get even more performance – up to 1600Mhz – through overclocking. One PCI-Express 2.0 x16 slot is available for a dedicated video card for enhanced system performance. 100% all high-quality conductive polymer capacitors give longer life and higher energy efficiency by supplying power to vital components independently.
Get eight channels of HD sound from the Realtek ALC887 audio chipset for pure, clear audio. Connect up to six SATA drives at 3Gb/s for high-speed data transfers. Integrated RTL 8112L Gb LAN allows bottleneck-free connections to other network devices at broadband speeds and 4 USB 2.0 and 2 USB 3.0 ports on the back panel allows for nearly unlimited possibilities in connecting peripheral devices.
Intel P43 Express Chipset for Intel LGA 775 CPUBased on the Intel P43 Express chipset, the Asus P5P43TD/USB3 supports Intel LGA 775 (Socket T) processors including the Core 2 Extreme, Core 2 Quad, Core 2 Duo and Pentium D series as well as the next generation Intel 45nm processors.
SuperSpeed USB 3.0 TechnologyThe Asus P5P43TD/USB3 motherboard equips the revolutionary SuperSpeed USB 3.0 technology to deliver up to 5Gbps bandwidth which is 10x faster than USB 2.0 boosts data transfer rate between the PC and USB device.
Q-Fan 2The Asus P5P43TD/USB3 features Q-fan 2 technology which intelligently adjusts both CPU fan and chassis fan speeds according to system load to achieve a cool and efficient environment.
Asus EZ Flash 2With Asus EZ Flash 2, simply press the pre-defined hotkey to launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
Asus CrashFree BIOS 3With the Asus CrashFree BIOS 3, restore corrupted BIOS data from a USB flash disk containing the BIOS file without the hassle of buying a replacement BIOS chip.
S/PDIF OutFeaturing optical S/PDIF-out (SONY-PHILIPS Digital Interface) jack for digital audio output, the Asus P5P43TD/USB3 provides convenient connectivity to external home theater audio systems while keeping the best signal quality without converting to the analog form.
Intel P43 Express Chipset for Intel LGA 775 CPUBased on the Intel P43 Express chipset, the Asus P5P43TD/USB3 supports Intel LGA 775 (Socket T) processors including the Core 2 Extreme, Core 2 Quad, Core 2 Duo and Pentium D series as well as the next generation Intel 45nm processors.
SuperSpeed USB 3.0 TechnologyThe Asus P5P43TD/USB3 motherboard equips the revolutionary SuperSpeed USB 3.0 technology to deliver up to 5Gbps bandwidth which is 10x faster than USB 2.0 boosts data transfer rate between the PC and USB device.
Q-Fan 2The Asus P5P43TD/USB3 features Q-fan 2 technology which intelligently adjusts both CPU fan and chassis fan speeds according to system load to achieve a cool and efficient environment.
Asus EZ Flash 2With Asus EZ Flash 2, simply press the pre-defined hotkey to launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
Asus CrashFree BIOS 3With the Asus CrashFree BIOS 3, restore corrupted BIOS data from a USB flash disk containing the BIOS file without the hassle of buying a replacement BIOS chip.
S/PDIF OutFeaturing optical S/PDIF-out (SONY-PHILIPS Digital Interface) jack for digital audio output, the Asus P5P43TD/USB3 provides convenient connectivity to external home theater audio systems while keeping the best signal quality without converting to the analog form.Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-510-739-3777
- Support Website
