This means that the product has been opened, may show slight signs of use and cosmetic blemish, and may be missing minor accessories, but remain in excellent condition. Product does not come with warranty unless stated otherwise in product description.
Comes with motherboard and IO shield only, no additional accessories.
Maximize the power of GeForce 5000 series cards with Gen5 NVMe SSD.
+
+
Overview
Specs
With its unrivalled quality and full spectrum of features, the Asus P8Z77-M Motherboard is a great foundation for your next powerhouse. Based on the Intel H61 Express chipset, it works flawlessly with the second- and third-generation Intel Core processors in an LGA 1155 package, and offers you the capability to fully tune and overclock the CPU performance when used with unlocked processer. You'll also delight in the evolved technology, such as USB 3.0, SATA 3.0, and PCIe 3.0 (when used with a third-generation Core processor). An array of in-house features and technology ensures a new level of user experience in your PC build and system tuning. And with proven Asus reliability and stability, you'll see and feel the difference in your everyday computing.
Digital Power Design for the CPU and iGPUAll-new digital CPU power controls work perfectly together to match digital power signal (SVID) requests from the CPU, with ultra-fast sensing and response efficiently delivering precision power. Accurate delivery reduces waste, and provides more stable CPU Vcore voltages. Users can adjust CPU PWM voltages and frequencies for various overclocking scenarios, with accurate input through UEFI BIOS tuning or the exclusive Asus interface. This proprietary design increases overclocking headroom to push performance to its full potential.
EPUTap into the world's first real-time PC power saving chip through a simple onboard switch or the AI Suite II utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity!
GPU BoostGPU Boost accelerates the integrated GPU for extreme graphics performance. The user-friendly interface facilitates flexible frequency adjustments. It easily delivers stable system-level upgrades for every use.
ASUS Exclusive USB 3.0 BoostWith USB 3.0 Boost technology, USB transfer speeds are significantly increased up to 1.3x, enhancing an already impressive USB 3.0 transfer rate. Asus software automatically accelerates data speeds for compatible USB 3.0 peripherals without the need for any further user configuration.
ASUS UEFI BIOSAsus UEFI BIOS offers the first mouse-controlled graphical BIOS designed with selectable modes, providing a user-friendly interface that goes beyond traditional keyboard-only controls. It also natively supports fully-utilized hard drives larger than 2.2TB in 64-bit operating systems. EZ Mode displays frequently-accessed info. Users can choose system performance settings, and drag and drop boot priorities. Advanced Mode for performance enthusiasts includes detailed DRAM settings via a dedicated memory info page for complete insight.
USB BIOS FlashbackA truly revolutionary hardware-based update solution. USB BIOS Flashback offers the most convenient way ever to update the BIOS! It allows users to update new UEFI BIOS versions even without hardware such as a CPU or DRAM installed into the motherboard. Just plug in a USB flash drive containing the BIOS file, and press the BIOS Flashback button for three seconds with the power supply connected. The UEFI BIOS will then automatically update without requiring further interaction. With its new, complementary Windows application, users can regularly check for UEFI BIOS updates and download the latest BIOS automatically. Hassle-free updating for the ultimate convenience!

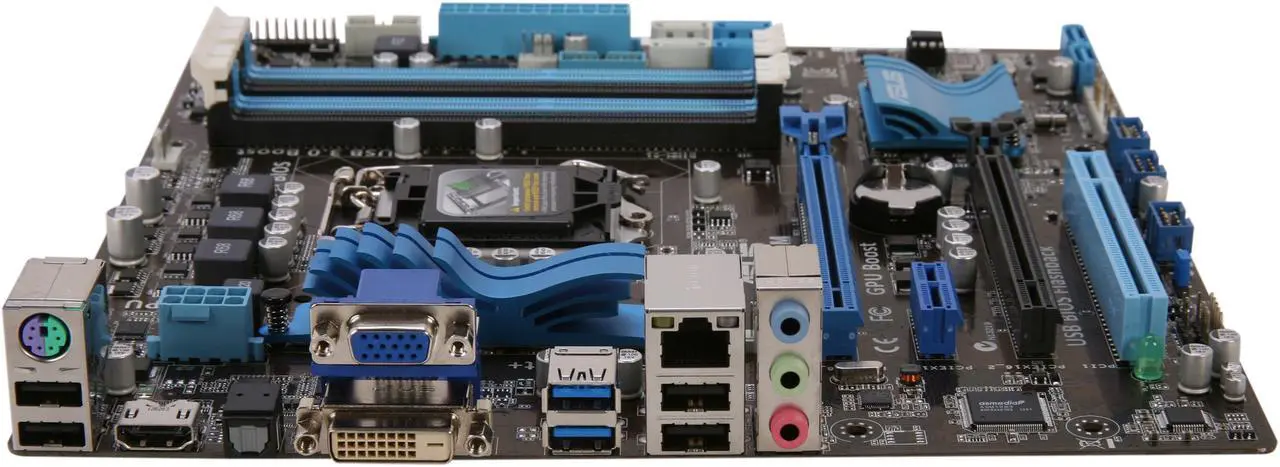

1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/2
1 x PS/2 keyboard/mouse port
Video Ports
D-Sub + DVI
HDMI
1 x HDMI
USB 3.0
2 x USB 3.0
USB 1.1/2.0
4 x USB 2.0
S/PDIF Out
1 x Optical
Audio Ports
3 Ports
Internal I/O Connectors
Onboard USB
2 x USB 3.0 + 6 x USB 2.0
Other Connectors
1 x TPM connector(s) 1 x COM port(s) connector(s) 1 x CPU Fan connector(s) (4 -pin) 3 x Chassis Fan connector(s) (4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x MemOK! button(s) 1 x Clear CMOS jumper(s) 1 x USB BIOS Flashback button(s)
Physical Spec
Form Factor
Micro ATX
Dimensions (W x L)
9.6" x 9.6"
Power Pin
24 Pin
Features
Features
USB 3.0 Boost - Faster USB 3.0 Transmission with UASP
