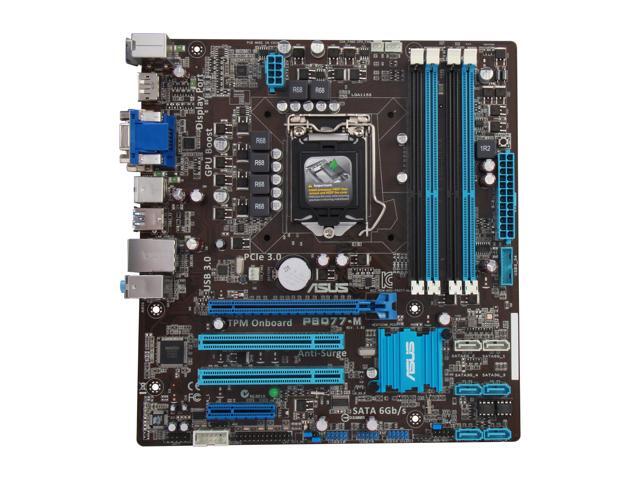

Main image of ASUS P8Q77-M/CSM LGA 1155 Intel Q77 USB 3.0 Micro ATX Intel Motherboard

Alt view image 2 of 5 - ASUS P8Q77-M/CSM LGA 1155 Intel Q77 USB 3.0 Micro ATX Intel Motherboard

Alt view image 3 of 5 - ASUS P8Q77-M/CSM LGA 1155 Intel Q77 USB 3.0 Micro ATX Intel Motherboard

Alt view image 4 of 5 - ASUS P8Q77-M/CSM LGA 1155 Intel Q77 USB 3.0 Micro ATX Intel Motherboard

Alt view image 5 of 5 - ASUS P8Q77-M/CSM LGA 1155 Intel Q77 USB 3.0 Micro ATX Intel Motherboard

Shop All ASUS Products | Visit ProTek Store

ASUS P8Q77-M/CSM LGA 1155 Intel Q77 USB 3.0 Micro ATX Intel Motherboard

Used - Very Good

Comes with motherboard, IO shield, SATA cable, and thermal paste only. No additional accessories.

Intel Q77
Core i7 / i5 / i3 (LGA1155)
DDR3 1600/1333

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	ASUS
Model	P8Q77-M/CSM

Supported CPU
CPU Socket Type	LGA 1155
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium
Supported CPU Technologies	Turbo Boost Technology 2.0

Chipsets
Chipset	Intel Q77

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x240pin
Memory Standard	DDR3 1600/1333/1066
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express x4	1 x PCI Express x4
PCI Slots	2 x PCI Slots

Storage Devices
Serial ATA (SATA)	2 x SATA 6Gb/s
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	VIA VT1708S
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Intel 82579
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x DisplayPort / 2 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/2	2
Video Ports	D-Sub + DVI
DisplayPort	1 x DisplayPort
USB 3.0	2 x USB 3.0
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	2 x USB 3.0 + 6 x USB 2.0
Other Connectors	1 x COM port(s) connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x parallel port connector(s) 1 x Front panel connector(s) (2 x 5 -pin) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x Chassis Intrusion connector(s)

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9"
Power Pin	24 Pin

Features
Features	TPM IC Onboard - Protect Your Important Data USB 3.0 Boost - Faster USB 3.0 Transmission ASUS DIGI+ VRM -Extreme system stability and greater power efficiency GPU Boost - Go to the Limit with iGPU Level Up!
