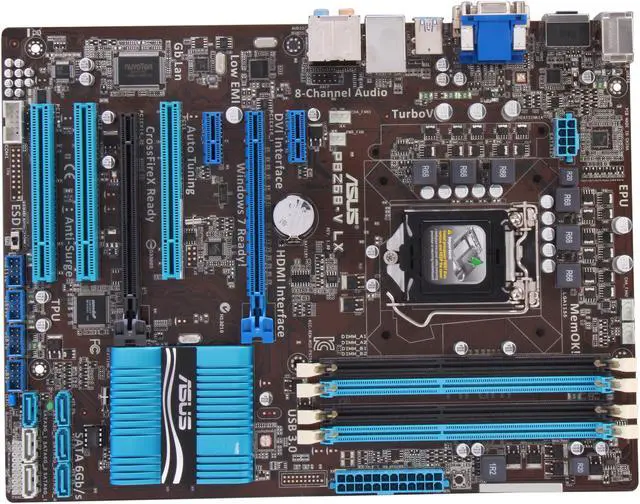

ASUS P8Z68-V LX LGA 1155 Intel Z68 HDMI USB 3.0 ATX Intel Motherboard with UEFI BIOS
REFURBISHED Product Type
- Intel Z68
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Xeon (LGA1155)
- DDR3 2200(O.C.) / 2133(O.C.) / 1866(O.C.) / 1600 / 1333 / 1066
Learn more about the ASUS P8Z68-V LX
| Brand | ASUS |
|---|---|
| Model | P8Z68-V LX |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Xeon (LGA1155) |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel Z68 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 2200(O.C.) / 2133(O.C.) / 1866(O.C.) / 1600 / 1333 / 1066 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 (x16, x4) |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 6 Ports |
| Onboard USB | 8 x USB 2.0 |
|---|---|
| Other Connectors | 1 x COM port(s) connector(s) 1 x CPU Fan connector(s) (4 -pin) 2 x Chassis Fan connector(s) (4 -pin) 1 x Power Fan connector(s) (3 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x MemOK! button(s) 1 x TPU switch(es) |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 9" |
| Power Pin | 24 Pin |
| Features | Intel Smart Response Technology- Experience the Benefits of both SSD and HDD LucidLogix Virtu - Dynamic switching between i-Mode and d-Mode EPU - System Level Energy Saving & Real-time Power Management for Superb Platform Power Efficiency TPU - Increase Platform Performance Instantly with Self Optimized Settings while retaining Full System Stability UEFI BIOS - GUI BIOS with Mouse & 2.2TB+ HDD Support |
|---|
| First Listed on Newegg | December 03, 2012 |
|---|
