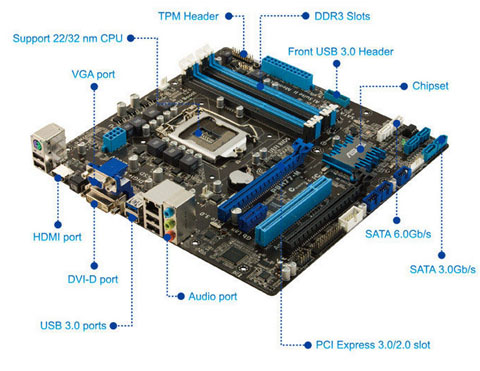

The P8H77-M/CSM-R motherboard delivers competitive performance and features at an excellent value. It carries LGA1155 socket to support the powerful Intel processors, and boasts Intel H77 Express Chipset. It utilizes advanced LucidLogix Virtu MVP technology to provide up to 60% hybrid graphics boost and 3X faster video conversion. It also comes complete with the latest PCI Express 3.0 interfaces and four USB3.0 ports for unprecedented data transfer speed. Complete with an array of advanced technologies and user-friendly features – like innovative GPU Boost technology, Intel smart response technology, flexible & easy BIOS interface, DIGI+ VRM digital power design, UEFI BIOS, and more, it offers you more than enough for an exceptional experience in every aspect.

Excellent CPU, Chipset and Graphics featuresThis motherboard supports the Intel 3rd/2nd generation processors in the LGA1155 package, which has iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, two-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. The Intel H77 Express Chipset provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Plus, it provides four USB 3.0 ports for 10 times faster data retrieval speed.
LucidLogix Virtu MVPThe LucidLogix Virtu MVP utilizes the HyperFormance technology to boost your discrete graphics card up to 60% beyond its original performance through the test of 3DMark Vantage. Designed for Intel processor graphics and Windows 7 PCs, it perfectly combines the performance of discrete graphics cards with fast computing iGPU. Also with the newly designed Virtual Sync, users can enjoy a smoother gaming experience by eliminating tearing artifacts. LucidLogix Virtu MVP could also dynamically assign tasks to the best available graphics resource, based on power, performance and system load. This allows users to fully utilize three times faster video conversion with Intel Quick Sync Video technology while retaining high-end 3D rendering and gaming performance, provided by both NVIDIA and AMD graphic cards. When the discrete graphics card is not required, power consumption goes automatically down to near zero, making the system more environmentally-friendly.
SSD Speed with HDD CapacityIntel Smart Response Technology boosts overall system performance. It uses an installed fast SSD (min 18.6GB available capacity required) as a cache for frequently accessed data. Key benefits include reduced load and wait times, and lower power consumption through the elimination of unnecessary hard drive spin. This technology combines SSD performance with hard drive capacity, operating up to 6X faster than a hard drive-only system.
DIGI+ VRM Digital Power DesignAll-new digital CPU power controls work perfectly together to match digital power signal (SVID) requests from the CPU, with ultra-fast sensing and response efficiently delivering precision power. Accurate delivery reduces waste, and provides more stable CPU Vcore voltages. Users can adjust CPU PWM voltages and frequencies for various overclocking scenarios, with accurate input through UEFI BIOS tuning or the exclusive ASUS interface. This proprietary design increases overclocking headroom to push performance to its full potential.
UEFI BIOS (EZ Mode)ASUS UEFI BIOS offers the first mouse-controlled graphical BIOS designed with selectable modes, providing a user-friendly interface that goes beyond traditional keyboard-only controls. It also natively supports fully-utilized hard drives larger than 2.2TB in 64-bit operating systems. Users can choose system performance settings and drag and drop boot priorities. Its exclusive EZ Mode displays frequently-accessed information, while Advanced Mode for performance enthusiasts includes detailed DRAM settings via a dedicated memory info page for complete insight.
Network iControlWith a single-click on/off button, the application currently in use has its data and network bandwidth prioritized over other programs. Moreover, you can prioritize your favorite software easily by configuring profiles through the intuitive user interface. Within the profile, programs can be pre-scheduled to run in a specific time period to avoid network congestion and long-waits on downloads. Auto PPPoE network connection provides a one-step setup for enhanced online convenience. Overall, it's an intuitive network bandwidth control center.
