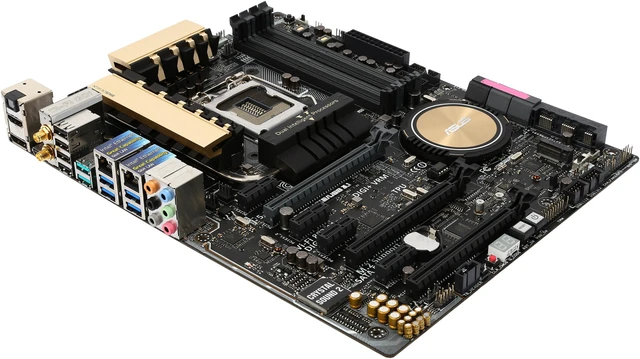

Main image of ASUS Z97-DELUXE/USB 3.1 LGA 1150 Intel Z97 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboard

100%

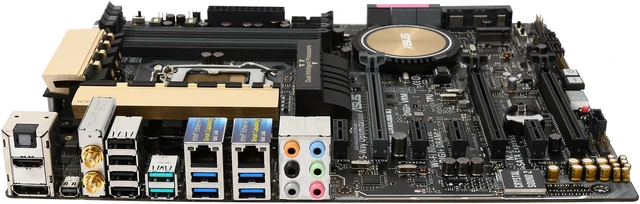

Alt view image 2 of 5 - ASUS Z97-DELUXE/USB 3.1 LGA 1150 Intel Z97 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboard

Alt view image 3 of 5 - ASUS Z97-DELUXE/USB 3.1 LGA 1150 Intel Z97 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboard

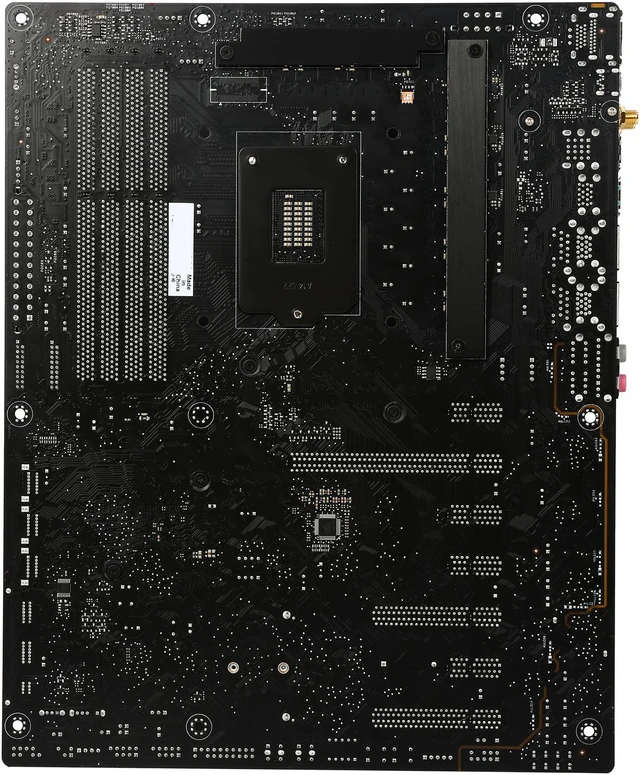

Alt view image 4 of 5 - ASUS Z97-DELUXE/USB 3.1 LGA 1150 Intel Z97 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboard

Alt view image 5 of 5 - ASUS Z97-DELUXE/USB 3.1 LGA 1150 Intel Z97 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboard

360^°

Images from RETAIL item, box contents may vary.

Shop All ASUS Products

ASUS Z97-DELUXE/USB 3.1 LGA 1150 Intel Z97 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboard

OPEN BOX

Intel Z97
Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Intel Core 5th Gen (LGA 1150) / Pentium / Xeon (LGA1150)
DDR3 3300(O.C.)/ 3200(O.C.)/ 3100(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2600(O.C.)/ 2400(O.C.)/ 2200(O.C.)/ 2133(O.C.)/ 2000(O.C.)/ 1866(O.C.)/ 1600/ 1333 Non-ECC, Un-buffered

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.

Overview

Specs

Any questions? Our AI mode will help you find out quickly.

Try me now

Model
Brand	ASUS
Model	Z97-DELUXE/USB 3.1

Supported CPU
CPU Socket Type	LGA 1150
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Intel Core 5th Gen (LGA 1150) / Pentium / Xeon (LGA1150)
Supported CPU Technologies	Turbo Boost Technology 2.0

Chipsets
Chipset	Intel Z97

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support : HDMI/DisplayPort /Mini DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz - Supports Mini DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz Maximum shared memory of 512 MB Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider Supports up to 3 displays simultaneously DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

Memory
Number of Memory Slots	4x240pin
Memory Standard	DDR3 3300(O.C.)/ 3200(O.C.)/ 3100(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2600(O.C.)/ 2400(O.C.)/ 2200(O.C.)/ 2133(O.C.)/ 2000(O.C.)/ 1866(O.C.)/ 1600/ 1333 Non-ECC, Un-buffered
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
PCI Express 2.0 x16	1 x PCIe 2.0 x16 (max at x4 mode) 1 1 : The PCIe x16_3, USB3.1_E12 and SATAExpress_E1 connectors share the same bandwidth. The PCIe x16_3's default setting is in Auto mode that automically optimizes the system bandwidth. If you use two of these connectors, the system automatically disables the unused connector.
PCI Express x1	4 x PCIe 2.0 x1

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s port(s), gray, by Intel Z97 chipset 2 x SATA 6Gb/s port(s), blackwith M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode), by ASMedia PCIe SATA controller 4 4: These SATA ports are for data hard drivers only. ATAPI devices are not supported.
SATA Express	1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports, by Intel Z97 chipset 1 x SATA Express port, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode), by ASMedia SATA Express controller *4
M.2	1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode) 2 2: M.2 Socket 3 shares bandwidth with SATAExpress_1

Onboard Audio
Audio Chipset	Realtek ALC1150
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Intel I218V
Second LAN Chipset	Intel I211-AT
Max LAN Speed	2 x 1Gbps
Wireless LAN	Wi-Fi 802.11a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Support ASUS Wi-Fi Go! Utility
Bluetooth	Bluetooth V4.0

Rear Panel Ports
Video Ports	1 x DisplayPort 1 x Mini DisplayPort
HDMI	1 x HDMI
RJ45	2 x LAN (RJ45) port(s)
USB 3.1	2 x USB 3.1 (teal blue)
USB 3.0	4 x USB 3.0 (blue)
USB 1.1/2.0	4 x USB 2.0
S/PDIF Out	1 x Optical
Audio Ports	6 Ports

Internal I/O Connectors
Onboard USB	2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x TPM header 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 4 x Chassis Fan connector(s) (4 x 4 -pin) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x EZ XMP switch 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x TPU switch(es) 1 x EPU switch(es) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x USB BIOS Flashback button(s)

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	24 Pin

Features
Features	Ultra-fast USB 3.1 onboard, one-click total system optimization, and fastest 802.11ac Wi-Fi connectivity! Ultra-fast 10Gb/s USB 3.1 built in to the board 5-Way Optimization by Dual Intelligent Processors 5 - One click, total system optimization! M.2 & SATA Express - Speed up your system with lightning-fast 10Gb/s transfer speed Crystal Sound 2 audio and dual Intel Gigabit Ethernet - a game-winning combo! ASUS HomeCloud with 802.11ac Wi-Fi - Access your PC remotely and stream multimedia content anywhere, anytime Proven quality - 5X Protection. 1000+ compatible devices. 7000+ validation hours Special Features ASUS Exclusive Features: - AI Suite 3 - Ai Charger+ - USB Charger+ - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.0 Boost - USB 3.1 Boost - Disk Unlocker - Turbo LAN - Crystal Sound 2
