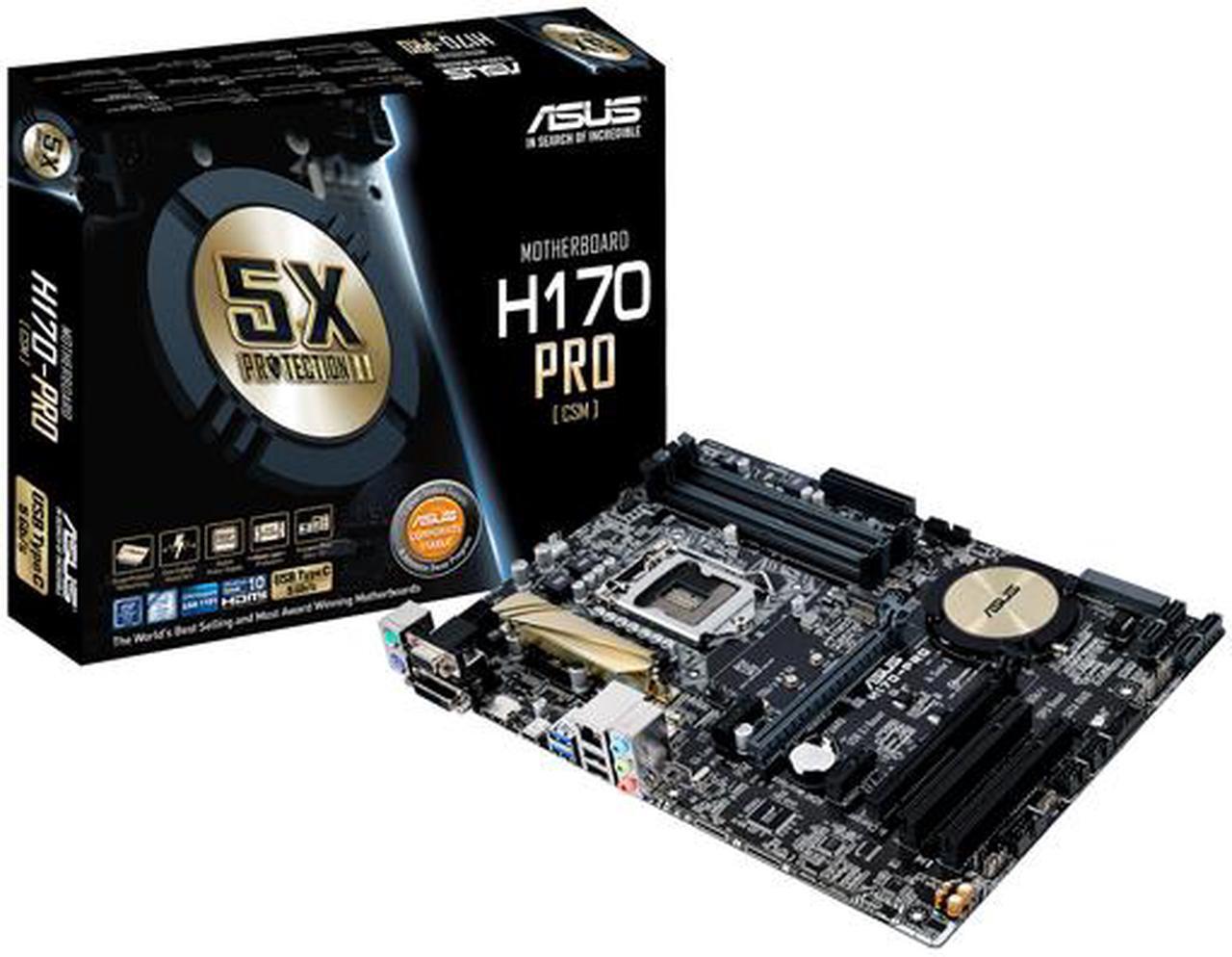

Main image of ASUS H170-PRO/CSM LGA 1151 Intel H170 HDMI USB 3.0 ATX Intel Motherboard

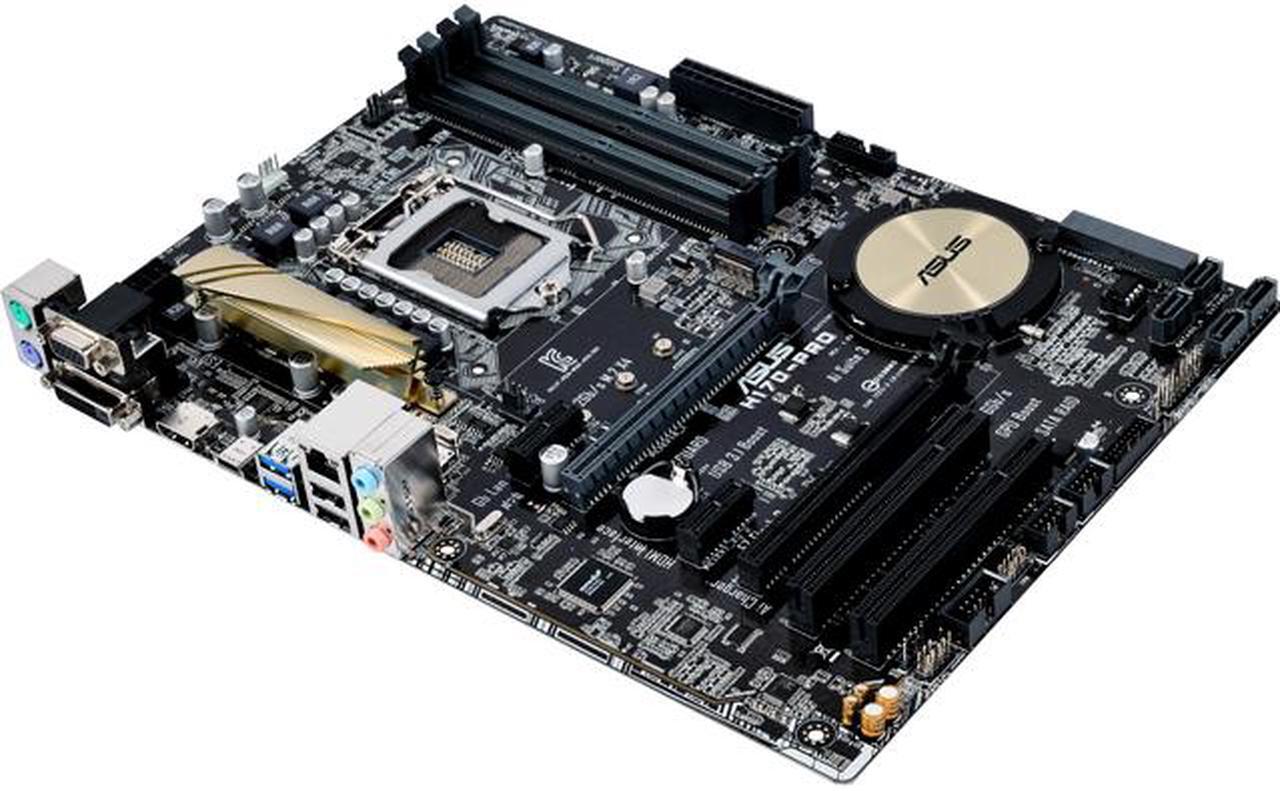

Alt view image 2 of 6 - ASUS H170-PRO/CSM LGA 1151 Intel H170 HDMI USB 3.0 ATX Intel Motherboard

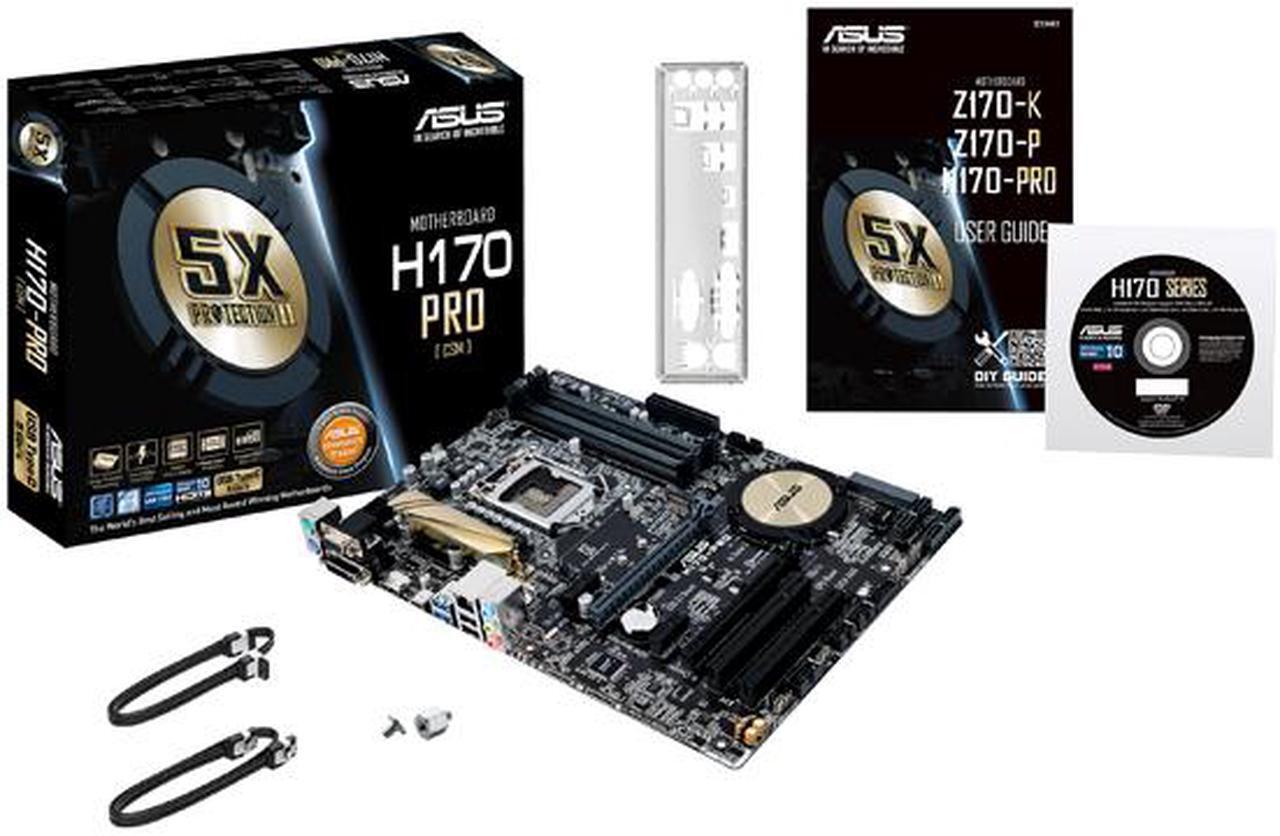

Alt view image 3 of 6 - ASUS H170-PRO/CSM LGA 1151 Intel H170 HDMI USB 3.0 ATX Intel Motherboard

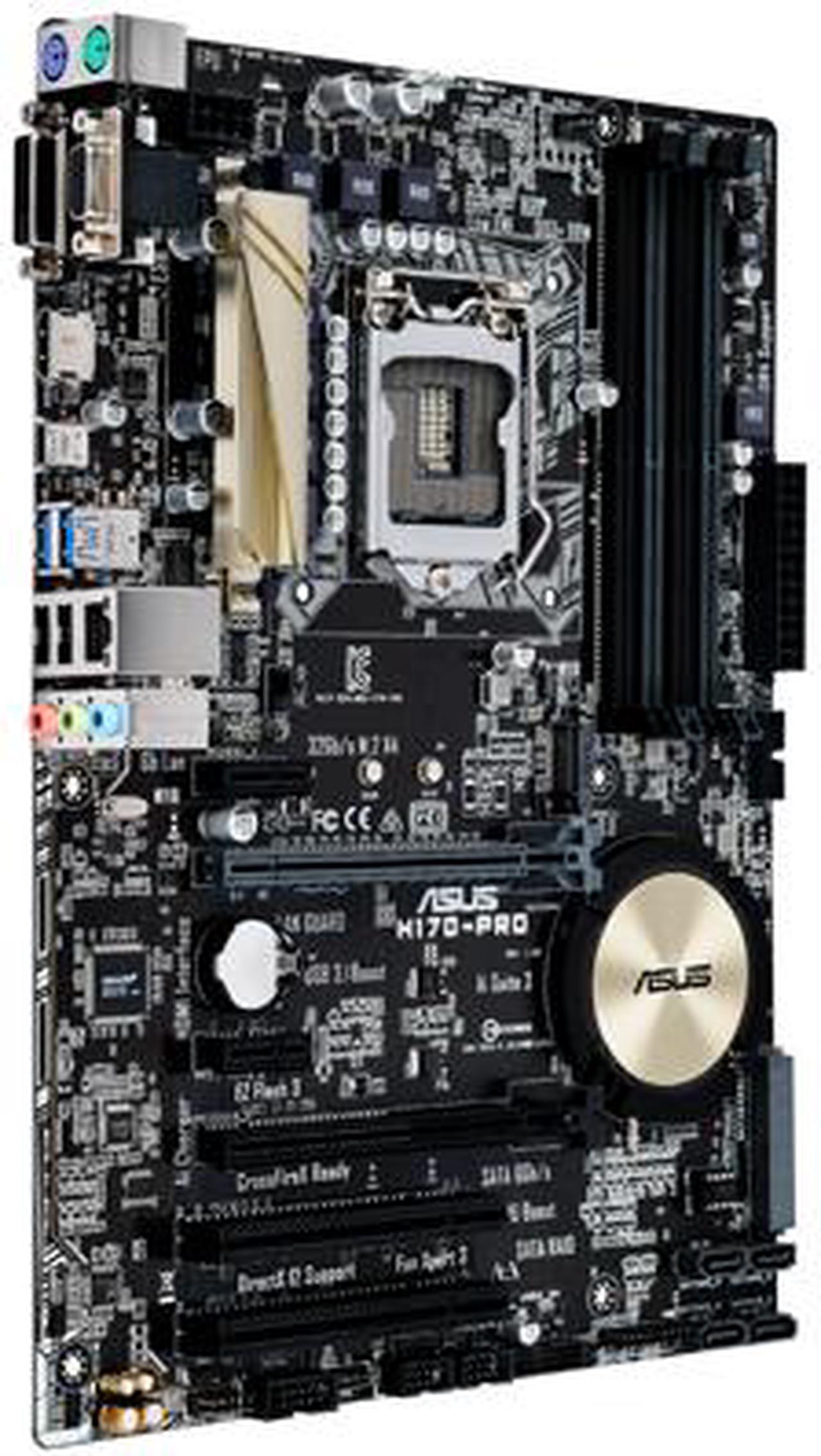

Alt view image 4 of 6 - ASUS H170-PRO/CSM LGA 1151 Intel H170 HDMI USB 3.0 ATX Intel Motherboard

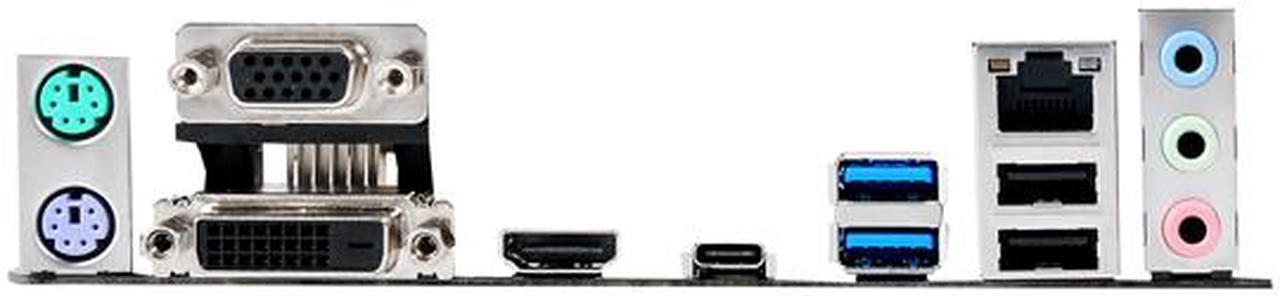

Alt view image 5 of 6 - ASUS H170-PRO/CSM LGA 1151 Intel H170 HDMI USB 3.0 ATX Intel Motherboard

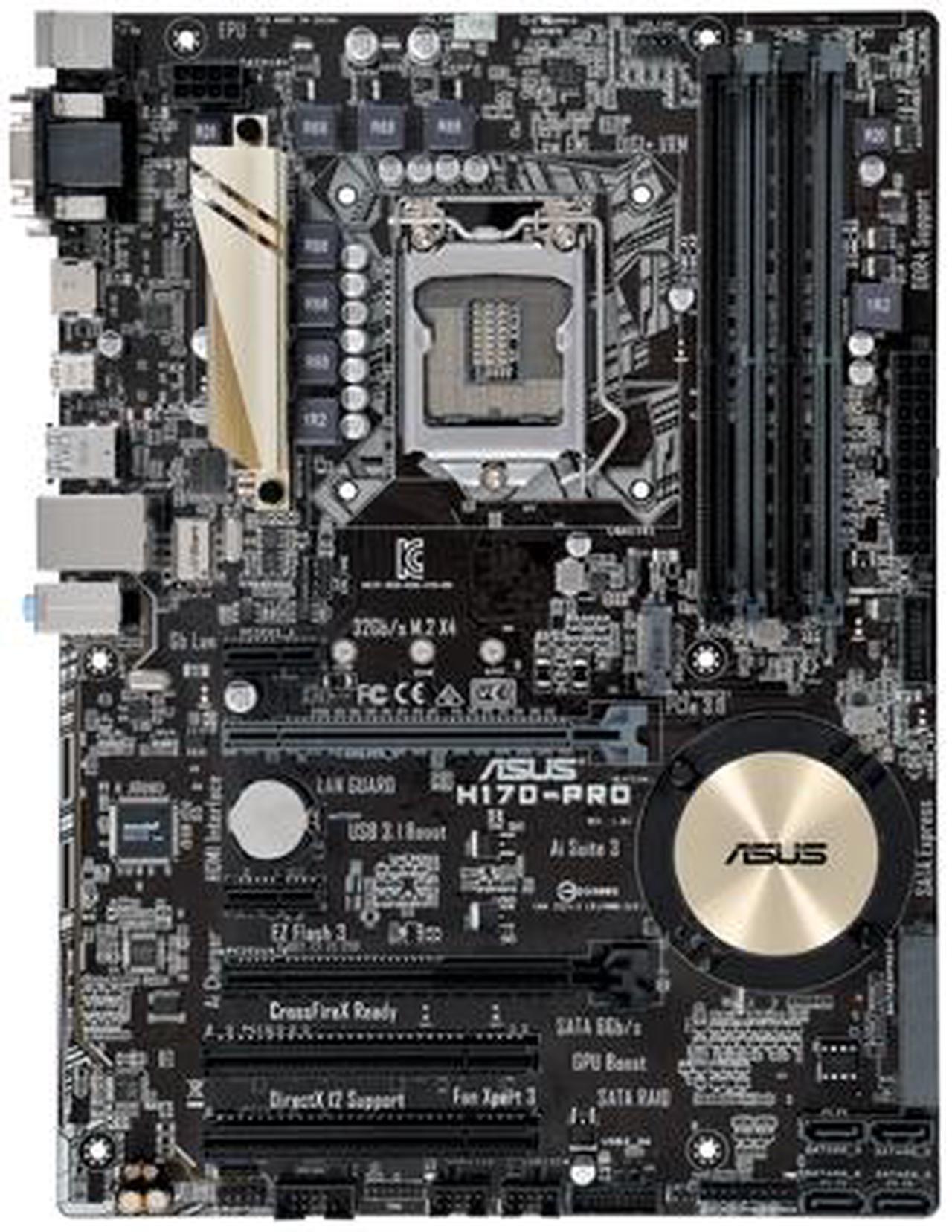

Alt view image 6 of 6 - ASUS H170-PRO/CSM LGA 1151 Intel H170 HDMI USB 3.0 ATX Intel Motherboard

Shop All ASUS Products | Visit ProTek Store

ASUS H170-PRO/CSM LGA 1151 Intel H170 HDMI USB 3.0 ATX Intel Motherboard

Used - Very Good

Comes with motherboard and IO shield only, no additional accessories.

CSM Model
5X Protection II
USB Type-C for convenient connectivity
Epic gaming audio with noise-isolation design
Bulk Pack
Fan Xpert 3 advanced fan controls
Lightning-fast M.2 with PCIe 3.0 x4 interface

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	ASUS
Model	H170-PRO/CSM

Supported CPU
CPU Socket Type	LGA 1151
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
Supported CPU Technologies	Turbo Boost Technology 2.0

Chipsets
Chipset	Intel H170

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor - Intel HD Graphics support Multi-VGA output support: HDMI/DVI-D/RGB port - Supports HDMI with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz - Supports DVI-D with max. resolution of 1920 x 1200 @60Hz - Supports RGB with max. resolution 1920 x 1200@60Hz Supports Intel InTru 3D/Quick Sync Video/Clear Video HD Technology/Insider Supports up to 3 displays simultaneously Maximum shared memory of 512MB Multi-GPU Support: Supports AMD CrossFireX Technology

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 2133
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express 3.0/2.0 x16 slot (at x16 mode) 1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, compatible with PCIe x1 and x4 devices)
PCI Express x1	2 x PCI Express 3.0/2.0 x1 slots
PCI Slots	2 x PCI Slots

Storage Devices
Serial ATA (SATA)	6 x SATA 6.0 Gb/s ports (gray, 2 from SATA Express)
SATA Express	1 x SATA Express port (compatible with 2 x SATA 6.0 Gb/s ports)
M.2	1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek 8111H
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x HDMI / 2 x PS/2 / 2 x USB 2.0/1.1 / 2 x USB 3.0
PS/2	1 x PS/2 keyboard port 1 x PS/2 mouse port
Video Ports	1 x DVI-D port
HDMI	1 x HDMI
RJ45	1 x LAN (RJ45) ports
USB 3.0	2 x USB 3.0/2.0 ports (blue, Type A)
USB 1.1/2.0	2 x USB 2.0/1.1 ports 1 x USB 5Gb/s Type C port
Audio Ports	3-Jack 8-Channel Audio I/O ports

Internal I/O Connectors
Onboard USB	2 x USB 3.0/2.0 connectors support additional 4 USB ports (19-pin) 2 x USB 2.0/1/1 connectors support additional 4 USB ports
Other Connectors	1 x 4-pin CPU Fan connector for both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control* 2 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control 1 x Front panel audio connector 1 x System panel connector (Chassis intrusion header is inbuilt) 1 x S/PDIF out header 1 x 24-pin EATX Power connector 1 x 8-pin EATX 12V Power connector 1 x COM header 1 x TPM Header 1 x Clear CMOS jumper * The CPU Q-Fan control setting is set as default in Auto mode for detecting the type of CPU fan installed and switches to the control mode automatically.

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 8.8"
Power Pin	24 Pin

Features
Features	ASUS Special Features ASUS 5X PROTECTION II - ASUS LANGuard - Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DIGI+ VRM - 4+2+1 Phase digital power design - ASUS DRAM Overcurrent Protection: Enhanced DRAM overcurrent protection - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! Superb Performance M.2 onboard - The latest transfer technologies with up to 32Gb/s data transfer speeds SATA Express onboard - The latest transfer technologies with up to 16Gb/s datatransfer speeds ASUS Fan Xpert 3 - Featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS EPU - EPU PC Cleaner - Fast and easy way to get rid of unnecessary junk files UEFI BIOS - Most advanced options with fast response time USB 3.0 Boost - featuring speedy USB 3.0 transmission Gaming Scenario Audio Features - Audio that roars on the battlefield Media Streamer - Pipe music or movies from your PC to a smart TV, your entertainment goes wherever you go! - Media Streamer app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems ASUS Exclusive Features - ASUS Ai Charger - ASUS AI Suite 3 - ASUS Disk Unlocker featuring 3TB + HDD support EZ DIY Push Notice - Monitor your PC status with smart devices in real time UEFI BIOS EZ Mode - featuring friendly graphics user interface - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Quiet Thermal Solution Quiet Thermal Design: - ASUS Fan Xpert 3 - Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink solution BIOS 128Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD memory informat

Packaging
Package Contents	Accessories: 2 x Serial ATA 6.0Gb/s cables 1 x I/O Shield 1 x M.2 screw package 1 x Support DVD 1 x User's manual

Additional Information
First Listed on Newegg	July 28, 2021
