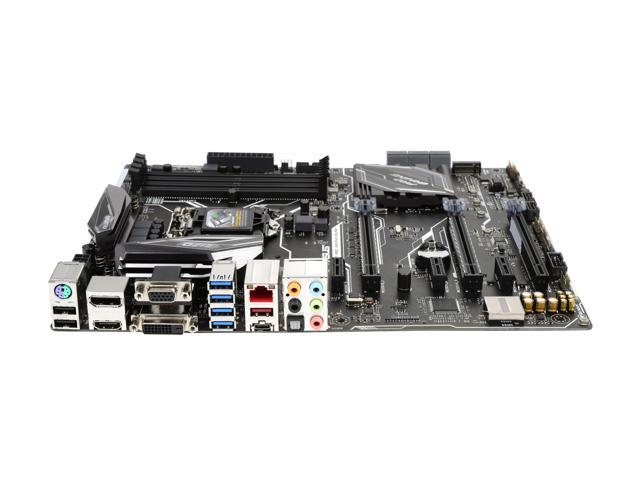

ASUS Z170 Pro Gaming/AURA LGA 1151 Intel Z170 HDMI SATA 6Gb/s USB 3.1 USB 3.0 ATX Motherboards - Intel

Used - Like New Product Type
See more "z170 motherboard"
In stock.
Ships from Hong Kong.
Most customers receive within 5-17 days.
  • Intel Z170
  • Core i7 / i5 / i3 (LGA1151)
  • DDR4 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3100(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2600(O.C.)/ 2400(O.C.)/ 2133
Specs

Learn more about the ASUS Z170 Pro Gaming/AURA

Model
Brand ASUS
Model Z170 Pro Gaming/AURA
Supported CPU
CPU Socket Type LGA 1151
CPU Type Core i7 / i5 / i3 (LGA1151)
Supported CPU Technologies Turbo Boost Technology 2.0
Chipsets
Chipset Intel Z170
Onboard Video
Onboard Video Chipset Integrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: HDMI/DVI/DVI-D/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Memory
Number of Memory Slots 4×288pin
Memory Standard DDR4 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3100(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2600(O.C.)/ 2400(O.C.)/ 2133
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
PCI Express x1 3 x PCIe 3.0/2.0 x1
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s
M.2 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*1

*1: When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset SupremeFX High Definition Audio CODEC
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 1 x PS/2 keyboard/mouse port
Video Ports 1 x DVI
1 x D-Sub
HDMI 1 x HDMI
RJ45 1 x RJ45
DisplayPort 1 x DisplayPort
USB 3.1 1 x USB 3.1 (red) Type-A
1 x USB 3.1 Type-C
USB 3.0 4 x USB 3.0
USB 1.1/2.0 2 x USB 2.0
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
Other Connectors 1 x COM port(s) connector(s)
1 x CPU Fan connector(s) (1 x 4-pin)
1 x CPU OPT Fan connector(s) (1 x 4-pin)
3 x Chassis Fan connector(s) (3 x 4-pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x ROG extension (ROG_EXT) header(s)
1 x 14-1 pin TPM connector
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Features
Features Multi-GPU Support:
Supports NVIDIA Quad-GPU SLI Technology
Supports NVIDIA 2-Way SLI Technology
Supports AMD Quad-GPU CrossFireX Technology
Supports AMD 3-Way CrossFireX Technology

Special Features:
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5:
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 3, and Turbo App
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
ASUS TPU:
- Auto Tuning
- TurboV
- GPU Boost
ASUS EPU:
- EPU
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger+
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.1 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 3
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics:
- 3D printing friendly
- AURA-RGB Lighting
Media Streamer
RAMCache

Operating System Support:
Windows 10, 64bit
Windows 8.1, 64bit
Windows 7, 32bit/64bit

BIOS:
128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability:
WfM 2.0, DMI 3.0, WOL by PME, PXE

Support Disc:
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
Packaging
Package Contents Accessories:
User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x pack of cable tie
1 x CPU installation tool
1 x Supporting DVD
1 x SLI bridge(s)
1 x 12 in 1 Cable Label (s)
1 x 3D printing mount package
