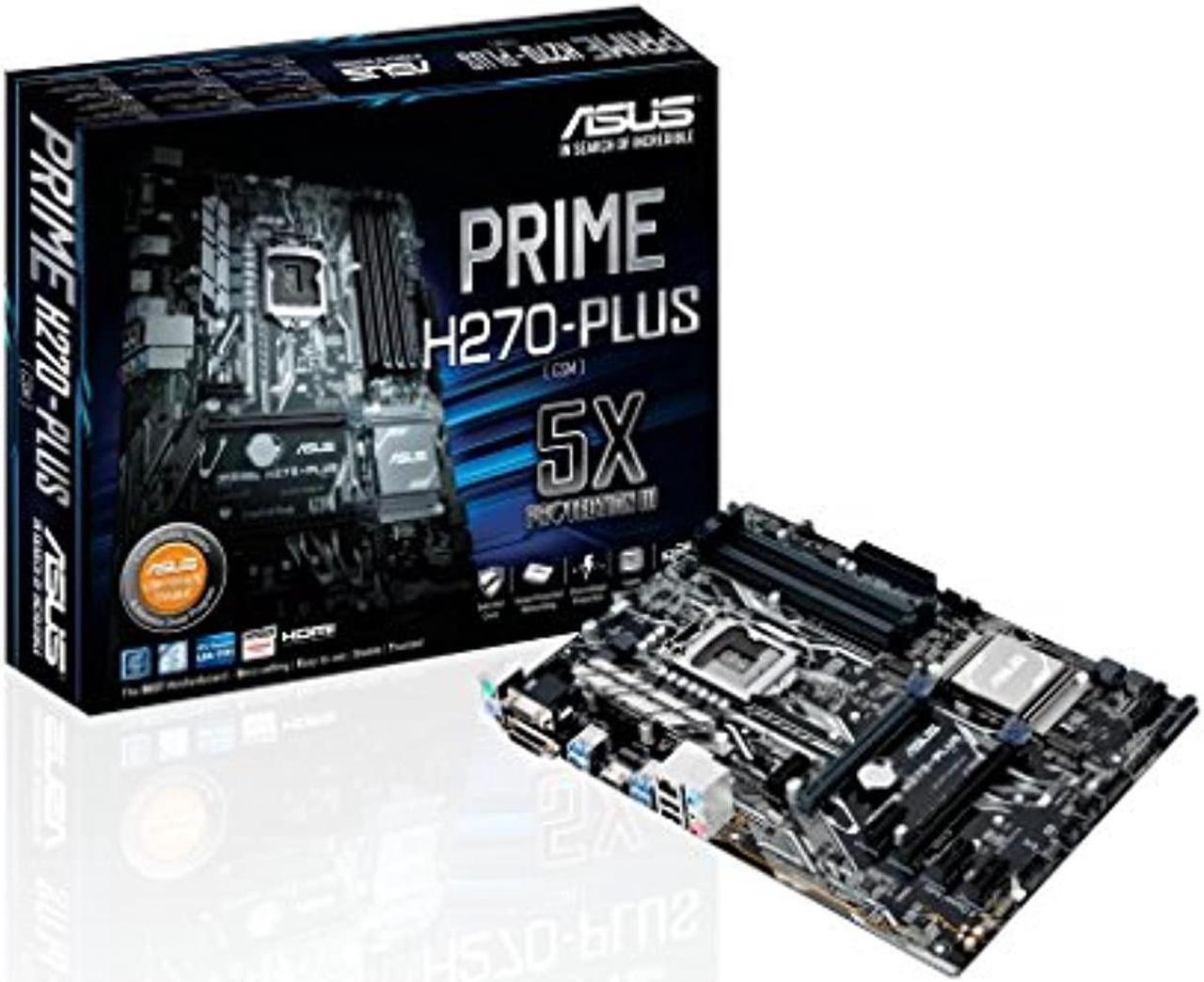

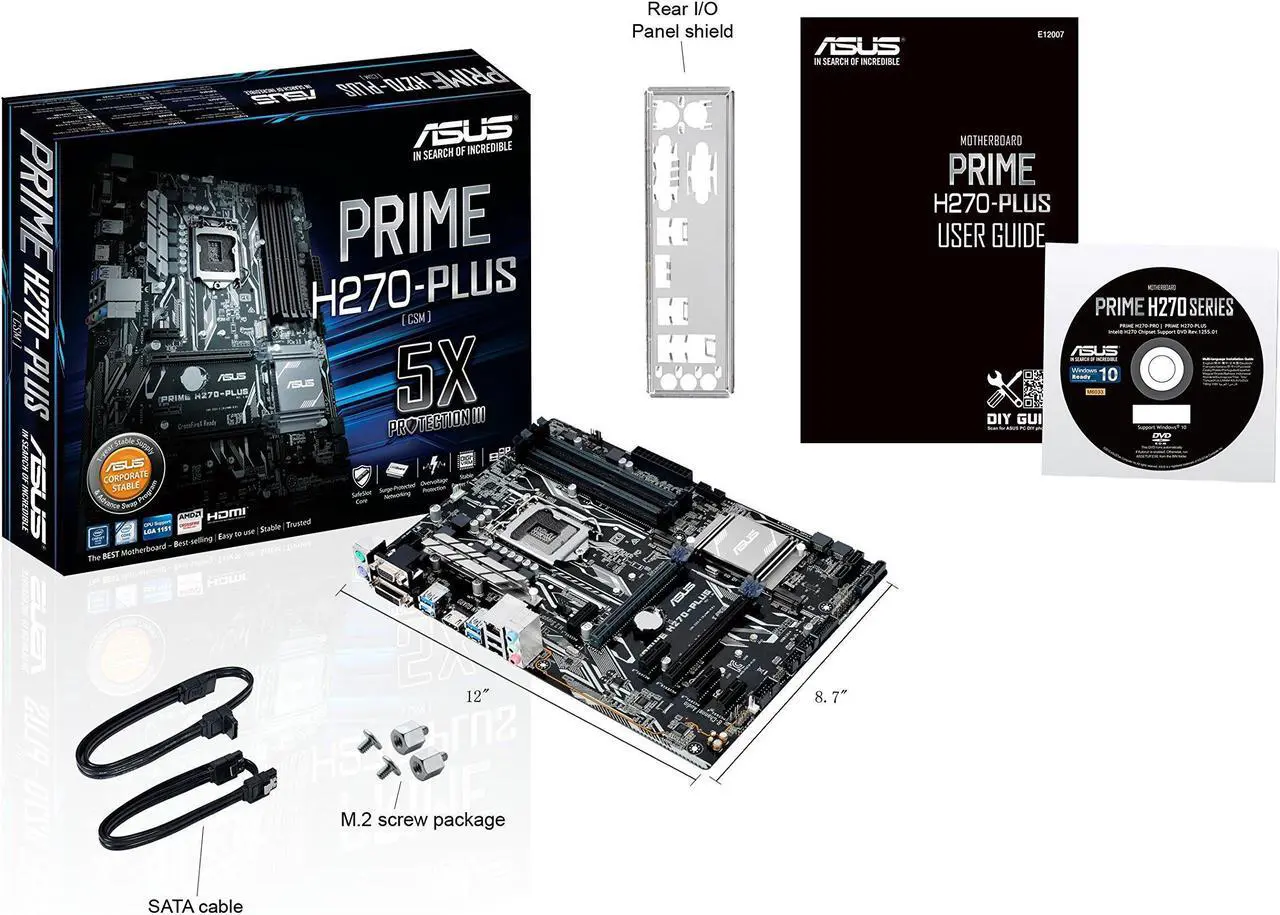

Main image of ASUS PRIME H270-PLUS/CSM LGA 1151 Intel H270 HDMI SATA 6Gb/s USB 3.1 ATX Motherboards - Intel

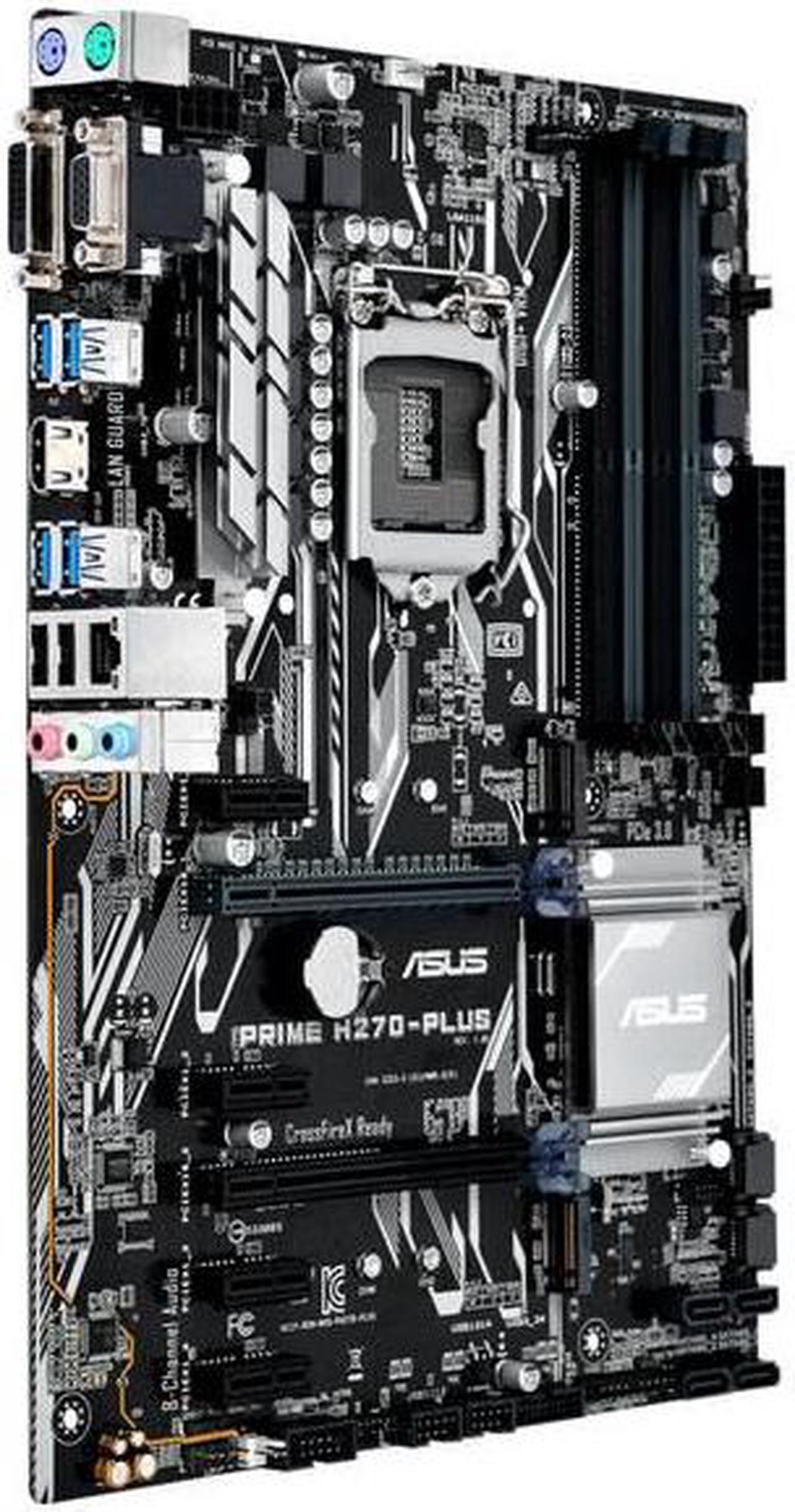

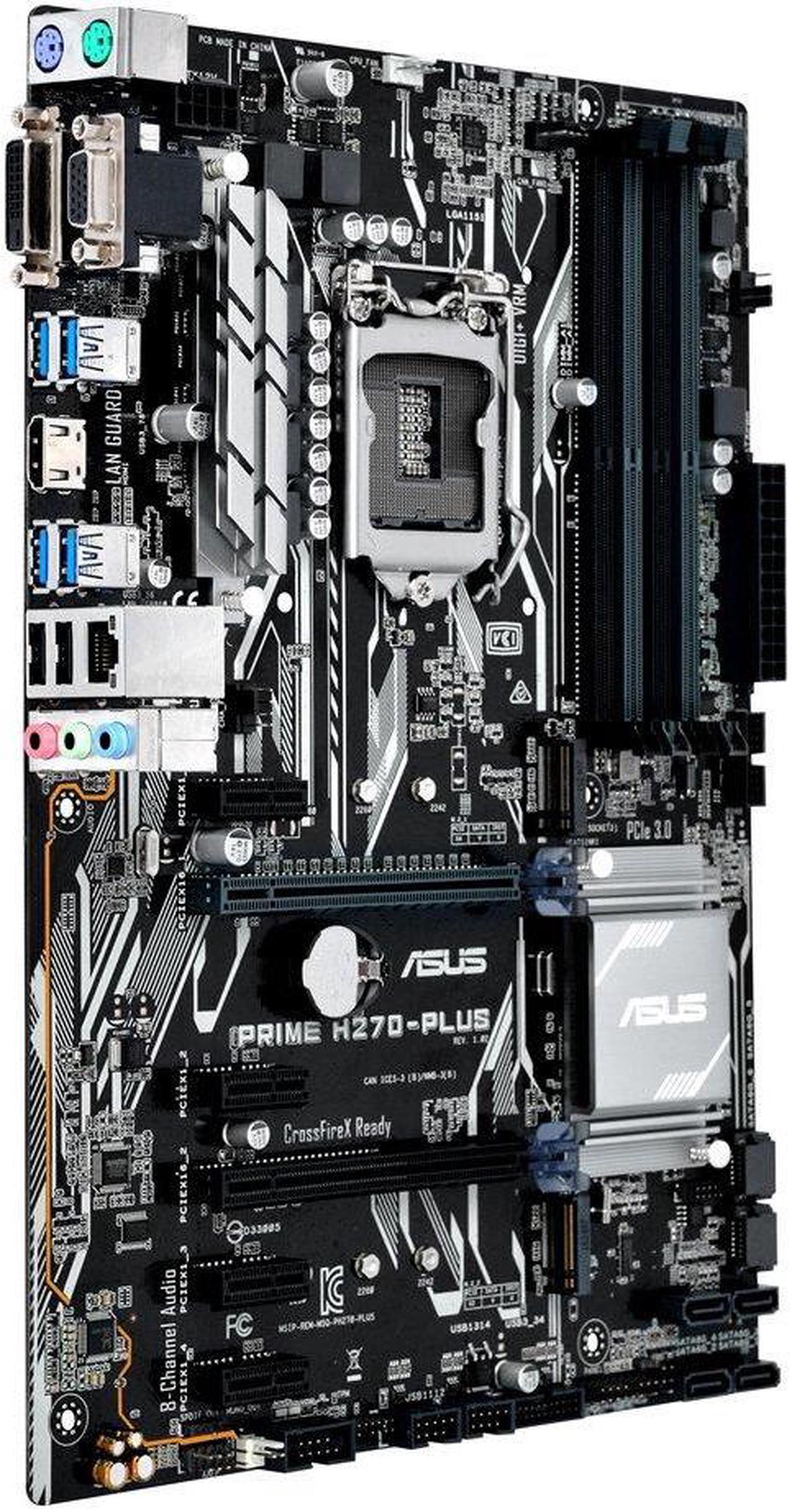

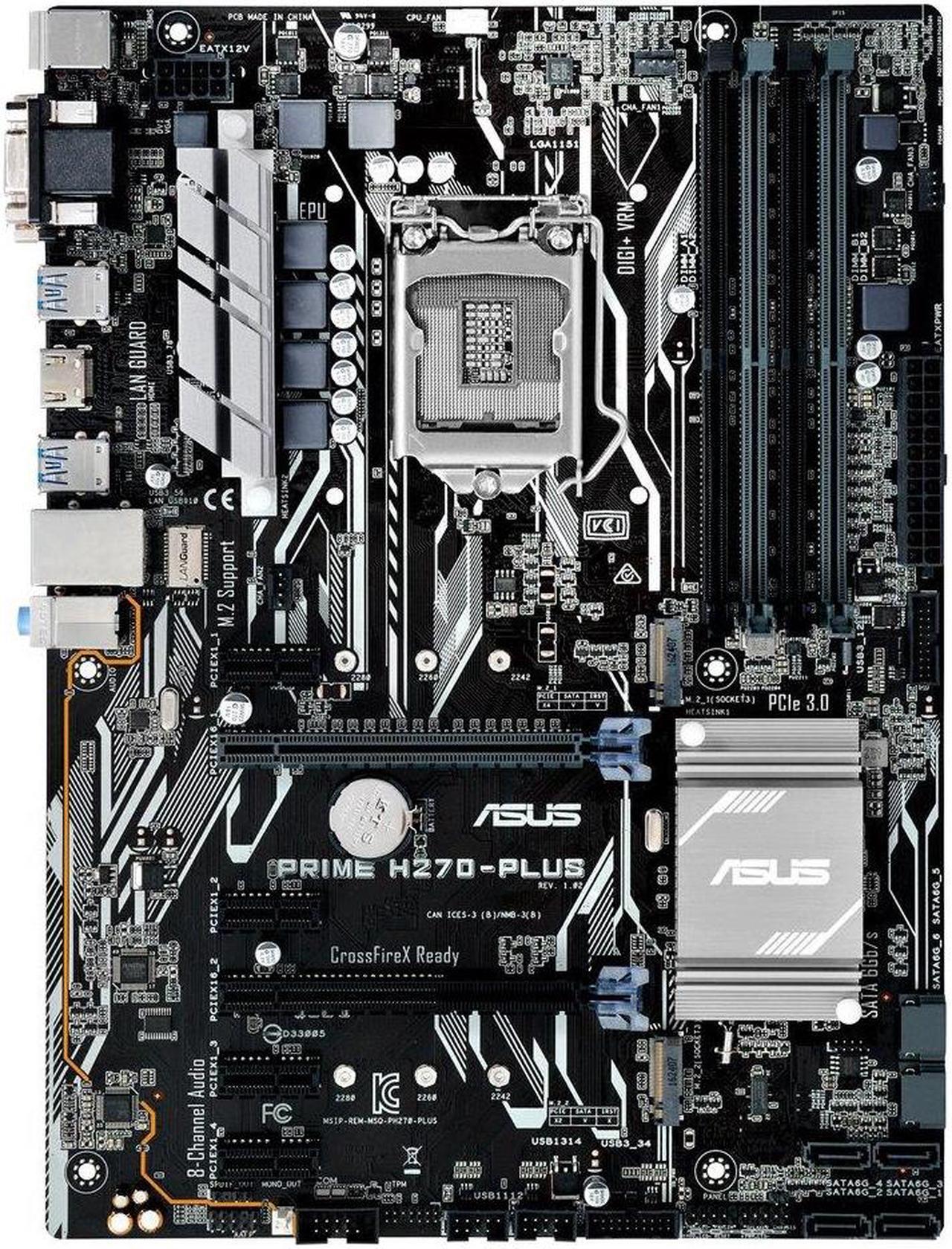

Alt view image 2 of 7 - ASUS PRIME H270-PLUS/CSM LGA 1151 Intel H270 HDMI SATA 6Gb/s USB 3.1 ATX Motherboards - Intel

Alt view image 3 of 7 - ASUS PRIME H270-PLUS/CSM LGA 1151 Intel H270 HDMI SATA 6Gb/s USB 3.1 ATX Motherboards - Intel

Alt view image 4 of 7 - ASUS PRIME H270-PLUS/CSM LGA 1151 Intel H270 HDMI SATA 6Gb/s USB 3.1 ATX Motherboards - Intel

Alt view image 5 of 7 - ASUS PRIME H270-PLUS/CSM LGA 1151 Intel H270 HDMI SATA 6Gb/s USB 3.1 ATX Motherboards - Intel

Alt view image 6 of 7 - ASUS PRIME H270-PLUS/CSM LGA 1151 Intel H270 HDMI SATA 6Gb/s USB 3.1 ATX Motherboards - Intel

Alt view image 7 of 7 - ASUS PRIME H270-PLUS/CSM LGA 1151 Intel H270 HDMI SATA 6Gb/s USB 3.1 ATX Motherboards - Intel

Shop All ASUS Products

ASUS PRIME H270-PLUS/CSM LGA 1151 Intel H270 HDMI SATA 6Gb/s USB 3.1 ATX Motherboards - Intel

Name: ASUS PRIME H270-PLUS/CSM LGA 1151 ATX Motherboards - Intel
Brand: ASUS
SKU: N82E16813132942
Rating: 4 (9 reviews)

(9) Write a Review

Intel H270
Intel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
* Not Compatible with Intel 8th Gen CPUs
DDR4 2400/ 2133
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel processors will run at the maximum transfer rate of DDR4 2133MHz.

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (9)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.

CPU Socket Type	LGA 1151
CPU Type	Intel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors * Not Compatible with Intel 8th Gen CPUs
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 2400/ 2133 * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * Due to Intel chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. ** Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel processors will run at the maximum transfer rate of DDR4 2133MHz.
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCIe 3.0/2.0 x16 1 x PCIe 3.0/2.0 x16 (@x4 mode)
PCI Express x1	4 x PCIe 3.0/2.0 x1

SATA 6Gb/s	6 x SATA 6Gb/s port(s), gray
M.2	1 x M.2 Socket 31, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 32, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)1 1 When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used. *2 When a device in SATA mode is installed on the M.2_2 socket, SATA_6 port cannot be used.
SATA RAID	0/1/5/10

Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

SHOP WITH CONFIDENCE

ASUS PRIME H270-PLUS/CSM LGA 1151 Intel H270 HDMI SATA 6Gb/s USB 3.1 ATX Motherboards - Intel

Learn more about the ASUS PRIME H270-PLUS/CSM

Customer Reviews of the ASUS PRIME H270-PLUS/CSM

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

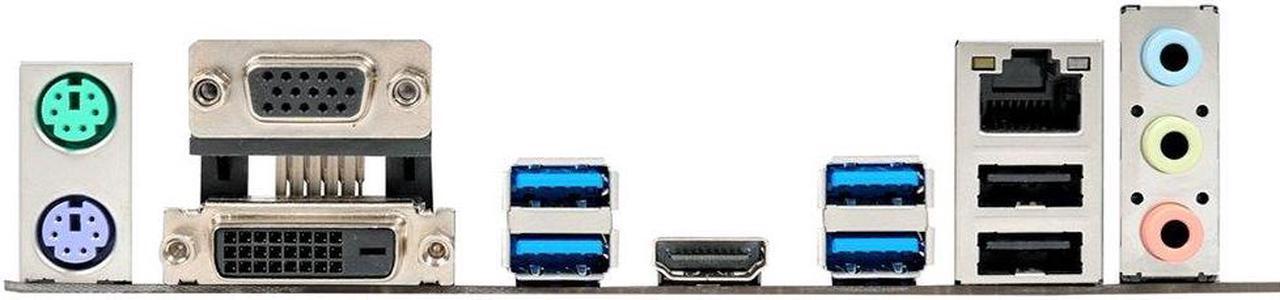

Back I/O Ports	1 x HDMI / 2 x PS/2 / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 2 Type-A
PS/2	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green)
Video Ports	1 x DVI-D 1 x D-Sub
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.1	4 x USB 3.1 Gen 1 (blue) Type-A
USB 1.1/2.0	2 x USB 2.0
Audio Ports	3 Ports

Onboard USB	2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x TPM header 1 x CPU Fan connector(s) (1 x 4-pin) 3 x Chassis Fan connector(s) (2 x 4-pin) 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Mono Out header

Form Factor	ATX
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s)

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps
