Main image of ASUS PRIME B250M-A LGA 1151 Intel B250 HDMI SATA 6Gb/s USB 3.1 USB 3.0 Micro ATX Intel Motherboard

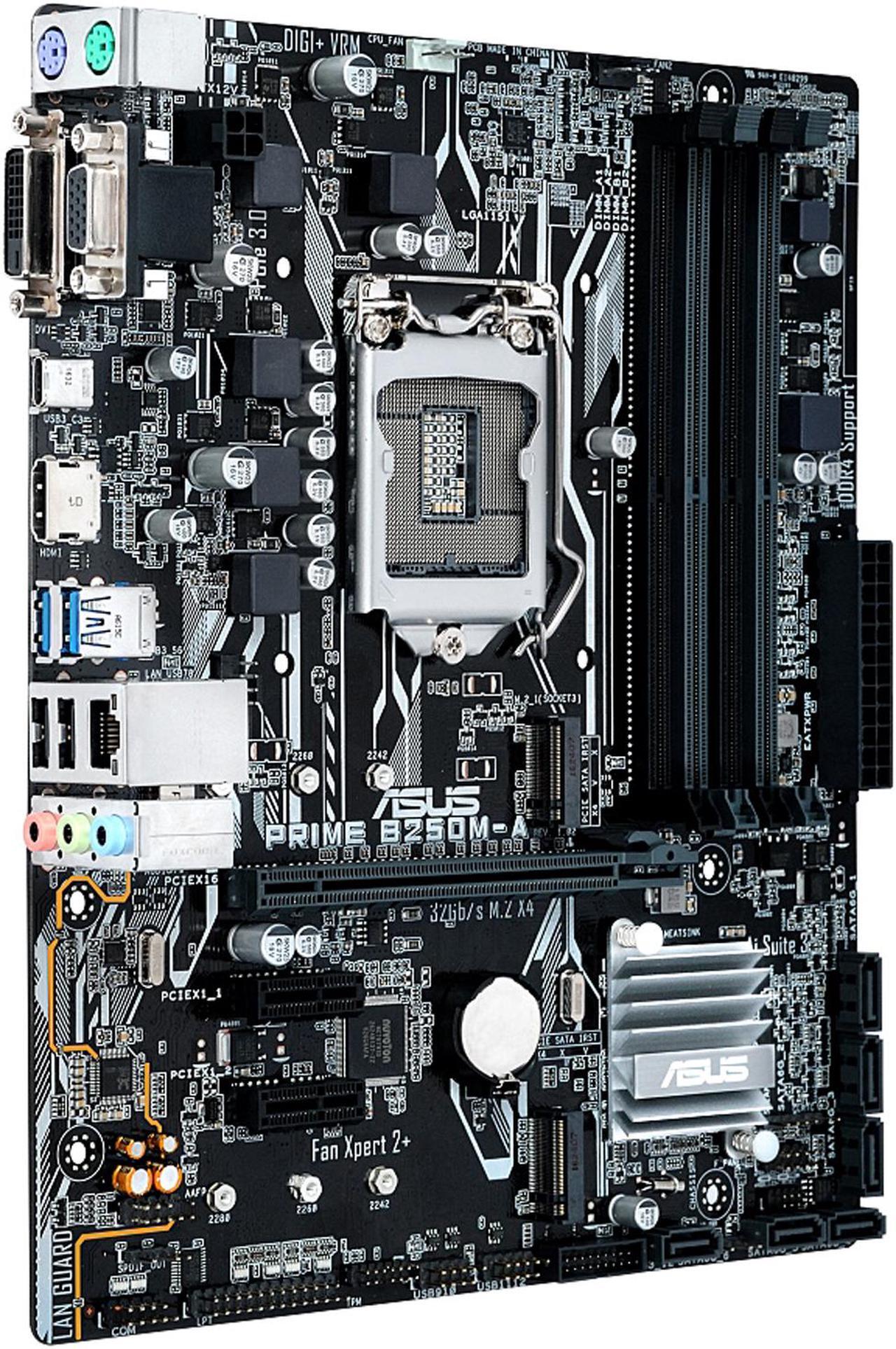

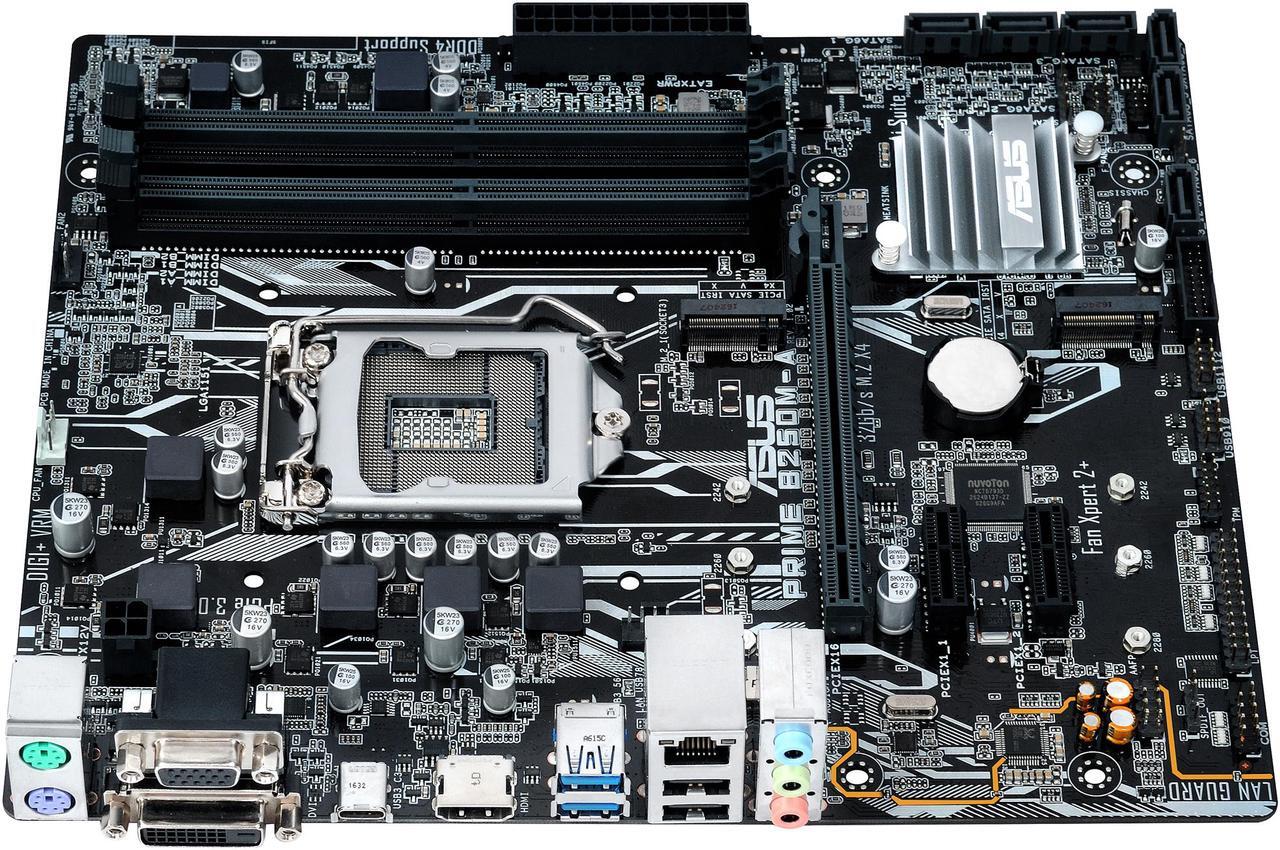

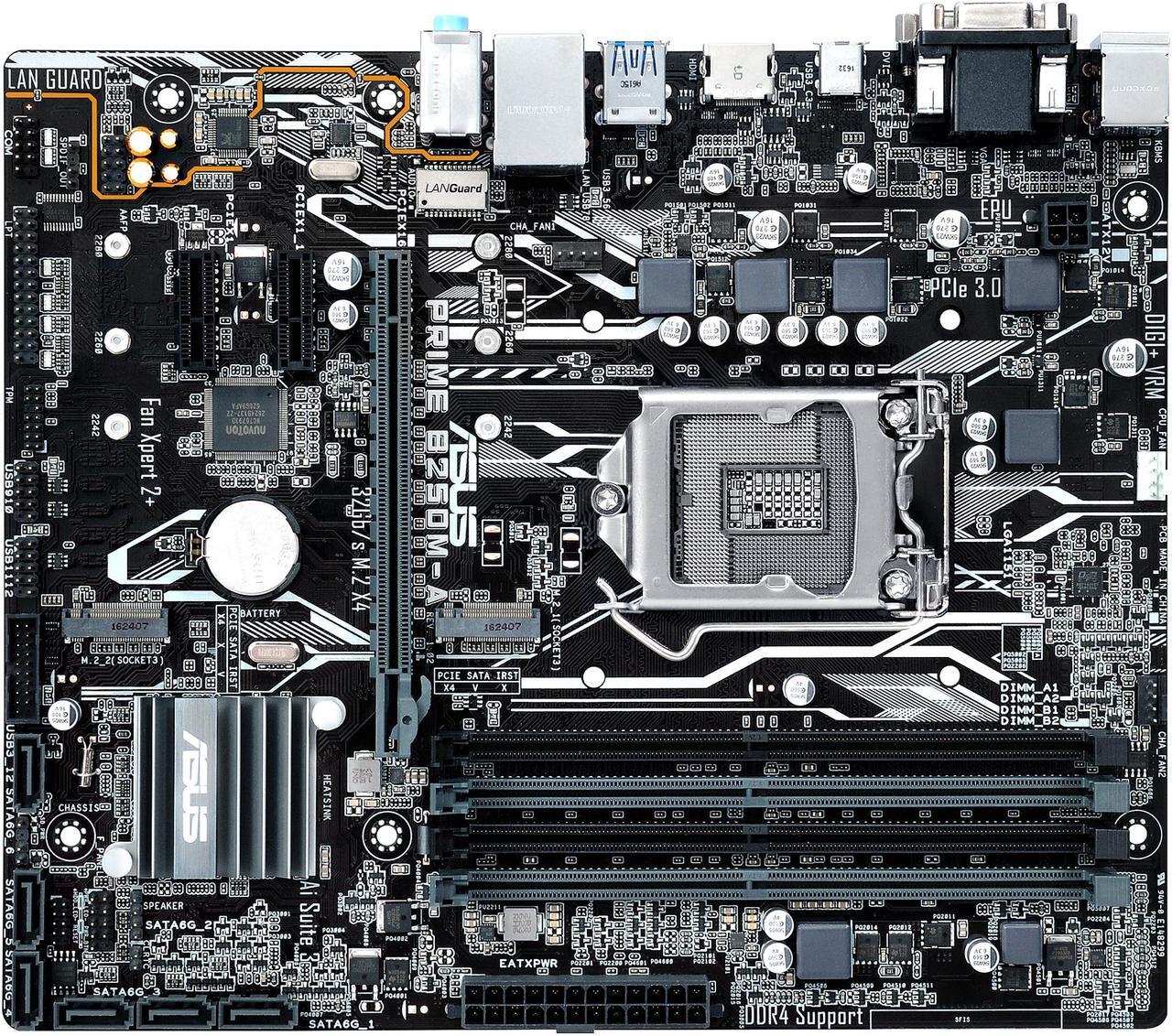

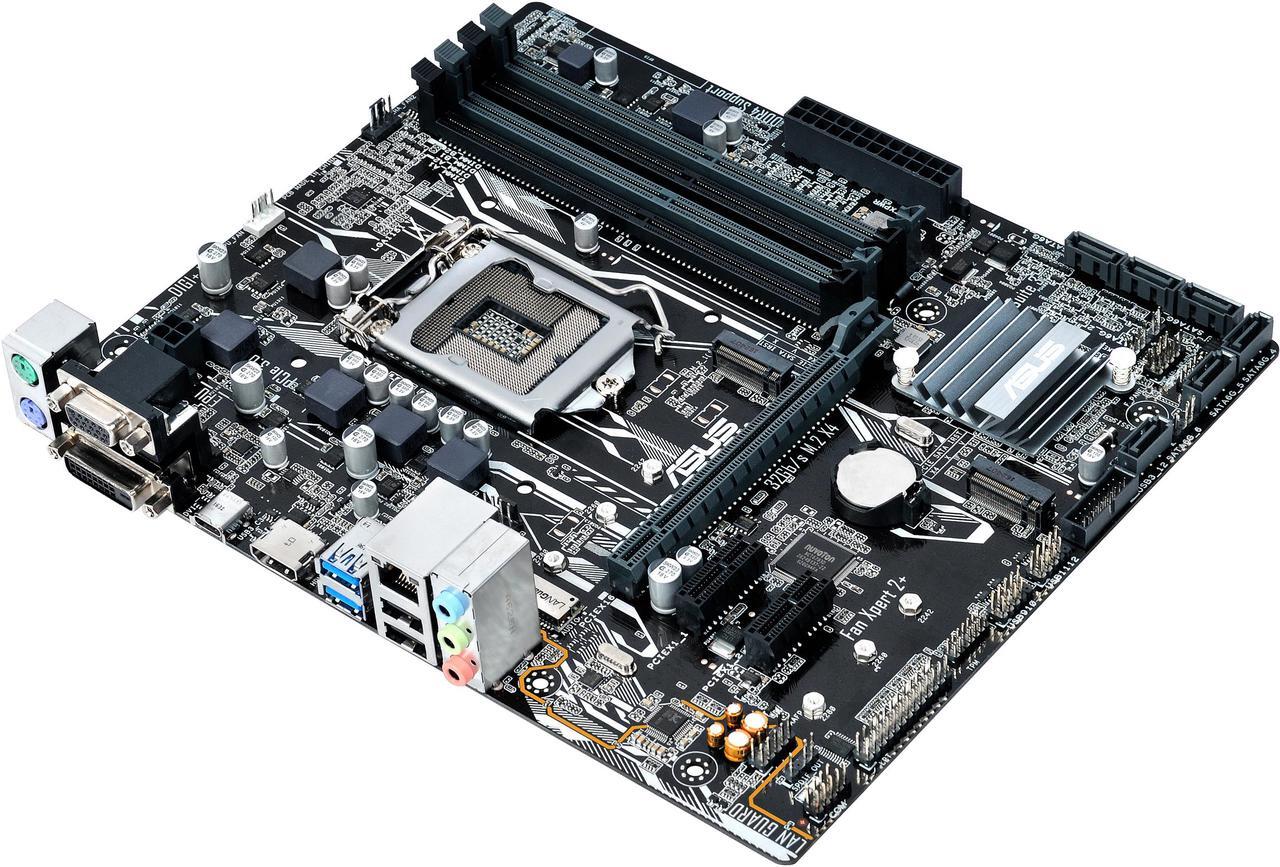

Alt view image 2 of 5 - ASUS PRIME B250M-A LGA 1151 Intel B250 HDMI SATA 6Gb/s USB 3.1 USB 3.0 Micro ATX Intel Motherboard

Alt view image 3 of 5 - ASUS PRIME B250M-A LGA 1151 Intel B250 HDMI SATA 6Gb/s USB 3.1 USB 3.0 Micro ATX Intel Motherboard

Alt view image 4 of 5 - ASUS PRIME B250M-A LGA 1151 Intel B250 HDMI SATA 6Gb/s USB 3.1 USB 3.0 Micro ATX Intel Motherboard

Alt view image 5 of 5 - ASUS PRIME B250M-A LGA 1151 Intel B250 HDMI SATA 6Gb/s USB 3.1 USB 3.0 Micro ATX Intel Motherboard

Shop All ASUS Products

ASUS PRIME B250M-A LGA 1151 Intel B250 HDMI SATA 6Gb/s USB 3.1 USB 3.0 Micro ATX Intel Motherboard

Name: ASUS PRIME B250M-A LGA 1151 Micro ATX Intel Motherboard
Brand: ASUS
SKU: N82E16813132947
Rating: 4 (15 reviews)

(15) Write a Review

Intel B250
Intel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
* Not Compatible with Intel 8th Gen CPUs
* Refer to www.asus.com for CPU support list
DDR4 2400/ 2133
* Due to Intel chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
* Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel processors will run at the maximum transfer rate of DDR4 2133MHz.
** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (15)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.

CPU Socket Type	LGA 1151
CPU Type	Intel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors * Not Compatible with Intel 8th Gen CPUs * Refer to www.asus.com for CPU support list
Supported CPU Technologies	Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 2400/ 2133 * Due to Intel chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. * Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel processors will run at the maximum transfer rate of DDR4 2133MHz. ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
PCI Express x1	2 x PCIe 3.0/2.0 x1

SATA 6Gb/s	6 x SATA 6Gb/s
M.2	Intel B250 Chipset: 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)1 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)2 Intel Optane Memory Ready 3 1 When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used. 2 Only M.2_2 socket can support Intel Optane Memory. 3 Intel Optane Technology is only supported when using 7th Generation Intel processors. Before using Intel Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.

Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

ASUS PRIME B250M-A LGA 1151 Intel B250 HDMI SATA 6Gb/s USB 3.1 USB 3.0 Micro ATX Intel Motherboard

Learn more about the ASUS PRIME B250M-A

Customer Reviews of the ASUS PRIME B250M-A

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

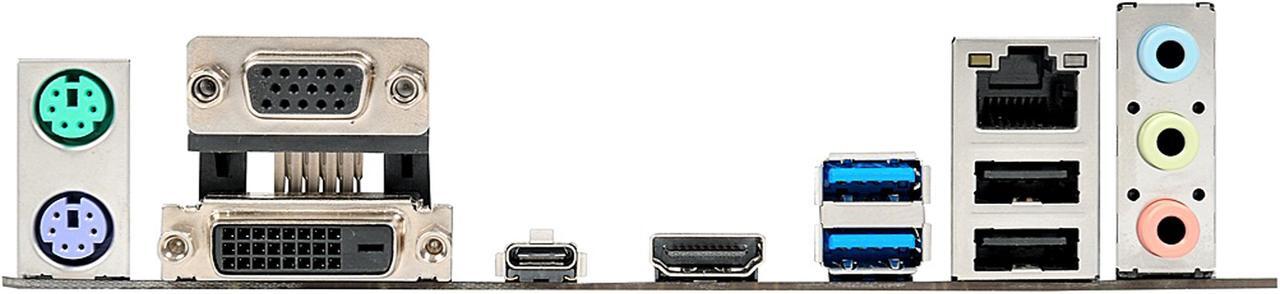

PS/2	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green)
Video Ports	1 x DVI-D 1 x D-Sub
HDMI	1 x HDMI
RJ45	1 x RJ45
DisplayPort	1 x DisplayPort
USB 3.1	2 x USB 3.1 Gen 1 (blue) Type-A
USB 3.0	1 x USB 5Gb/s port(s) Type-C ( support 3A power output ) 2 x USB 3.0 (blue) Type-A
USB 1.1/2.0	2 x USB 2.0
USB Type-C	1 x USB 5Gb/s port(s) Type-C (support 3A power output)
S/PDIF Out	1 x Optical
Audio Ports	3 Ports

Onboard USB	1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x TPM header 1 x LPT header 1 x COM port(s) connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 2 x Chassis Fan connector(s) (2 x 4-pin) 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x Chassis Intrusion connector(s) 1 x System panel connector

Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 8.1"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s)

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps
