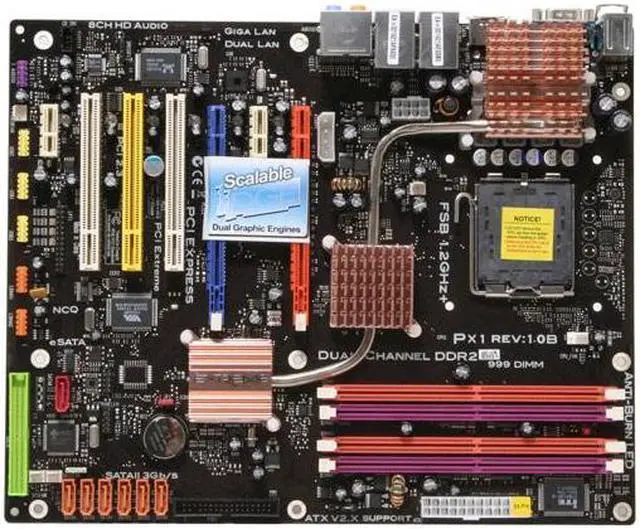

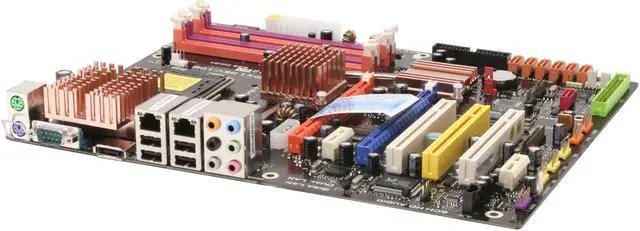

ECS PX1 (1.0B) LGA 775 Intel P965 Express ATX Intel Motherboard

(20) Write a Review
  • Intel P965 Express
  • Core 2 Extreme / Core 2 Duo / Pentium D / Celeron
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (20)
avatar

Any questions? Our AI mode will help you find out quickly.

Try me now

Learn more about the ECS (EliteGroup) PX1 (1.0B)

Model
Brand ECS
Model PX1 (1.0B)
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Extreme / Core 2 Duo / Pentium D / Celeron
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset Intel P965 Express
South Bridge Intel ICH8DH
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 2 (x16 mode and x4 mode)
PCI Express x1 2 (x1 or diabled mode)
PCI Slots 3 x PCI Slots
Storage Devices
SATA RAID 0/1/0+1/5
Additional RAID Controller JMB363
Onboard Audio
Audio Chipset Realtek ALC885
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Intel 82566DC
Second LAN Chipset Realtek 8110S
Max LAN Speed 2 x 1Gbps

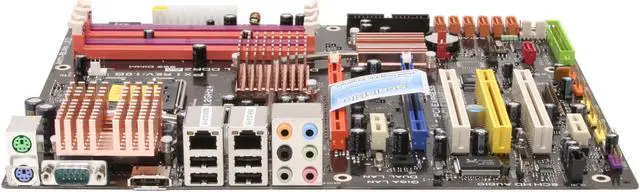

Rear Panel Ports
Back I/O Ports 1 x eSATA 3GB/S / 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
COM 1
USB 1.1/2.0 4 x USB 2.0
eSATA 1 x eSATA 3Gb/s
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 connectors support 6 ports
Onboard 1394 2 x 1394a connectors support 2 ports
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features Notice: Only DDR2-800 memory supporting JEDEC approved 1.8V operation with timings of 5-5-5 or 6-6-6 is supported on Intel Desktop Boards based on Intel 965 Express Chipsets.

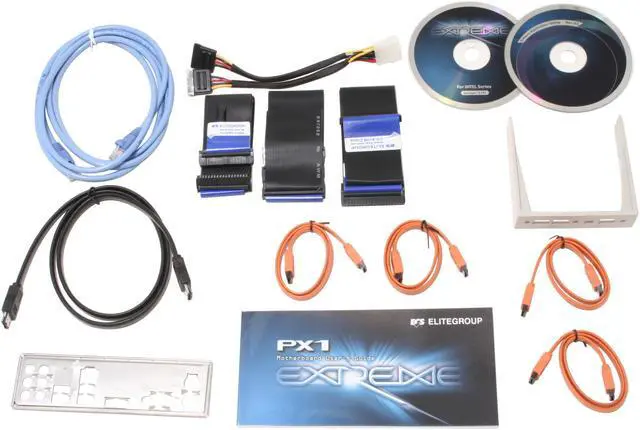

Packaging
Package Contents PX1 (1.0B)
Additional Information
First Listed on Newegg December 15, 2006

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 2 years
